PCAN-Cable M12
Part No.: MPPK-IPEK-003016
D-Sub 母接頭轉 M12 圓形接頭 CAN 轉接線
※ 標高電子為德國 PEAK-System 於台灣之唯一授權代理商。
產品介紹
Description
M12 圓形接頭具有堅固耐用的特性, 並能提供更高的環境防護能力, 因此廣泛應用於嚴苛環境下的 CAN Bus 連接。
National Marine Electronics Association 制定的 NMEA 2000® 標準, 規範船舶上透過 CAN 進行的廠商獨立通訊, 並指定使用特定規格的 M12 接頭。

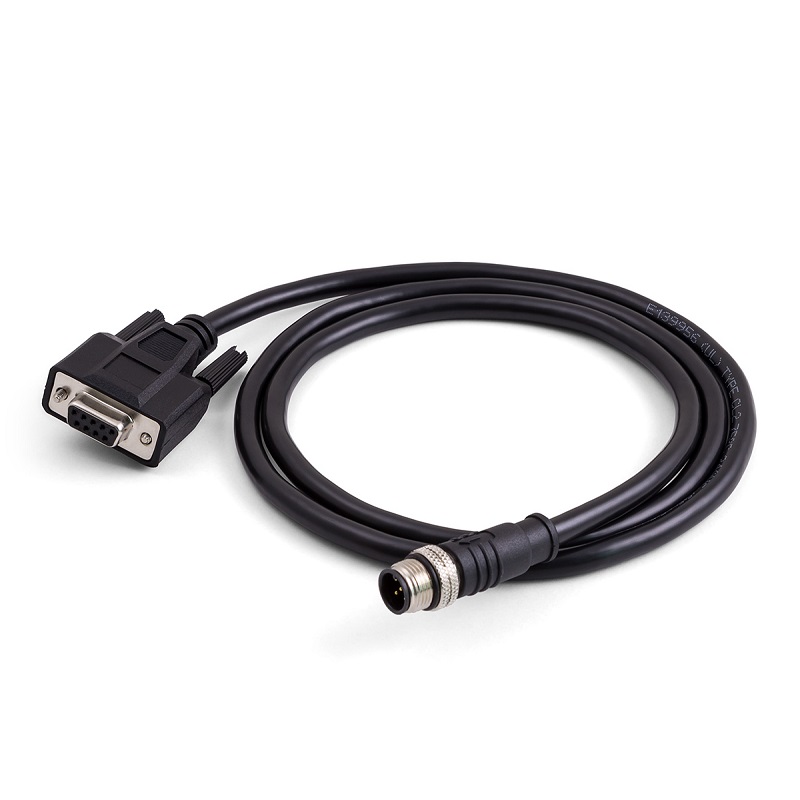

PCAN-Cable M12 可將 D-Sub 母接頭的 CAN 訊號線轉接至 M12 圓形接頭, 並依據 NMEA 2000® 規範增加 Shield 與電源線, 方便透過 PEAK-System CAN 介面存取 CAN 訊號。
Specifications
- 9-pin D-Sub 母接頭轉 5-pin M12 圓形接頭 (符合 CiA® 106 與 NMEA 2000® 標準)
- 線長: 1.0 m
- 不含終端電阻
- 適用於 CAN FD Bus
- 適用於 NMEA 2000® 通訊連接與電源供應

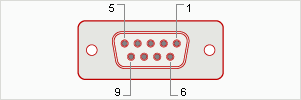

Pin assignment D-Sub
.gif)
2: CAN-L / NET-L
3: GND / NET-C
6: Shield
7: CAN-H / NET-H
9: VBAT +12 V / NET-S

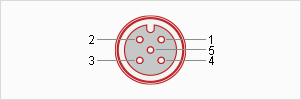

Pin assignment M12
1: Shield
2: VBAT +12 V / NET-S
3: GND / NET-C
4: CAN-H / NET-H
5: CAN-L / NET-L
Scope of Supply
- IPEK-003016: PCAN-Cable M12
可依需求提供其他線長及客製化線材規格, 請洽詢。
