BABY-LIN-3-Single
Part No.: MPLPS-BABY-LIN-3-Single
LIN-Bus simulation device with USB interface
產品介紹
Description
The Baby-LIN-3-Single is our most compact system for controlling a LIN-BUS via USB. The PC can work as a LIN monitor, LIN master or LIN slave. The system also supports operation in stand-alone mode and enables the execution of continuous running sequences without a PC. In addition, the galvanic isolation ensures interference-free data transmission.
The delivery of a Baby-LIN-3-Single system includes the following components:
- Baby-LIN-3-Single device
- USB-C 2.0 cable, 1m, type A to type C
- A 3-pole plug with screw connection (MC 1,5/ 3-ST-3,81)
- Download licence for LINWorks suite (includes LINWorks PC software, sample files and documentation)
Performance Overview
Application areas
- Extends PC and Raspberry Pi with a LIN interface
- Residual bus simulations with PC front end (LINWorks or own application)
- Supports stand-alone operation without PC, e.g. for endurance runs
- Read and write frame data in real time
- Monitoring of a running LIN bus for viewing or recording LIN frames.
- Data logging functions up to 100% bus workload
Compatibility and system requirements
- Windows 10/11 (32/64 Bit)
- Interface to the DLL library for:
- Windows (x86 & x64), PC based Linux (x86 & x64), ARM based Linux (ARM32 & ARM64)
- Native programming for C/C++ as well as via wrappers in .NET languages, Python, VB6 and LabView are possible
Technical function
- Supports LIN bus versions 1.2, 1.3, 2.0, 2.1 and 2.2
- Galvanically isolated LIN bus interface
- Simulation of LIN master and LIN slave nodes possible
- DTL (Diagnostic Transport Layer) support
- LIN bus controllable via DLL from own programs
- On-board voltages from 8 - 28V
Technical Specifications
Device
- Power supply: 8-26 VDC
- Power supply via 3 pin connector (MC 1,5/ 3-ST-3,81) or male SUBD9 connector
- Galvanic isolation of the communication interfaces and USB plug side
- CPU: ARM Cortex-M7, 480 MHz
- Memory: 1 MB RAM
Interface: USB Device
- USB 2.0 high-speed (480Mbit/s) interface
- Connection via USB-C plug
Interface: LIN
- 1 LIN-Bus interface available
- 1 Red/green LED (LED1) to show state of the LIN-Bus and the supply voltage
- LIN-Bus connection via 3 pin connector (MCVR 1,5/ 3-ST-3,81) or SUB-D9 connector
- LIN-Bus supply voltage: 8-26 VDC
- LIN-Bus baud rate: up to 115200 Baud (Support of protocols outside of the LIN specification)
- Supported LIN versions: V1.2, V1.3,...V2.2
- Supported LIN related protocols: Cooling and SAE J2602
- Maximum signal cable length for LIN-Bus: 30 m
Case:
- Degree of protection: IP20
- Operating temperature: -20°- +80°Celsius
- Weight: 90 g

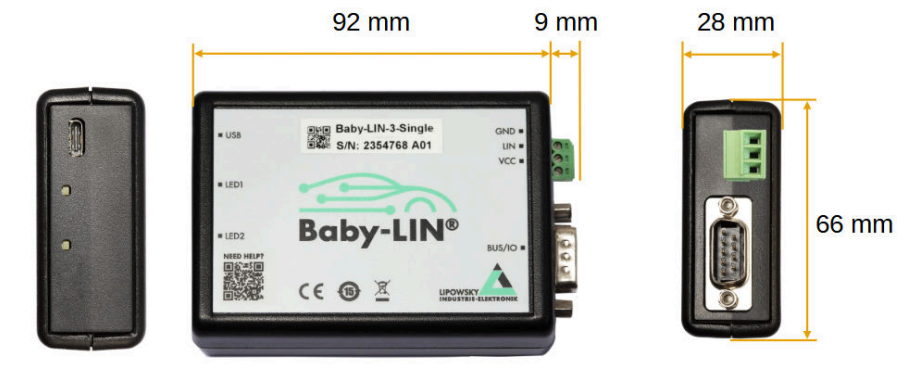

- Case dimensions [mm]: 92 x 66 x 28 (L x W x H), external connectors not included.
Ordering Information
- Baby-LIN-3-Single (8001022) - LIN-Bus simulation device with USB interface.
