DB9-DEUTSCH 9-PIN CABLE (TYPE 2 J1939, CAT)

Do you need to log J1939/FMS data from a heavy duty vehicle (truck, bus, tractors, ...)?

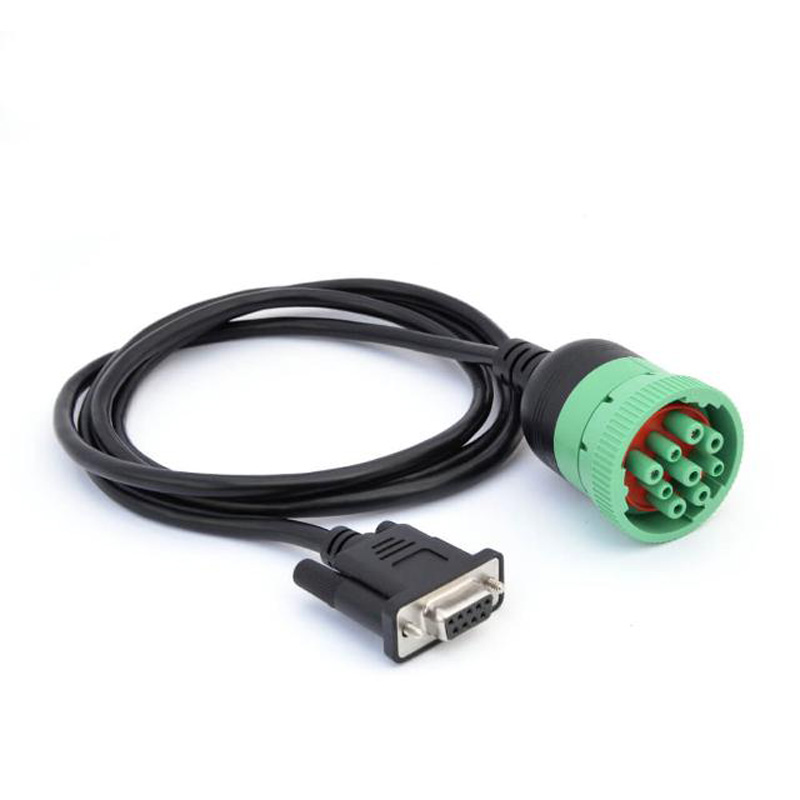

This 1.5 meter DB9 to deutsch 9-pin adapter fits most heavy duty vehicles and lets you easily connect your CANedge/CLX000 CAN logger to start recording J1939 data.

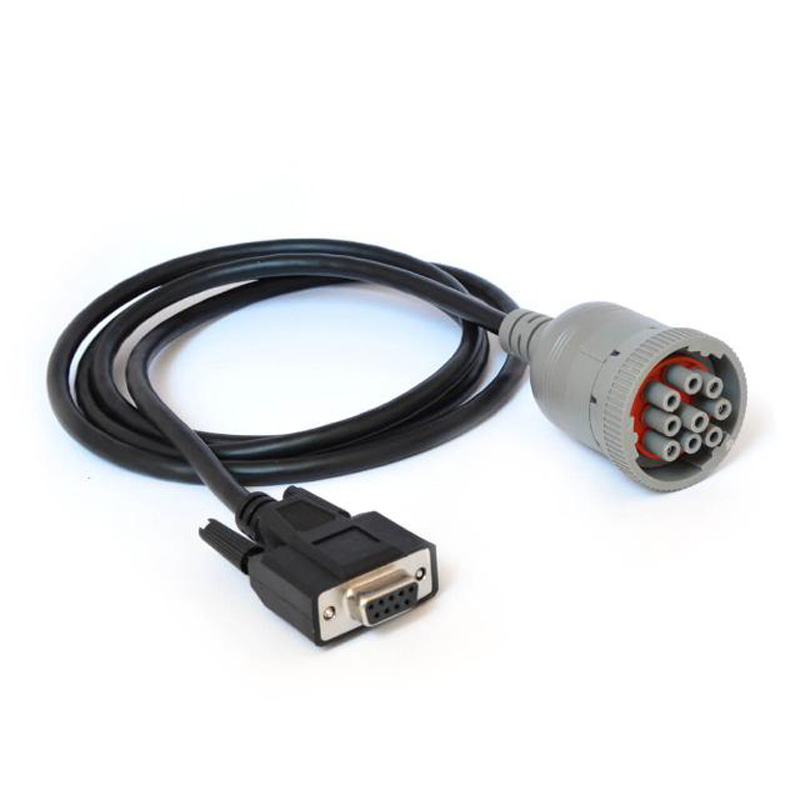

We offer two variants: A standard J1939 Type 2 adapter cable, used in most heavy duty vehicles - and a CAT adapter cable, used in many Caterpillar vehicles & engines.

Main Features

	Heavy Duty fits most trucks, buses & other heavy duty vehicles
	Standard DB9 fits our CAN loggers & all adapters (CiA 303-1 DB9 pinouts)
	Overmolded quality overmold ensures top flexibility & durability
	Solid Cables rugged quality 1.5m cable with 22 AWG (0.5 mm2) thickness
	Type II type II connector is compatible with both old/new vehicles
	1Y Warranty we offer a 1-year warranty on all our products

About The J1939-DB9 Adapter Cable

What can you use it for? The DB9-J1939 adapter cable is suited for use in most heavy duty vehicles - incl. trucks, transit buses, excavators, construction machinery and more. The cable lets you connect your CANedge/CLX000 CAN logger directly to the CAN bus with ease.

How to install it? You simply locate the J1939 9-pin connector in your heavy duty vehicle. Typically this will be directly visible in your cabin - though in some cases, you'll need to move a panel or unscrew a protection plate to reveal it.

Converting J1939 raw data When you've recorded raw J1939 data, you'll want to convert it to human-readable form. To do so, you can use our free CANvas software and the built-in FMS database to get started. This provides you with a small set of J1939 parameter conversion rules.

When Do You Need The DB9-J1939 Adapter?

Below are two use cases examples where the DB9-J1939 adapter is useful:

Heavy Duty Fleet Telematics

Need to log J1939 data from a truck fleet?

In heavy duty vehicle fleets, the simplest way to record J1939 data with your CAN logger is to connect it directly to the CAN bus via a DB9-J1939 adapter. This way, you'll automatically start logging all broadcasted raw J1939 data from the vehicle - allowing you to e.g. set up telematics solutions in no time. The CANedge/CLX000 supports Silent Mode configuration, ensuring the device does not affect the vehicle CAN bus in any way.

Transit Bus Standalone Data Logging

Technical Specifications

DB9-J1939 Adapter Pinout

DB9-CAT Adapter Pinout
