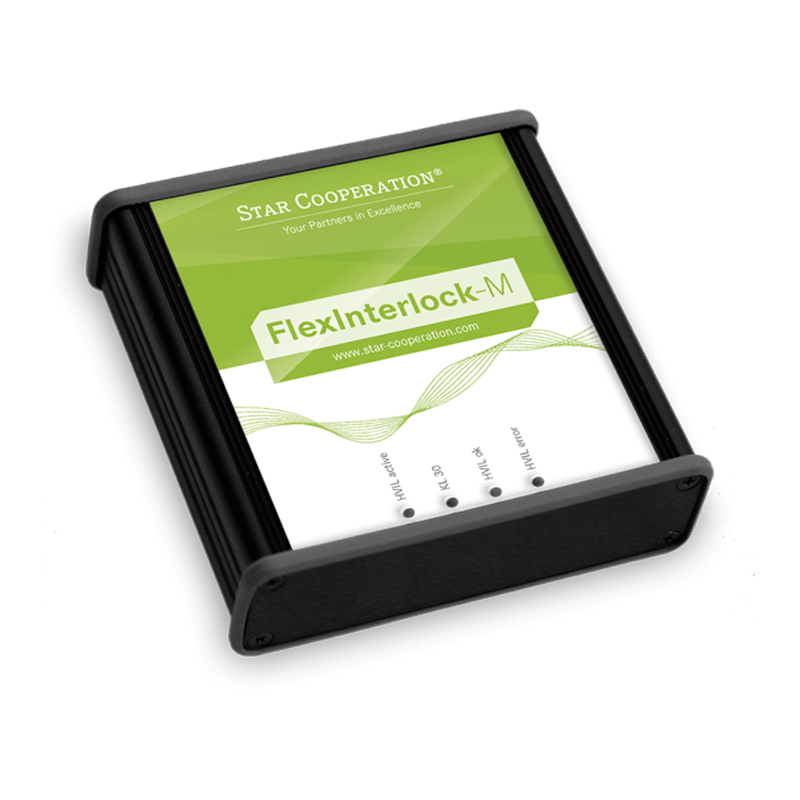

FlexInterlock-M

Part No.: MPSC-FlexInterlock-M
FlexInterlock-M Is a module for the use in test benches which emulates an HV interlock's functionality according to an HV battery by generating and evaluating an HV interlock signal.

產品介紹

Description


Product Information

FlexInterlock-M Is a module for the use in test benches which emulates an HV interlock's functionality according to an HV battery by generating and evaluating an HV interlock signal. Several redundant switch contacts and LEDs are provided to signalize whether the HV interlock was or was not detected.

Via a push-pull output stage, the generator module produces a PWM signal with a frequency of 88 Hz, a duty cycle of 50 % and a voltage spike of 0 V to 12 V (KL30). The hereby resulting alternating signal current has a value of 20mA (10mA or 30mA available on demand). The module has two potential-free switching contacs and two digital high-side-switching outputs for signaling the interlock status. In addition, two redundant semiconductor relays are shored which interject the interlock if the device is not powered.


Advantages

  • HV interlock generation for test benches

  • Integrated evaluation unit for interlock

  • redundant switch contacts

Characteristics

  • Emulation of an HV interlock's functionality for the use in test benches

  • Generation of an interlock signal (signal current 20 mA)

  • Several redundant switch contacts and LEDs to signalize the interlock status

  • ​If desired, the interlock generator can be switched on and off via a KL.15-Signal.

Fields of Application

  • Test benches/hardware in-the-loop

  • Error diagnostics in HV interlock circuits

  • End-of-line tests

  • Prototypical HV components

Product-Specific Versions

  • On demand: 10 mA/30 mA interlock signal current

  • Alternatively: available version only as interlock signal generator (Order number 70007486 without evaluation unit)

Accessories (Optional)

  • On demand: Connector cable with customer-specific plug connectors

Delivery Package

  • FlexInterlock-M

  • Connector cable (MQS on banana jacks)

  • Manual

Technical Details


  FlexInterlock-M
Supply Voltage +9 VDC to +16 VDC
Supply Current 150 mA (max.)
Operating Temperature 0°C to 75°C
Frequency Interlock Signal 88 Hz (+/- 2%)
Duty Cycle Interlock Signal 50 % (+/- 2%)
Flanks Interlock Signal 0,01 V/µs to 0,1 V/µs
Signal Current See versions
Casing/Protection Class 107 x 109 x 34 mm / IP41
Weight app. 250 g

Capacity Switch Contacts


  FlexInterlock-M
High Side Switch 36 V (absolute maximum)
High Side Switch 200 mA (absolute maximum)*
Potential-free Switch Contacts 45 V (absolute maximum)
Potential-free Switch Contacts 50 mA*
*safeguarded through resettable semiconductor fuse
