Description

Product Information

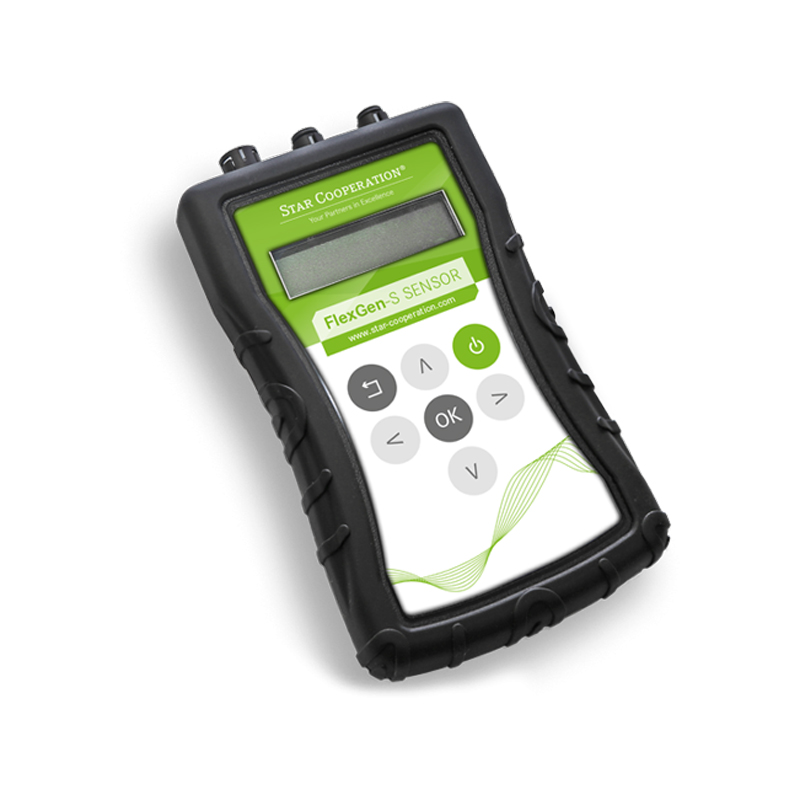

The FlexGen-S SENSOR is constructed flexibly in order to solve varying sensor/actuator technology tasks. Usually, sensors need a control unit for visualizing, processing and supplying. After customer-specific programming, you can quickly test the battery status e.g. for a dismounted HB battery including control unit and read the cell voltage via CAN with the FlexGen-S SENSOR.

In its standard configuration, the FlexGen-S SENSOR can be used for example in a motor test bench. There, it enables you to quickly and comfortable check the oil level sensor function and to justify or visualize the measured values without further periphery.


Advantages

• Autonomously flexibly usable handheld device

• Easy functional use

• Sensor read-out, supply and control

• Display of sensor signal as analog measuring signal

• Hardware interfaces: CAN, LIN, SENT, PWM, analog

Fields of Application

• Test bench controls of liquid level sensors

• Quality test of sensors prior to mounting

• Aggregate preparation

• Plausibility tests of a sensor value

• Targeted sensor value alteration subsequently to error verification

• Validation of HV batteries and 18 V batteries via connection to BMS

Facts & Figures

The user controls the battery-operated handheld via a membrane keypad. After startup, three sensor sizes can be displayed. Here, the device can supply the sensor with a supply voltage of 5VDC or 12 VDC.

• ​Output of 2 sensor values as analog measuring signal

• Control output: 2x analog

• LC display: 3 lines x 16 characters

• Hardware interfaces: CAN, LIN, SENT, PWM (SW optional)

• Automatic shut-down to save energy

Scope of Delivery

• FlexGen-S SENSOR (device)

• Accumulators

• Holster

• Sensor connector cable

• 230V switching power supply

Services

We are happy to consult you on this products, its fields of application and optional customer-specific adjustment possibilities.


Technical Details

Electrical Characeristics

Physical characteristics

Ambient Conditions
