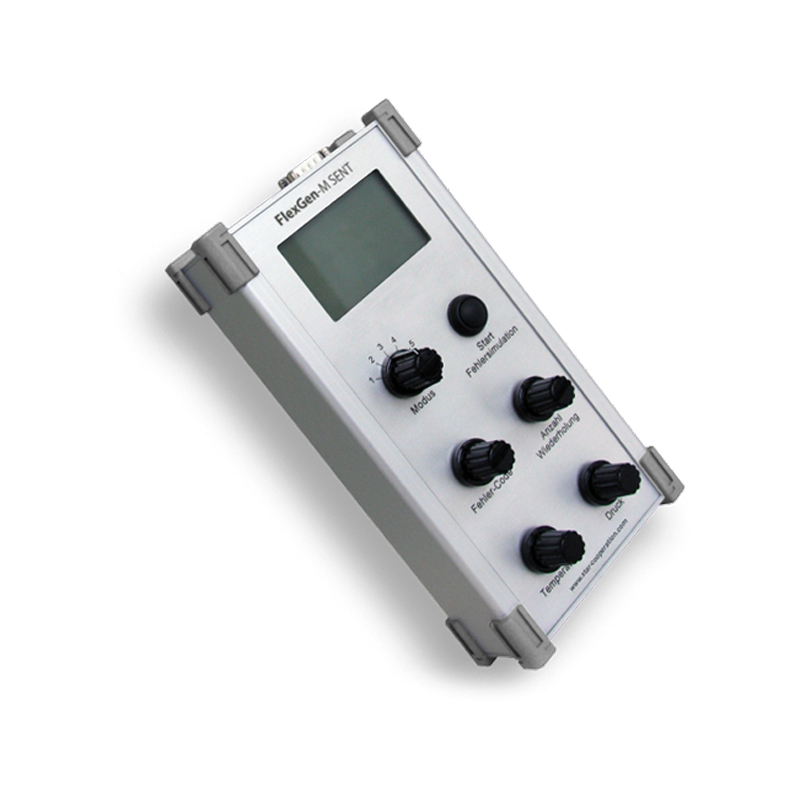

The FlexGen-S SENT is a variably usable, mobile and self-sufficient platform that offers comprehensive options to gather, process and generate sensor data. By doing so, it is both possible to read out connected SENT sensors and to simulate virtual sensors.
Via an event button, different functions for manipulating signals can be realized. Thus, it is possible for example to purposefully test defined error cases or the threshold value behavior of connected control units.
The FlexGen-M SENT comes with a synchronization interface for cascading several devices. Therefore, the behavior of redundant sensors can also be simulated.
With the USB interface, there is the possibility to connect the simulator with a PC. Via a PC application included, all the parameters for configuring a SENT interface can be set up comfortably.
In addition to having the option to produce FlexGen-M SENT's software, use and display elements according to customer specifications, other interfaces like CAN, LIN or analog channels are also possible due to the device-inherent modular construction.
Display, simulation and manipulation of sensor data
Integrated error simulation
Manifold configuration options for discretional sensors
Error simulation/error analysis
Simulation of real sensors for testing special marginal conditions
Verification of control unit behavior
Data analysis, measuring technology, data conversion to other bus systems
SENT interfaces according to SAE J2716 R ev. 01/2010 and downward compatible
Supply voltage 2-28 V (short-circuit and reverse current protected)
2 SENT interfaces (1x receiver, 1x transmitter)
Set-up and display option within the device with various switches, rotary encoders and event buttons
Display for displaying set-up parameters and current SENT values
Robust device with the option of extending by additional modules
Stand-alone operation without PC for mobile test bench applications
Complete support of slow channel with Short Serial Message Format and Enhances Serial Message Format
Simulation of Single Secure sensors with automatic generation of message counter and inverted data nibble
Synchronized data manipulation of redundant sensors by cascading several devices
FlexGen-M SENT (device)
Connector cable (voltage supply, SENT interfaces, synchronization, USB)
Configuration software including USB driver
|Supply Voltage||8 - 28V LEMO EXJ.1B.302.HLD|
|Operation Temperature||-20°C to +60°C (extended tempera-ture range possible on demand)|
4x20 characters, LC display
3x LEDs (Rx, Tx, event button)
1x rotary switch
2x rotary encoder
1x event button
|SENT Receiver||LEMO EGG.1B.303.CLL|
|SENT Transmitter||LEMO EGJ.1B.303.CLA|
|Synchronization||Sub-D 9 pol. Stecker (incl. CAN)|
|Dimensions||200 x 106 x 60 mm|
|USB||USB 2.0 Full-Speed (USB Device)|
