Description

Product Information

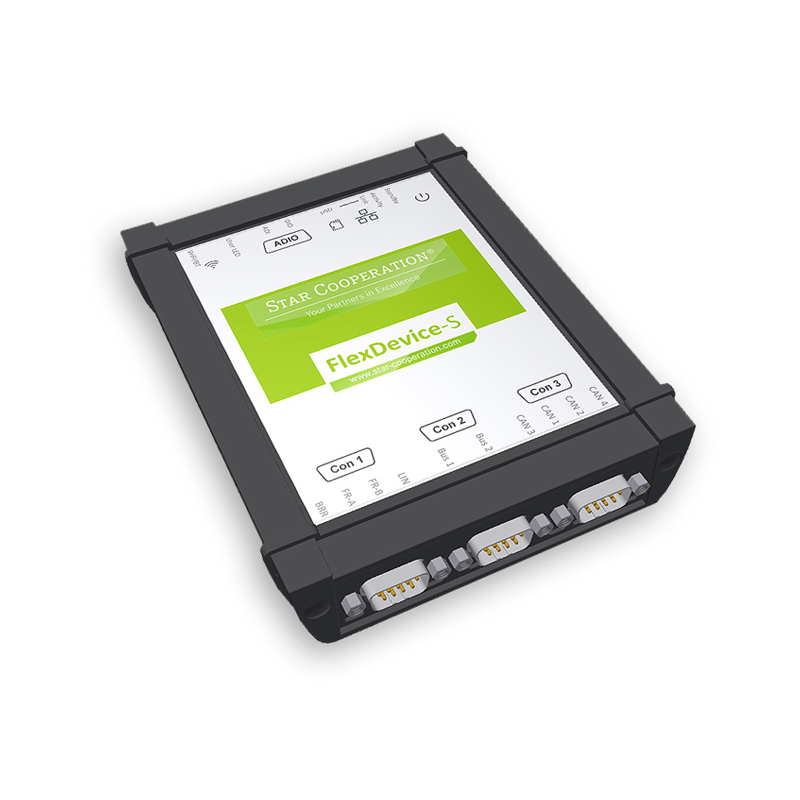

FlexDevice-S is the starter of the FlexDevice product familiy which is used and recognized by many car manufacturers and component suppliers in their automotive electronics development. The FlexDevice family provides manifold solutions for

• gateways between different automotive bus systems

• bus interfaces

• remaining bus simulation

• signal manipulation

• data logging

• rapid prototyping

The multifunctional bus control unit FlexDevice-S supports the current and upcoming bus systems and has one variable interface, so it covers most of the application fields where bus interfaces are required. This device is appreciated by embedded software developers since it facilitates the implementation and testing of even very tricky gateway applications and prototyping functionalities.

Together with the comprehensive FlexConfig software family, the developers are enabled to set up and control their bus systems and ECU environment in a smart manner.

Advantages

• ARM Cortex A9 dual core (800 MHz) with 1 GByte DDR3 RAM Up to 10 bus channels 8 hardwired bus channels

• 2*CAN-HS channels

• 2*CAN-FD channels*

• 1*FlexRay A channel (Self-Sync)*

• 1*FlexRay B channel (Self-Sync)*

• 1*100BASE-T1 channel*

• 1*LIN channel

• 1 flexible FlexTiny3 Slot for additional bus transceivers (2*CAN- or 2*FlexRay- or 2*100BASE-T1- channels)

• Integrated WiFi module

• Wakeup/Sleep mode support

• Startup <200ms possible

• Micro SD card slot

• IP20

• Temperature range -40°C to +85°C

• * The base unit provides the bus systems CAN-HS and LIN. To use the bus systems FlexRay, CAN-FD or 100BASE-T1, additional licenses are required

Technical Features

• Altera Cyclone V SOC (integrated ARM Cortex A9 dual core CPU)

• 1 GByte DDR3 RAM

• 3 D-sub bus connectors with fixed and pluggable transceivers

  • Up to 4 bus interfaces on each connector

• Supported automotive bus systems

  • Up to 4 FlexRay controllers ( Bosch E-Ray cores)*

  • Up to 2 FlexRay channels (2*channel A and 2*channel B) available on the connectors

  • A connector with 2 FlexRay cores provides self-synchronization

  • Up to 4 CAN-FD controllers*

  • Up to 6 CAN-HS controllers*

  • Up to 3 100MBit/s Ethernet controllers*

• Wakeup/sleep-support (wakeup possible via FlexRay or CAN)

• 1 GBit/s RJ45 Ethernet configuration interface

• Integrated 1 GBit/s Ethernet switch

• Micro SD card slot

• 4 digital inputs/outputs, or analog inputs (ADIO) via D-sub

*several bus combinations are possible, please contact us regarding your desired bus configuration.


Software Support

The device is supported by FlexConfig RBS starting with version 4.4.


Hardware

Table 1: Electrical characteristics of the FlexDevice-S


Table 2: Environmental conditions for the FlexDevice-S

Scope of Delivery

• FlexDevice-S

• Documentation

Order Information FlexDevice-S
