Description

Product Information

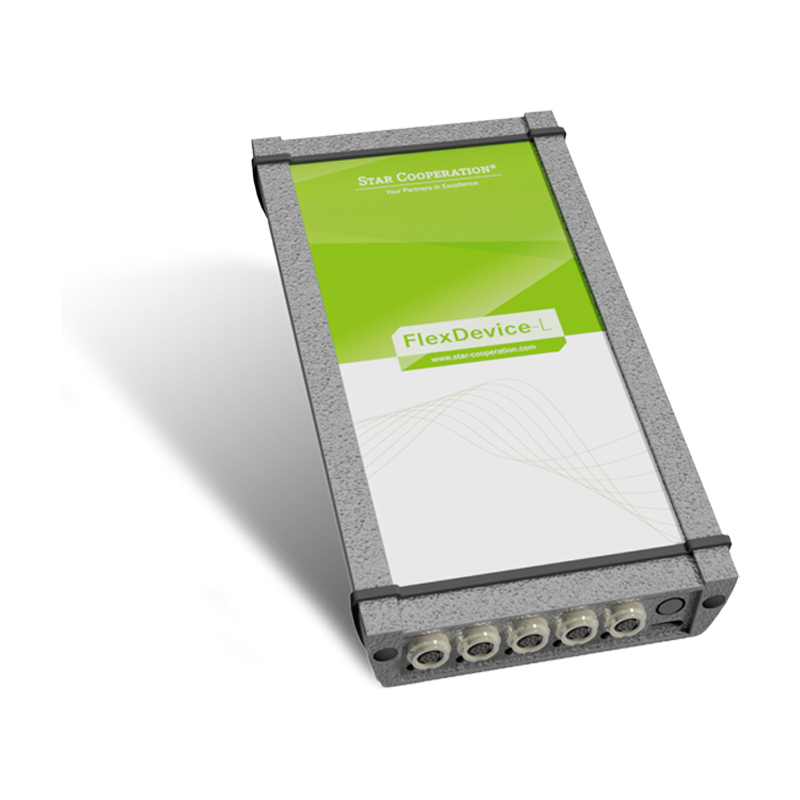

FlexDevice-L is the flagship of the FlexDevice product range, which is used and recognized by many car manufacturers and component suppliers in their automotive electronics development. The FlexDevice family provides manifold solutions for

• gateways between different automotive bus systems,

• bus interfaces,

• remaining bus simulation,

• signal manipulation,

• data logging and

• rapid prototyping

The multifunctional bus control unit FlexDevice-L supports the current and upcoming bus systems and has numerous variable interfaces, thus covering most of the application fields where bus interfaces are required. This device is appreciated by embedded software developers since it facilitates the implementation and testing of even very tricky gateway applications and prototyping functionalities.

Together with the comprehensive FlexDevice-L software family, the developers are enabled to set up and control their bus systems and ECU environment in a smart way.

Advantages

• ARM Cortex A9 dual core (800 MHz) with 1 GByte DDR3 RAM

• 10 bus channels (via pluggable transceivers)

• Up to 7 Ethernet channels

• Up to 10 CAN channels

• Up to 8 FlexRay channels (4 channel A and 4 channel B)

• WiFi and Bluetooth extension available

• Wake-up/sleep mode support

• Startup <200ms possible

• IP 67

• Temperature range - 40°C to + 85°C

Technical Features

• Altera Cyclone V SOC (integrated ARM Cortex A9 Dual Core CPU)

• 1 GByte DDR3 RAM

• 5 bus connectors that can be allocated flexibly via pluggable transceivers

• 2 bus interfaces are available on each bus connector

• Up to 4 FlexRay controllers (4 Bosch E-Ray Cores)

• Up to 8 FlexRay channels (4 channel A and 4 channel B) available on the bus connectors

• In any case, 2 FlexRay cores can be connected internally (self-synchronization)

• Up to 10 CAN-HS bus interfaces

• Up to 10 CAN-FD bus interfaces

• Wake-up/sleep support (wake-up possible via FlexRay or CAN)

• Up to 7 100 Mbit/s Ethernet bus interfaces

• Up to 7 BroadR-Reach bus interfaces

• 1 Gbit/s Ethernet configuration interface

• Integrated 1 Gbit/s Ethernet switch

• Micro SD card slot

• 1 USB 2.0 interface

• 4 digital inputs or outputs (DIO)

• 5 analog or digital inputs (ADI)

Software Support

• The device is supported by FlexConfig RBS starting with version 4.0.

Hardware

Scope of Delivery

• FlexDevice-L
• Documentation

Order Information FlexDevice-L

Order Information Accessory Parts
