Description

Product Information

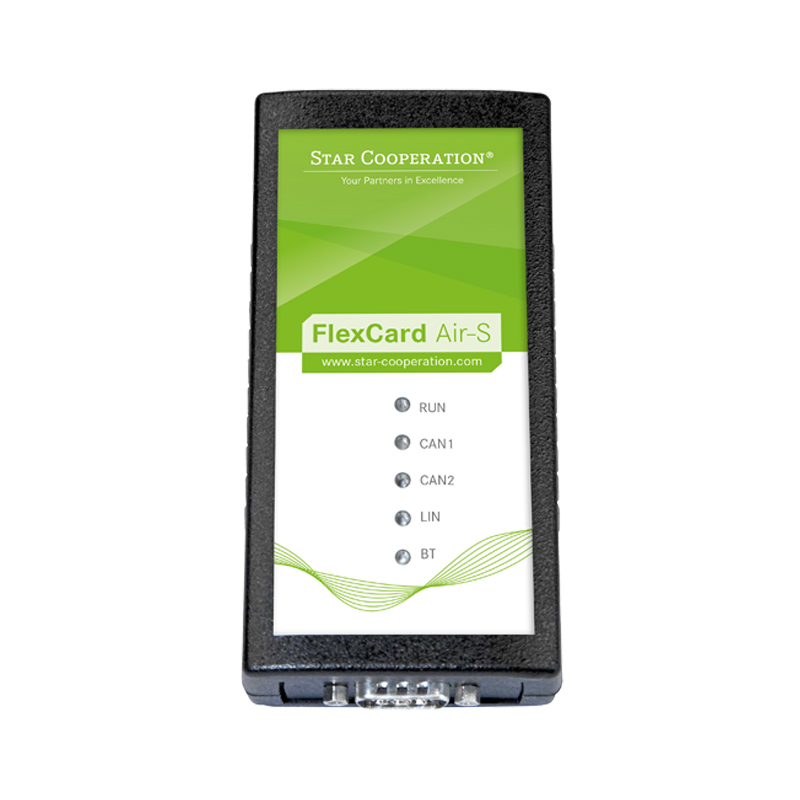

FlexCard Air-S is an affordable bus interface for wireless transport of CAN-HS and LIN messages via Bluetooth. Due to the cable free concept the device can be plugged into the bus system at any chosen point in the topology, enabling the user to place the receiving station (e.g. mobile device) at the best suitable place inside a car or move it freely in the laboratory and test bay. A software for visualization of bus signals (FlexConfig Analyzer) is optionally available. Additionally, customer specific software solutions for data visualization using other OS can be implemented.

Use Cases

• In the laboratory for wireless monitoring of bus data

• At the test bay to move freely between different setups

Advantages

• Affordable solution for wireless transport of CAN and LIN messages via Bluetooth

• Range up to 100m

• 2 CAN-HS & 1 LIN interfaces

• Compact design

Facts & Figures

The ARM-7 circuit board provides interfaces for CAN and LIN, as well as USB 2.0 for connection to a PC.

• BluetoothTM v2.0+EDR-SPP

• Range up to 100m

• Transmitting power +18 dBm

• Piconet and Scatternet support

• Supports up to 7 slaves

• Compatible with LIN 1.3, 2.0 und 2.1

• 5 LEDs

- LED1 „RUN“ indicates device is ready for use

- LED2 „CAN1“ indicates channel state

- LED3 „CAN2“ indicates channel state

- LED4 „LIN“ indicates channel state

- LED5 „BT“ indicates wireless state

• BT data rate max. 230 kbps

Compatible Software

• FlexConfig Analyzer (for Android)

Driver

Drivers are not required. On request, the Bluetooth communications structure can be provided.


Scope of Delivery

• FlexCard Air-S

• Manual

• Powercable FlexCard Air-S to pin plug
