Description

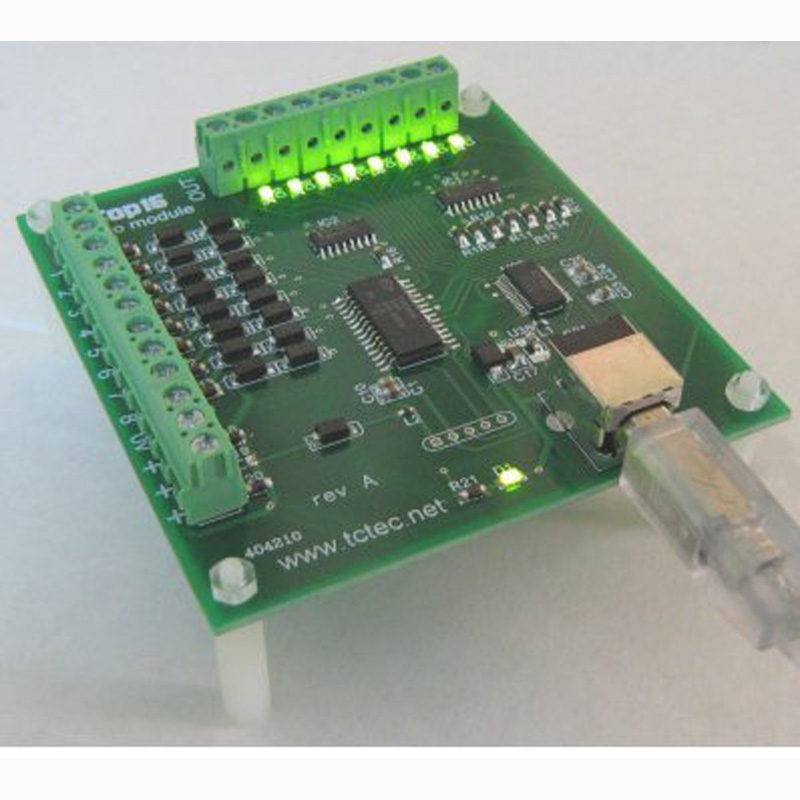

The Top16 IO module is an InputOutput module consisting of 8 open collector outputs and 8 high impedance analog + digital inputs.
Each output can sink 250mA (all on), or individually 350mA, this enables direct control of devices such as solenoids, door strikes and relays.
Each output can also provide PWM (pulse width modulation) output of 8 bit resolution (0x00 to 0xFF) at 7.8 kHz.
The USB interface is provided by FTDI DLL and drivers, as well as a DLL or command –line application provided by tctec.
Specification
|
Maximum current consumption (exclude “+” outputs) |
100 mA | ||
|---|---|---|---|
| Supply | USB powered | ||
| Dimensions | 86 mm x 92mm x 20mm | ||
|
Digital Output/input maximum update frequency |
60Hz | ||
| Maximum input voltage | 30 Volts | ||
| Open collector output rating | 30Volts 350mA, 250mA(all on) | ||
| Input Logic Low (0) | < 1 Volt | ||
| Input Logic High (1) | > 4 Volts | ||
| Analog read frequency | 20 Hz | ||
| Analog input | 12bit / multi-gain, 10mV offset | ||
| PWM (on all outputs) | 7.8 kHz, 8 bit (0x00 to 0xFF) | ||
