TOP16 II

Part No.: MPTT-TOP16-II
IO Module User Manual

產品介紹

Description

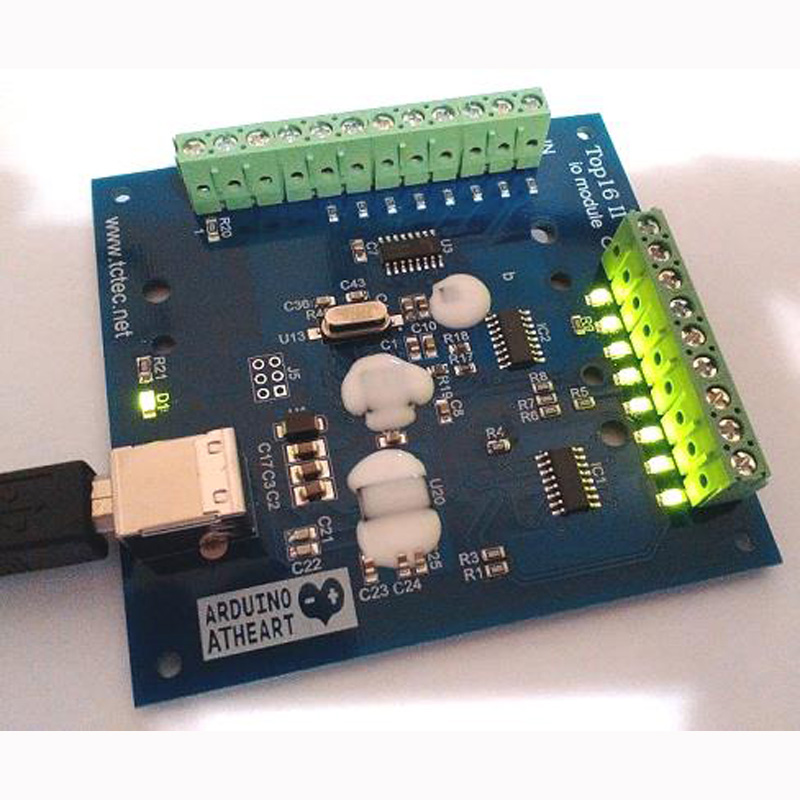

The Top16 IO module is an InputOutput module consisting of 8 open collector outputs and 8 high impedance analog + digital inputs.

Each output can sink 250mA (all on), or individually 350mA, this enables direct control of devices such as solenoids, door strikes and relays.

All outputs can also provide PWM (pulse width modulation) output of 8 bit resolution.

The USB interface is provided by FTDI DLL and drivers, as well as a DLL or command–line application provided by tctec.


Specification

Maximum Current consumption
(exclude "+" outputs)
100 mA
Supply USB Powered
Dimensions 87 mm x 92 mm x 20 mm
Digital Output/ input maximum
update frequency
60 Hz
Maximum input Voltage 24 Volts
Open Collector Output Rating 3 Volts 350mA, 250mA(all on)
Input Logic Low (0) < 1 Volt
Input Logic High (1) > 4 Volts
Analog Read Frequency 20 Hz
Analog Input 16 bit 12 bit high speed (max 5V)
PWM (on all outputs) 7.8 kHz, 8 bit (0x00 to 0xFF)
