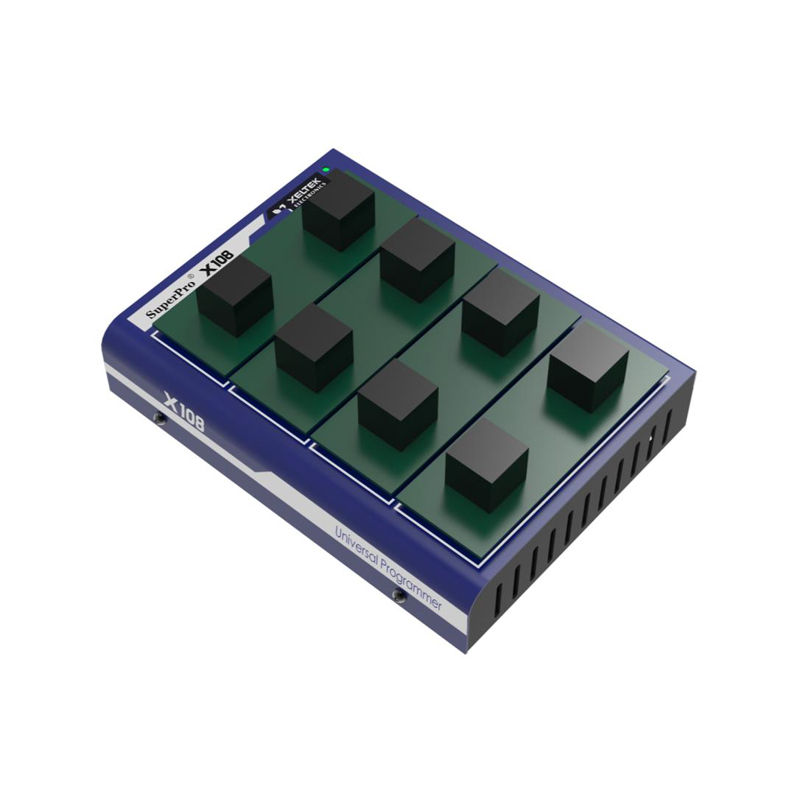

Ultra-high Speed eMMC & NAND FLASH Device Programmer

• Speed much higher than SuperPro/7500 for eMMC & NAND

• Programs & Verify eMMC devices in 30seconds

• Programs & Verify NAND FLASH devices in 35seconds

• 8 eMMC & NAND FLASH devices can be programmed simultaneously. Engineering and production programmers in one unit.

• IC manufacturer approved programming algorithms are used for high reliability.

• Advanced and powerful software functions.

• Production mode starts chip operation at the moment the chip is inserted in the socket properly.

• Project function simplifies processes such as device selection, file load, device configuration setting, program option, and batch file setting into one touch step. Barcode management automatically load project files to avoid manual mistakes.

• Password can be set for project files and production volume control

• Batch command combines device operations like program, verify, security into a single command at any sequence.

• Dynamic buffer makes it possible that each chip is programmed with different data file. Applications including serial number, MAC address etc.

• Win7/ Win8/Win10 compatibility

• Electrical and Mechanical Specification

• PC Interface： USB3.0

• GND banana jack

• Power Supply: AC Adaptor Input AC 100V- 240V; Output: 12V/1.5A

• Main Unit Dimensions：195 x 125 x 48 mm

• Weight: 0.6 Kg

• Package: Dimensions: 310 x 250 x 145 mm;

• Weight: 1.2 Kg

• Temperature: ：0-40°C。

• Humidity： 20%-80%

• Items Included

• SuperPro /X108 Programmer main unit

• AC adapter

• Software CD

• USB3.0 Cable

• Optional Accessaries

Device Updates:

• XELTEK updates software and device algorithm regularly.

• View the latestDevice List .

• Download the current software version free of charge .

• Updates are available by mail at a nominal charge.

• XELTEK also adds devices upon customer's request at its option.

Accessories:

• Main unit, AC adaptor, USB2.0 cable, software CD (user manual), register card

• Optional accessories: adaptor in varies packages,.
