USB3.0 Interfaced Ultra-high Speed Stand-alone Universal Device Programmer

Features

Speed much higher than SuperPro/7500 for eMMC, NAND FLASH etc.

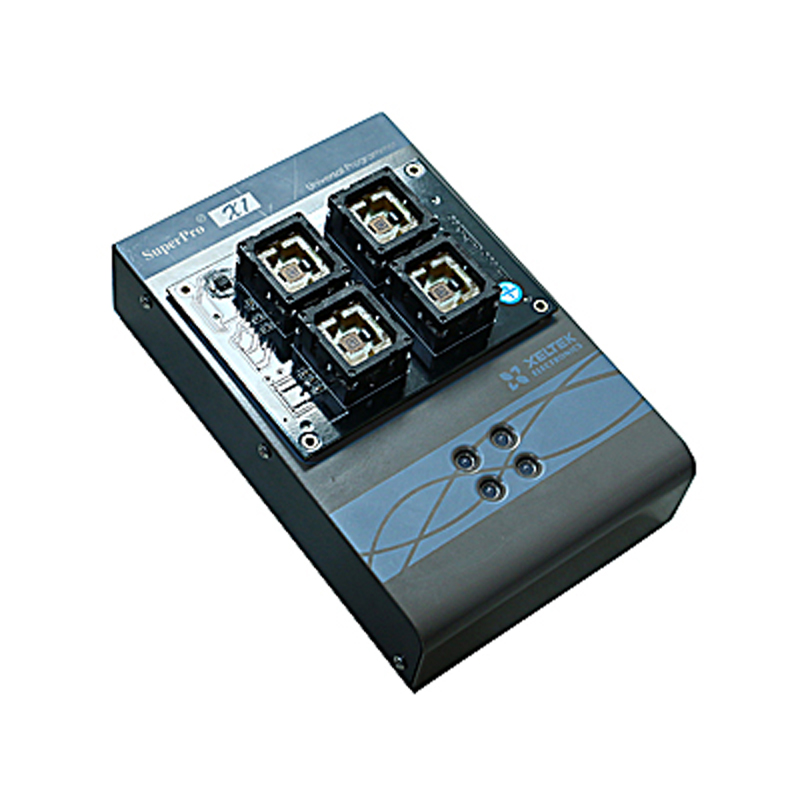

• Up to 4 eMMC, NOR/NAND FLASH, Serial EEPROM/FLASH etc. can be programmed simultaneously. Engineering and production programmers in one unit.

• Supports devices no less than SuperPro/7500 in the near future. Devices include EPROM、Paged EPROM、Parallel and Serial EEPROM、FPGA、PROM、FLASH(NOR & NAND)、BPROM、NVRAM、SPLD、CPLD、EPLD、Firmware HUB、Microcontroller、MCU；Supports devices with Vcc as low as 1.2V. Socket Adaptors available for DIP、SDIP、PLCC、JLCC、PGA、LGA、SOIC、SOJ、SOT、QFP、TQFP、PQFP、VQFP、MQFP、LQFP、TSOP、SOP、TSOPII、PSOP、SSOP、TSSOP、SON、EBGA、FBGA、FTBGA、VFBGA、μBGA、CSP、SCSP、QFN、HVQFN etc.

• Popular NAND FLASH Platform supported including Samsung (XSR1.0/1.6), QualComm, HYNIX（HIFFS）, MTK(Solution V1.1), ICERA (v1.0/2.0), ST （7162、7141 etc.）, AMLOGIC(IF2/0), REALTEK, PICOCHIP, DataLight ( Flash FX Pro), Marvell(310/303/920/935…), BroadCom, ZTE, Intel (CE4100)，UBI, LEADCORE(L1809OG), MSATR etc. Customer-specific NAND solution available.

• Built with 48 universal and 96 high speed pin-drivers.

• Tenth generation pin-driver technology provides better signal, wider voltage range and higher bandwidth. Supports devices with Vcc as low as 1.2V.

• Many safety mechanisms are built including self-calibration, self-diagnosis, wrong chip placement detection, poor-pin-contacting detection, ID checking, over-current and over-voltage protection etc.

• Connected to PC via USB3.0;

• IC manufacturer approved programming algorithms are used for high reliability.

• Advanced and powerful software functions.

• Production mode starts chip operation at the moment the chip is inserted in the socket properly.

• Project function simplifies processes such as device selection, file load, device configuration setting, program option, and batch file setting into one touch step. Barcode management automatically load project files to avoid manual mistakes.

• Password can be set for project files and production volume control

• Batch command combines device operations like program, verify, security into a single command at any sequence.

• Dynamic buffer makes it possible that each chip is programmed with different data file. Applications including serial number, MAC address etc.

• Gang expansion Up to 12 programmers can be managed under one GUI as one concurrent production programmer.

• JAM/STAPL Player and Direct C supported.

• Log file and statistic table for quality tracking.

• MES and Industrial 4 friendly  Remote communication interface and run-time database available

• Win7/ Win8/Win10 compatibility

Electrical and Mechanical Specification

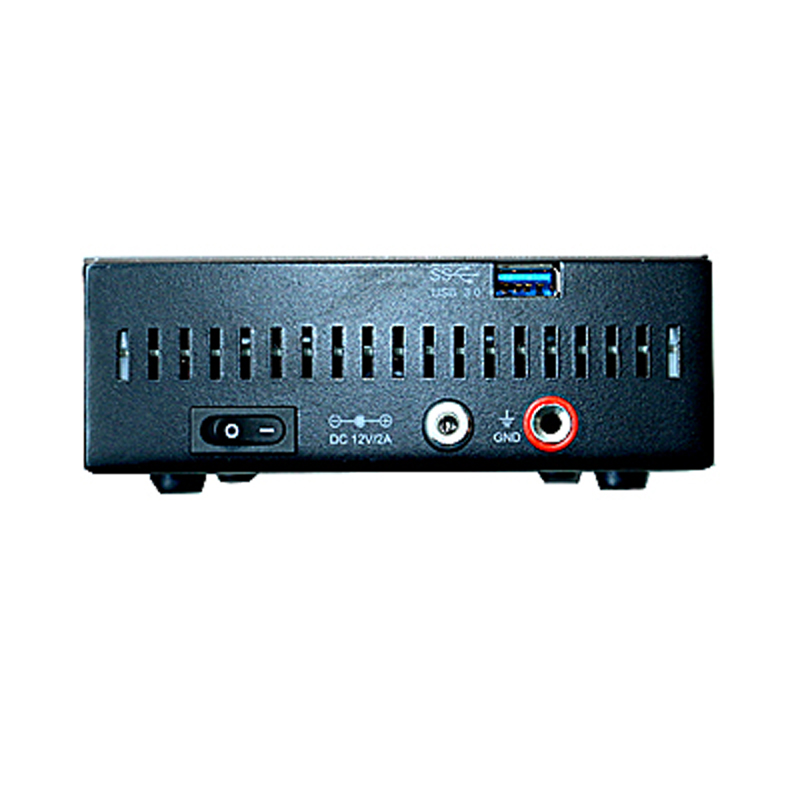

• PC Interface: USB3.0

• GND banana jack

• Power Supply: AC Adaptor Input AC 100V- 240V; Output: 12V/1.5A

• Main Unit

  • Dimensions: 195  x 125 x 48 mm

  • Weight: 0.6 Kg

• Package:

  • Dimensions: 310 x 250 x 145 mm

  •  Weight: 1.2 Kg

  • Temperature: 0-40°C。

  • Humidity: 20%-80%

Items Included

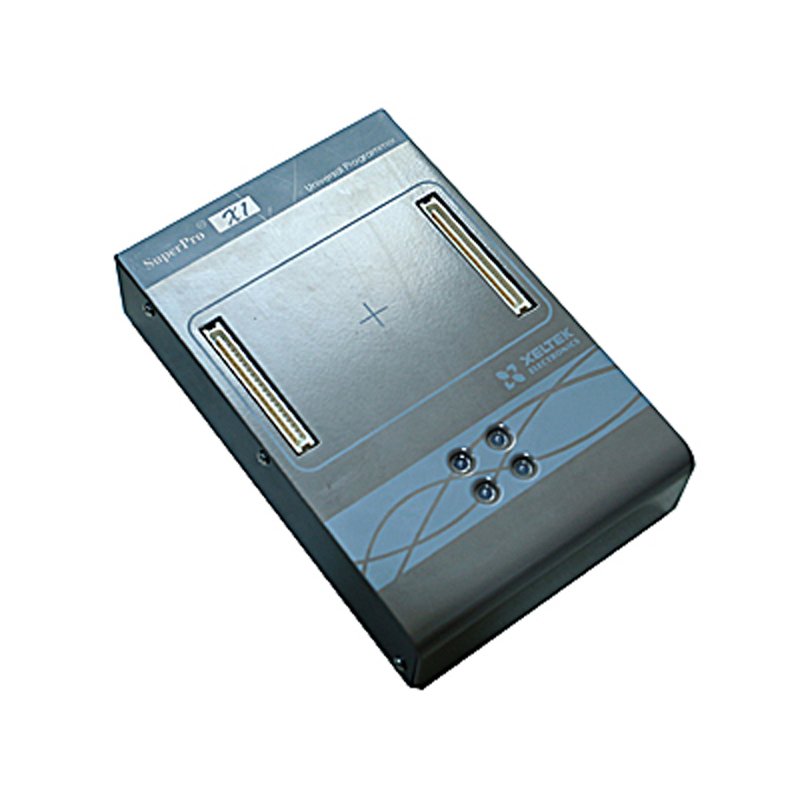

• SuperPro /X1 Programmer main unit

• AC adapter

• Software CD

• USB3.0 Cable

Optional Accessaries

• Socket adaptors in various packages
