Ultra Fast Programming Speed

SuperPro IS416 is designed with high programming speed in mind.
Our semiconductor manufacturer approved algorithms, precision
and clean signals guarantee high programming yield. Special
design was made to eliminate overshoot and ground bounce.
Algorithms are performed with state machine architecture
constructed with FPGA to achieve a ultra-high programming speed.

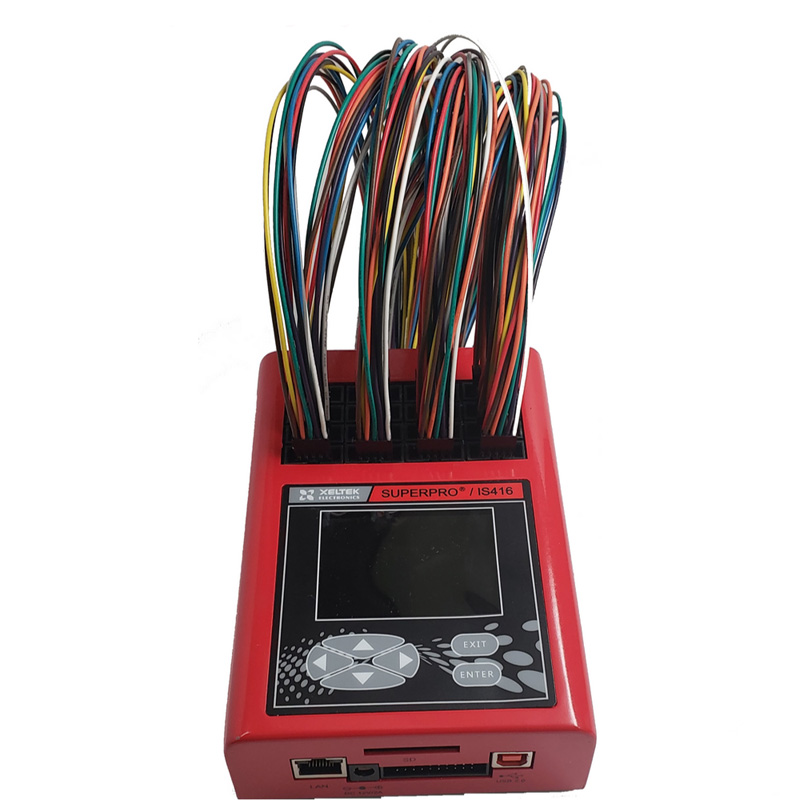

Up to 16 PCB Gang Programming

SuperPro IS416 supports almost all serial devices including MCUs,
serial FLASH/EEPROMs and most parallel memory devices such
as eMMC and NAND/NOR FLASH. It is a 96-pin driver programmer
with 16 channels (6 I/O x 16 channels). SuperPro IS416 supports
most ISP devices to program 16 channels simultaneously. Four
parallel high pin count chips, such as NAND/eMMC, can be
programmed at the same time

Expansion

Up to 12 programmers can be connected to a single PC for
programming multiple PCBs or all the programmers can be used
in stand-alone mode.

Mass Production Mode

SuperPro IS416 has a working mode called "mass production", that
is, once the programmer detects that the target board is ready and
receives an ISP signal, it immediately starts the functional operation
defined by AUTO without keyboard operation. TPIN and TPOUT in
the ISP port are provided for this purpose. TPOUT supplies high level,
and TPIN is the level detection input line. If these points are
short-circuited on the target board, once ISP signal is applied to the
test point, TPIN immediately detects high level, and AUTO command
sequence can be started.

Longer Cable Length - Supported with Adjustable Speed

For industrial applications, numerous problems arise if in-system
programming (ISP) is done with a parallel programmer via an ISP
header. Parallel programmers restrict the target board to be
programmed at a particular distance (usually less than a couple
of inches). SuperPro IS416 is a serial programmer with an ISP
cable that can program a target board up to 3 feet (1M) in distance.
Beside the cable line drive ability for long distance applications, the
advanced in-system driver allows operating speed to be adjusted for
execution timing purposes. VDD (0-5.5V /0.5A) and Vpp (0-15V /
0.2A) lines provided to power the target board and the target devices.

Technical Support

Xeltek is proud to offer same day support for technical and sales
inquiries. We are available to help customers and representatives
resolve issues or help with their requests in an effective way. This
service is provided by our highly qualified new support team that
will provide the best of their knowledge to bring prompt sales and
technical support.

Advanced Software Features

SuperPro IS416 comes with a powerful and easy to use
programming software. The biggest advantage is its simplicity so
that any operator can operate the programmer with little or no
training. SuperPro IS416 software is supported on Windows Vista,
7, 8, and 10 32/64Bits.

Project Files

The project file stores preparations before programming. Users
could also restore and save work environment. The project file
includes device type, buffer data, operation option settings,
configuration bit settings and batch commands. Project files may be
password protected to increase security and reliability when
operated by untrained operators.

Project Group: Operate Multiple Project Files in Batch Mode

Multiple chips could be programmed simultaneously using the Project
Group feature on the SuperPro IS416 software. Project Group
organizes batch running of multiple projects and is available on all
SuperPro ISP models. Other ISP programmers require a demultiplexer
for programming two chips using a single ISP programmer and this
solution is not suitable for volume production because it takes longer to
program chips, causes noise interference, and incurs additional
hardware and labor cost.

Super Scale Project Group

Complicated PCBA or multiple combined PCBAs may need multiple
programmers to work properly. The Super Scale Project Group is
responsible for the workflow across multiple programmers.

Auto Function

The Auto function organizes different functions into a sequential group
(erase, blank check, program, verify and protect). Functions are
executed in sequential order similar to a batch command.

Production Statistics

A log file could be used to save operation information before exiting the
program. Log files can also be used to facilitate quality tracking.

Factory Mode

This mode is designed for factory volume production. To prevent
operation errors from destroying chips and wrong data written to the chip,
SuperPro will operate in the Auto function mode.The administrator can
set a password to prevent unauthorized access to the system.

XPlayer

SuperPro IS416 supports JAM, SVF and Staple files from ACTEL, Xilinx
and ALTERA. SuperPro IS416 also supports Direct C files from ACTEL.
STP or JAM files can be generated using design tools such as ISE and
Quartus II.

Auto Recognition of File Types

We support almost all kinds of known file formats including file formats
with automatic recognition functions: Binary, Intel (linear & segmented)
Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF, etc.b

Auto Increment of Serial Numbers

Auto-generation of electronic serial numbers is available on Superpro
IS416. This feature is implemented by setting Auto Increment in
Operation Option. Auto Increment allows users to add unique serial
number into the device. After each successful programming, the software
automatically changes the value by the specified increment mode.
Barcode Management is also available to fulfill all setup tasks by scanning
barcode on the job sheet.

Copyright Protection

with SD encryption, project file encryption and access control, volume
control and remote control.

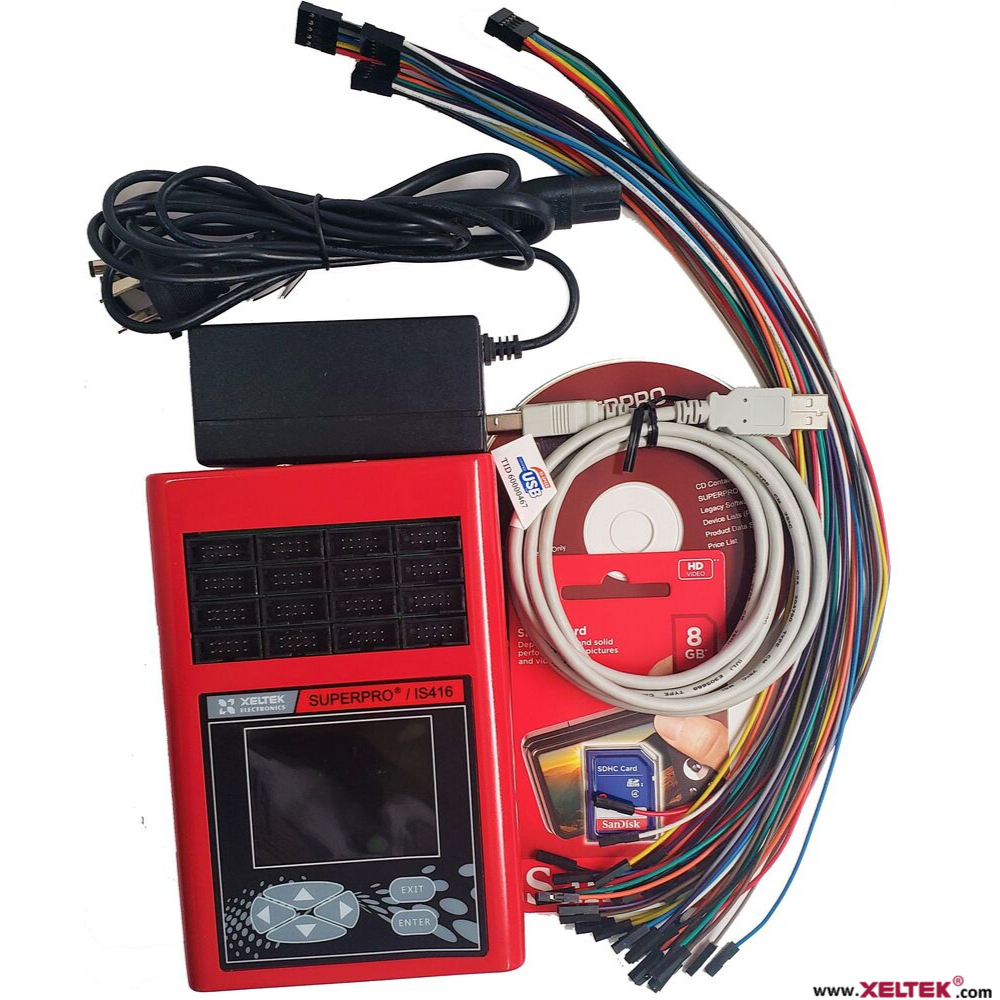

• 4 ISP Cables

• Software CD

• AC Adapter

• USB Cable

• SD Card for stand-alone operation

• Command Line Utility

• DLL License

• ISP Cables
