Largest ISP Device Library

Located in Silicon Valley, we keep good relationships with many
major IC companies that are important for us to continuously
support new devices. SuperPro IS01 currently supports more
than 10,000 devices, which is the largest device library in the
serial programming industry. SuperPro IS01 supports all common
ISP protocols such as I2C, SPI, UART, BDM, MW, JTAG, CAN
and RS232.

Longer Cable Length - Supported with Adjustable Speed

For industrial applications, numerous problems arise if in-system
programming (ISP) is done with a parallel programmer via an ISP
header. Parallel programmers restrict the target board to be
programmed at a particular distance (usually less than a couple of

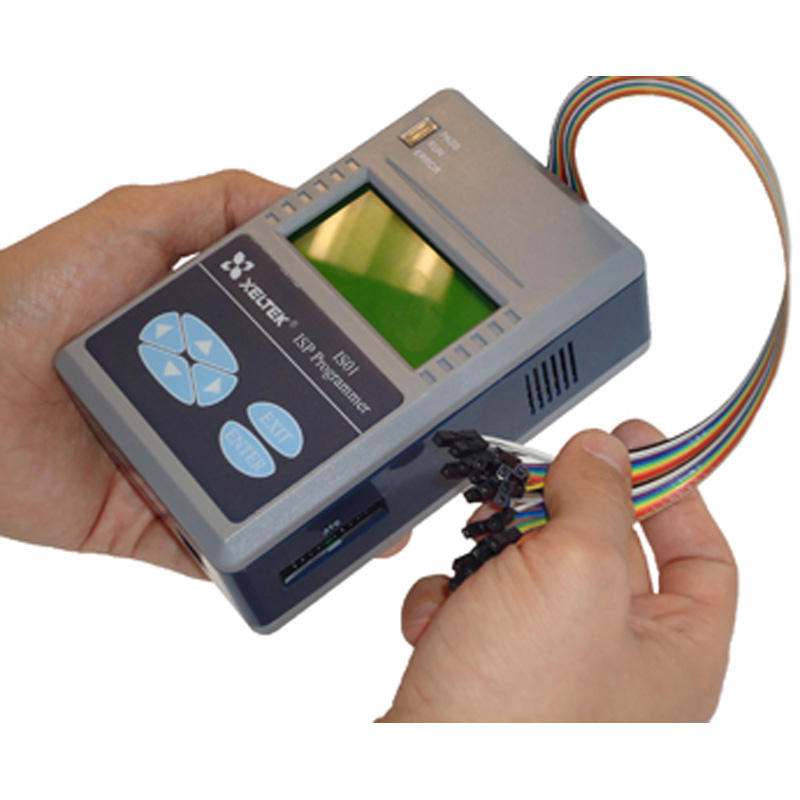

inches). SuperProIS01 is a serial programmer with an ISP cable
that can program a target board up to 3 feet (1M) in distance.
Beside the cable line drive ability for long distance applications,
the advanced in-system driver allows operating speed to be
adjusted for execution timing purposes. VDD (0-5.5V /0.5A) and
Vpp (0-15V / 0.2A) lines provided to power the target board and
the target devices.

Mass Production Mode

SuperPro IS01 has a working mode called "mass production", that
is, once the programmer detects that the target board is ready and
receives an ISP signal, it immediately starts the functional operation
defined by AUTO without keyboard operation. TPIN and TPOUT in
the ISP port are provided for this purpose. TPOUT supplies high
level, and TPIN is the level detection input line. If these points are
short-circuited on the target board, once ISP signal is applied to the
test point, TPIN immediately detects high level, and AUTO command
sequence can be started.

Multi programming

Up to 12 programmers can be connected to a single PC for
programming multiple PCBs or all the programmers can be used
in stand-alone mode.

Technical Support

Xeltek is proud to offer same day support for technical and sales
inquiries. We are available to help customers and representatives
resolve issues or help with their requests in an effective way. This
service is provided by our highly qualified new support team that
will provide the best of their knowledge to bring prompt sales and
technical support.

Advanced Software Features

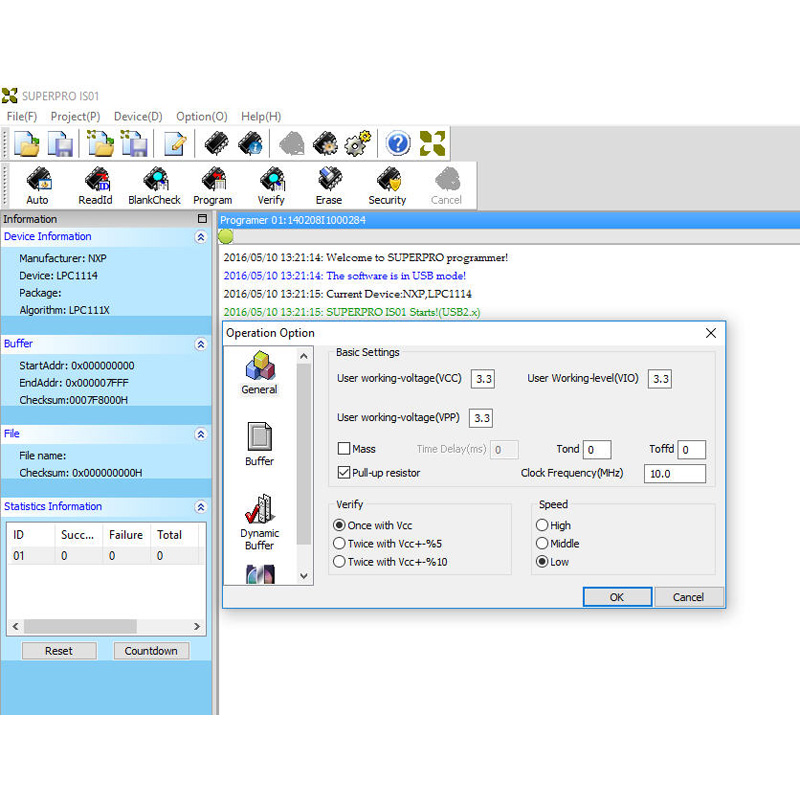

SuperPro IS01 comes with a powerful and easy to use
programming software. The biggest advantage is its simplicity so
that any operator can operate the programmer with little or no
training. SuperPro IS01 software is supported on Windows Vista,
7, 8, and 10.

Project Files

The project file stores preparations before programming. Users
could also restore and save work environment. The project file
includes device type, buffer data, operation option settings,
configuration bit settings and batch commands. Project files may
be password protected to increase security and reliability when
operated by untrained operators.

Project Group: Operate Multiple Project Files in Batch Mode

Multiple chips could be programmed simultaneously using the
Project Group feature on the SuperPro IS01 software. Project
Group organizes batch running of multiple projects and is available
on all SuperPro ISP models.

Auto Function

Production Statistics

A log file could be used to save operation information before exiting
the program. Log files can also be used to facilitate quality tracking.

Factory Mode

This mode is designed for factory volume production. To prevent
operation errors from destroying chips and wrong data written to the
chip, SuperPro will operate in the Auto function mode.The
administrator can set a password to prevent unauthorized access to
the system.

XPlayer

SuperPro IS01 supports JAM, SVF and Staple files from ACTEL,
Xilinx and ALTERA. SuperPro IS01 also supports Direct C files from
ACTEL. STP or JAM files can be generated using design tools such
as ISE and Quartus II.

LabVIEW

Integrating SuperPro IS01 onto an existing LabVIEW environment is
a simple task. Previously, users had to purchase DLL functions and
create a set of custom VIs for integration, taking days and resulting in
expensive engineering time. The LabVIEW driver package is ready to
be used in the test program with very little need of coding and
customization. Standard LabVIEW driver is available for download.

Auto Recognition of File Types

We support almost all kinds of known file formats including file formats
with automatic recognition functions: Binary, Intel (linear & segmented)
Hex, Motorola S, Tektronix (linear & segmented), JEDEC, POF, etc.

Auto Increment of Serial Numbers

Auto-generation of electronic serial numbers is available on Superpro
IS01. This feature is implemented by setting Auto Increment in Operation
Option. Auto Increment allows users to add unique serial number into the
device. After each successful programming, the software automatically
changes the value by the specified increment mode.

Intellectual Property Protection

Password settings available in both PC and stand-alone mode.

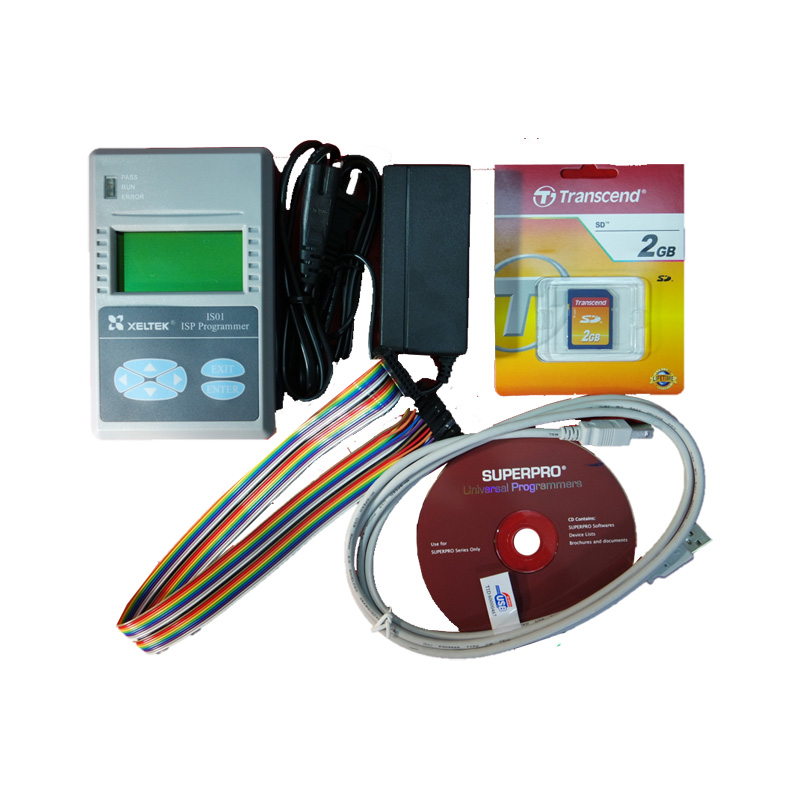

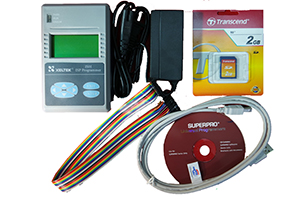

• ISP Cable

• Software CD

• AC Adapter

• USB Cable

• SD Card for stand-alone operation

• Command Line Utility

• DLL License
