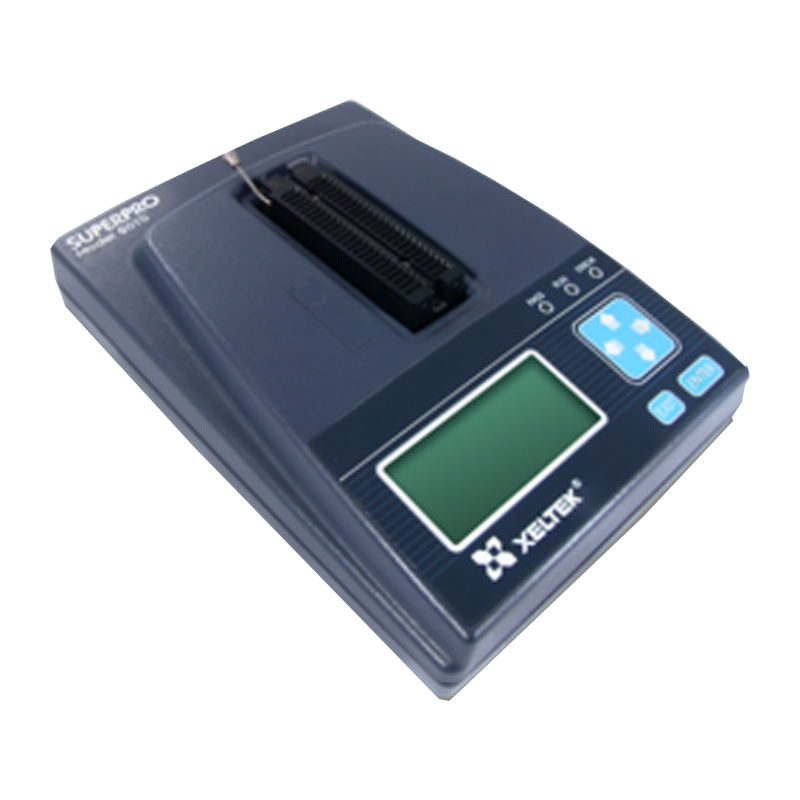

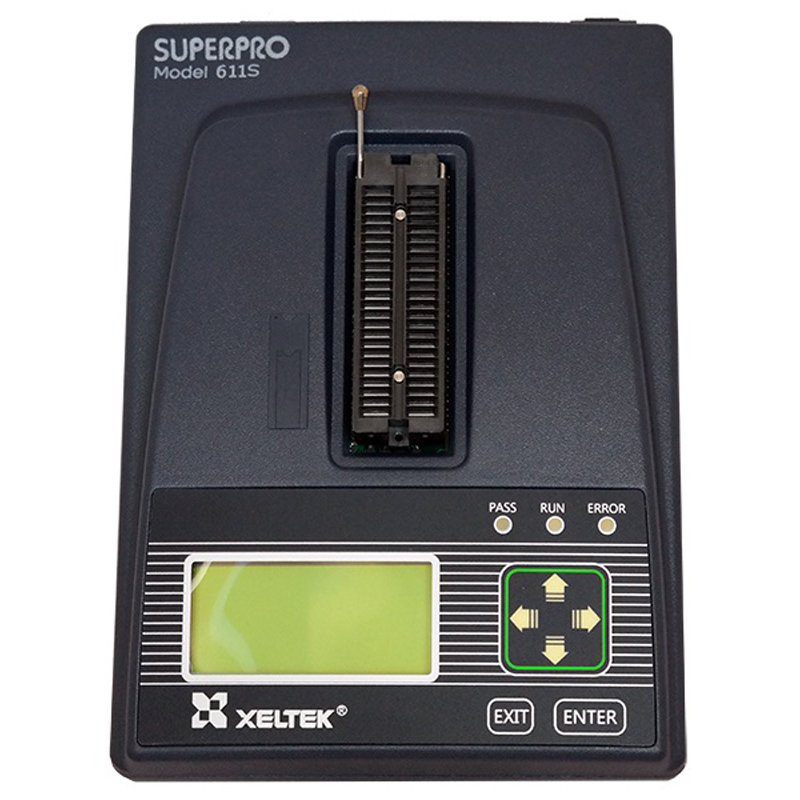

SuperPro 611S

Part No.: MPXT-SuperPro-611S
High Speed Stand-Alone Universal Device Programmer

產品介紹

High Speed Stand-Alone Universal Device Programmer


Superpro 611S is a cost-effective, reliable, and high-speed universal chip programmer. It is designed to communicate using USB 2.0 port for development requirement and can also work in standalone mode (without connecting to a PC) for production requirement. Comes with free software updates.

Application and target customers: Electronic repair, car repair shops, medical devices, students and hobbyists.


Advantages of SuperPro 611S

Project Files

The project file stores preparations before programming.  Users
could also restore and save work environment.The project file
includes device type, buffer data, operation option settings,
configuration bit settings and batch commands. Project files may
be password protected to increase security and reliability when
operated by untrained operators.

Auto Function

The Auto function organizes different functions into a sequential
group (erase, blank check, program, verify and protect). Functions
are executed in sequential order similar to a batch command.

Production Mode

Once a chip is inserted correctly, the programmer automatically
starts batch command of erase, blank check, program and verify.
Auto chip detection saves time and increases efficiency.

Production Statistics

A log file could be used to save operation information before exiting
the program. Log files can also be used to facilitate quality tracking.

Factory Mode

This mode is designed for factory volume production. To prevent
operation errors from destroying chips and wrong data written to the
chip, SuperPro 611S will operate in the Auto function mode.The
administrator can set a password to prevent unauthorized access to the
system.

Auto Recognition of File Types

We support almost all kinds of known file formats including file formats
with automatic recognition functions: Binary, Intel (linear & segmented)
Hex, Motorola S,Tektronix (linear & segmented), JEDEC, POF, etc.

Auto Increment of Serial Numbers

Auto-generation of electronic serial numbers is available on Superpro
611S. This feature is implemented by setting Auto Increment in
Operation
Option. Auto Increment allows users to add unique serial
number into the device. After each successful programming, the
software automatically changes the value by the specified increment
mode.

Intellectual Property Protection

Password settings available in both PC and stand-alone mode.



Hardware and Electrical Specifications

Devices Supported

EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA
Configuration PROM, FLASH memory (NOR), BPROM, NVRAM,
SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU

Package Types Supported

DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP,
VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON,
EBGA, FBGA, FTBGA, VFBGA, μBGA, CSP, SCSP, QFN, HVQFN etc.

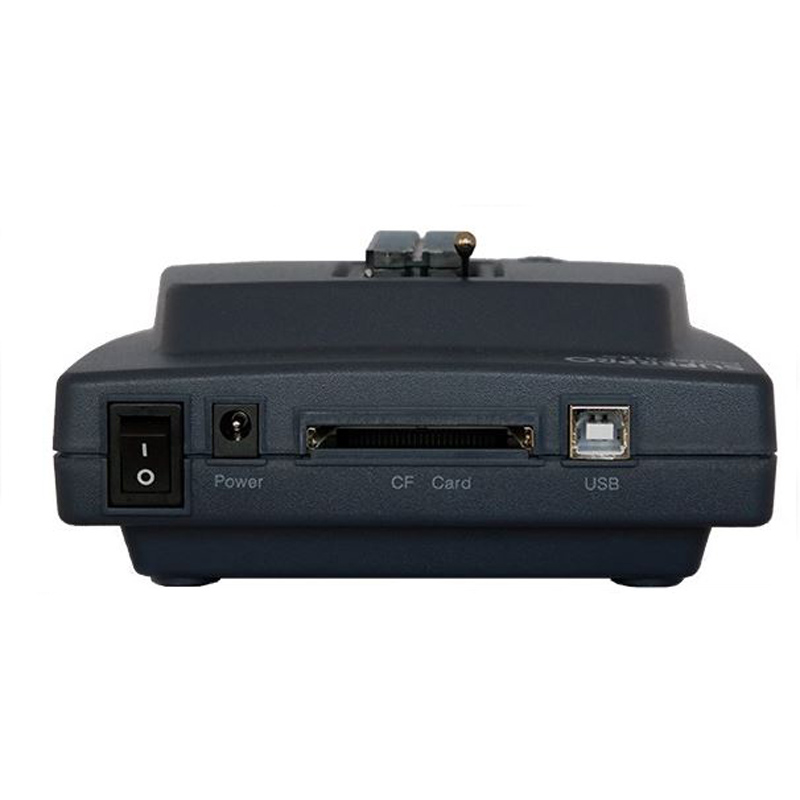

PC Interface

USB 2.0

Stand-alone Memory

Compact FLASH Card

Power Supply

AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A

Dimensions

Main unit: 205(L) x 148(W) x
50(H) mm

Package: 320 (L) x 300 (W) x 85
(H) mm

Weight

Main unit: Weight 1.35 lbs (0.6
Kg)

Package: Weight 2.5 lbs (1.2Kg)



Expanded Features

  • Operate multiple units to construct a concurrent multi-programming system. Cluster 1-15 units for flexible volume production.

  • Support devices with Vcc from 1.2V - 5V. Over-current and over-voltage protection for safety of the chip and programmer hardware.

  • Only IC manufacturer approved programming algorithms used for high reliability.

  • Vcc verification (at +5% ~ -5% and +10% ~ -10%) enhances programming reliability.
