Project Files

The project file stores preparations before programming. Users
could also restore and save work environment. The project file
includes device type, buffer data, operation option settings,
configuration bit settings and batch commands. Project files
may be password protected to increase security and reliability
when operated by untrained operators.

Auto Function

The Auto function organizes different functions into a sequential
group (erase, blank check, program, verify and protect). Functions
are executed in sequential order similar to a batch command.

Production Mode

Once a chip is inserted correctly, the programmer automatically
starts batch command of erase, blank check, program and verify.
Auto chip detection saves time and increases efficiency.

Production Statistics

A log file could be used to save operation information before exiting
the program. Log files can also be used to facilitate quality tracking.

Factory Mode

This mode is designed for factory volume production. To prevent
operation errors from destroying chips and wrong data written to
the chip, SuperPro will operate in the Auto function mode.The
administrator can set a password to prevent unauthorized access
to the system.

Auto Recognition of File Types

We support almost all kinds of known file formats including file
formats with automatic recognition functions: Binary, Intel
(linear & segmented) Hex, Motorola S, Tektronix
(linear & segmented), JEDEC, POF, etc.

Auto Increment of Serial Numbers

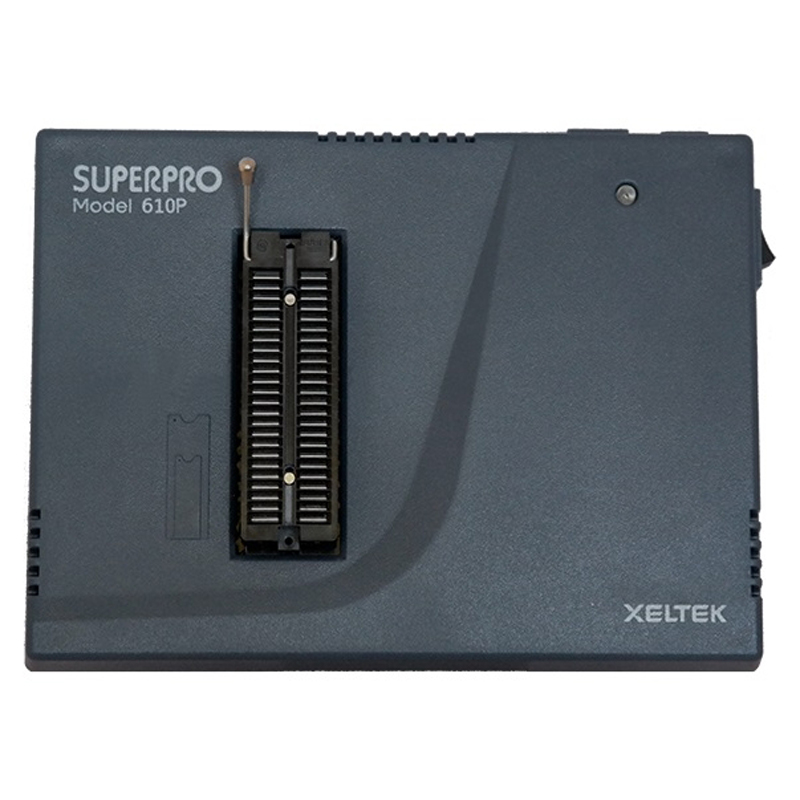

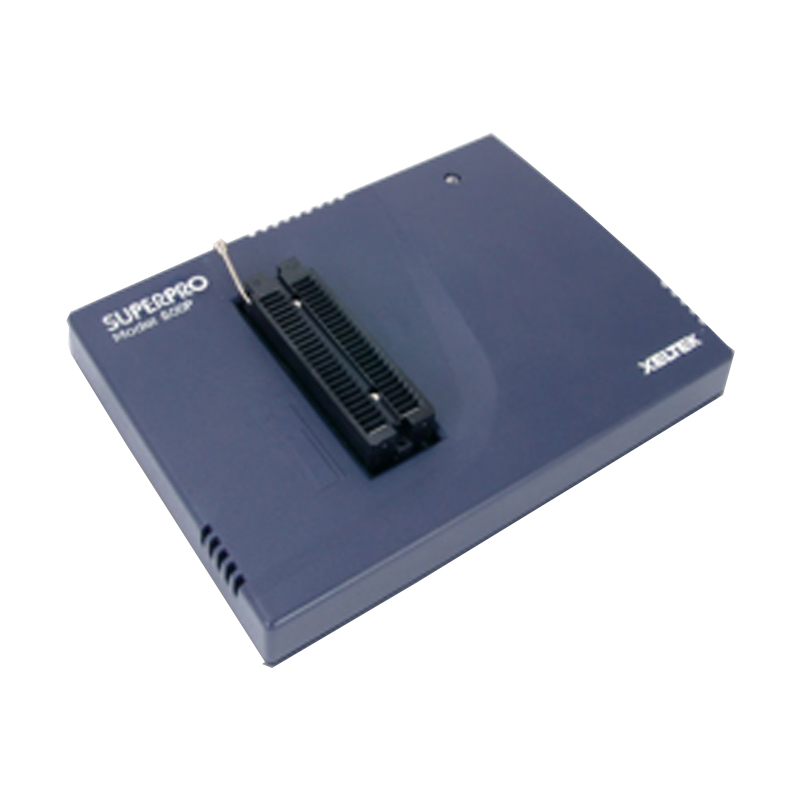

Auto-generation of electronic serial numbers is available on Superpro
610P. This feature is implemented by setting Auto Increment in
Operation Option. Auto Increment allows users to add unique serial
number into the device. After each successful programming, the
software automatically changes the value by the specified increment
mode.

Intellectual Property Protection

Password settings available in both PC and stand-alone mode.
