Ultra-Fast Universal Programmer
- Built-in 144 pin driver
- 103,000+ devices supported from nearly 400 IC manufacturers
- Operates in PC hosted and stand-alone modes
- Supports devices including EEPROM, MCU, and others
- USB interfaced ultra-fast 144 pin stand-alone universal programmer
- Great for reworks, master chip duplication, and chip testing
Description

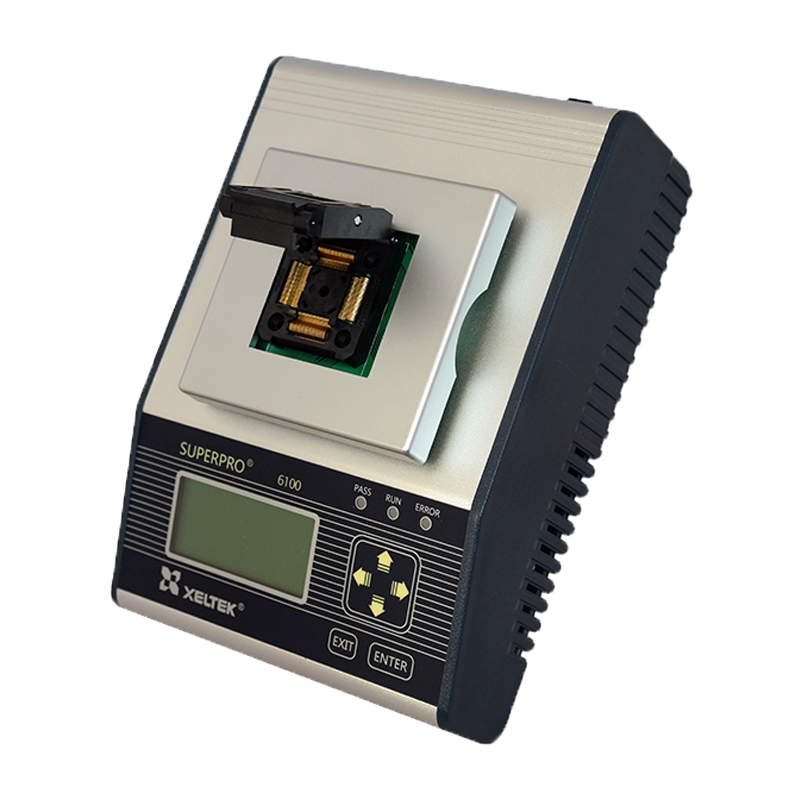

Ultra-High Speed Stand-Alone Universal Device Programmer
With Highest Device Support in the Industry
SuperPro 6100n is a cost-effective, reliable, and high-speed universal chip programmer. It is designed to communicate using USB 2.0 port for development requirement and can also work in standalone mode (without connecting to a PC) for production requirement. It has the largest device support count in the programming industry with 144 pin drivers to support high pin count chips.
Application and target customers: Programming houses, electronic repair, car repair shops, forensic and data recovery companies, medical devices, requirement for larger device support.
What's in the box?
SuperPro 6100N comes with
- AC Adapter
- USB Cable
- Quick Start Guide
Optional Accessories
- Socket Adapters in various packages
- CF Card for stand-aolne operation
- ISP Header for serial programming
Socket Adapters
Socket adapters sold separately.

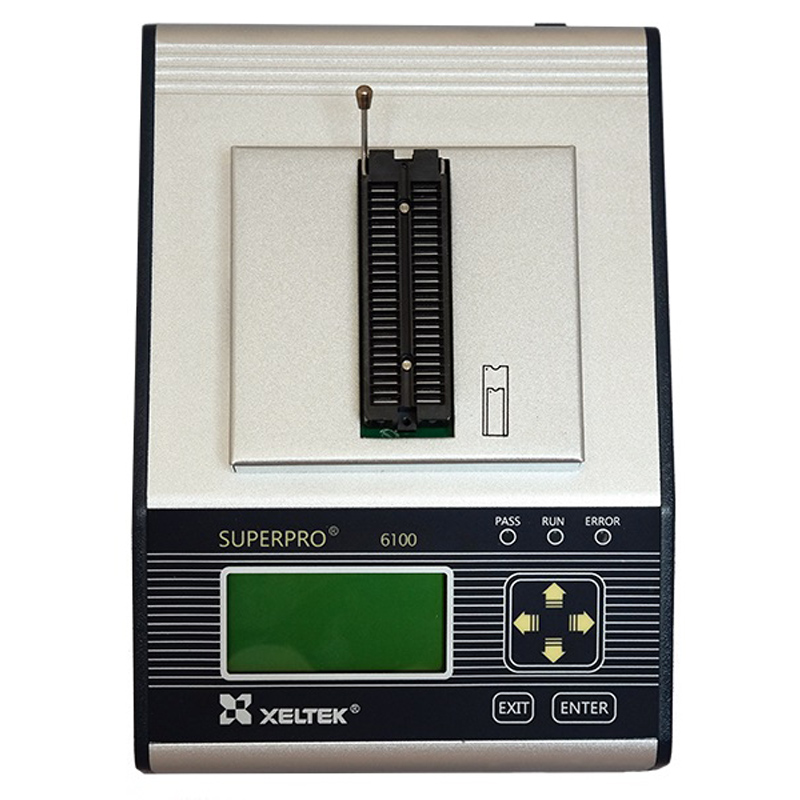

DIP Socket Adapter:
- DX0001 (SuperPro 6100N and SuperPro 6104NGP)
- GX0001(SuperPro 7500 and SuperPro 7504)
Specifications
Hardware And Electrical Specifications
| Devices Supported | EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU |
|---|---|
| Package Types Supported | DIP, SDIP, PLCC, JLCC, PGA, LGA, SOIC, SOJ, SOT, QFP, TQFP, PQFP, VQFP, MQFP, LQFP, TSOP, SOP, TSOPII, PSOP, SSOP, TSSOP, SON, EBGA, FBGA, FTBGA, VFBGA, μBGA, CSP, SCSP, QFN, HVQFN etc. |

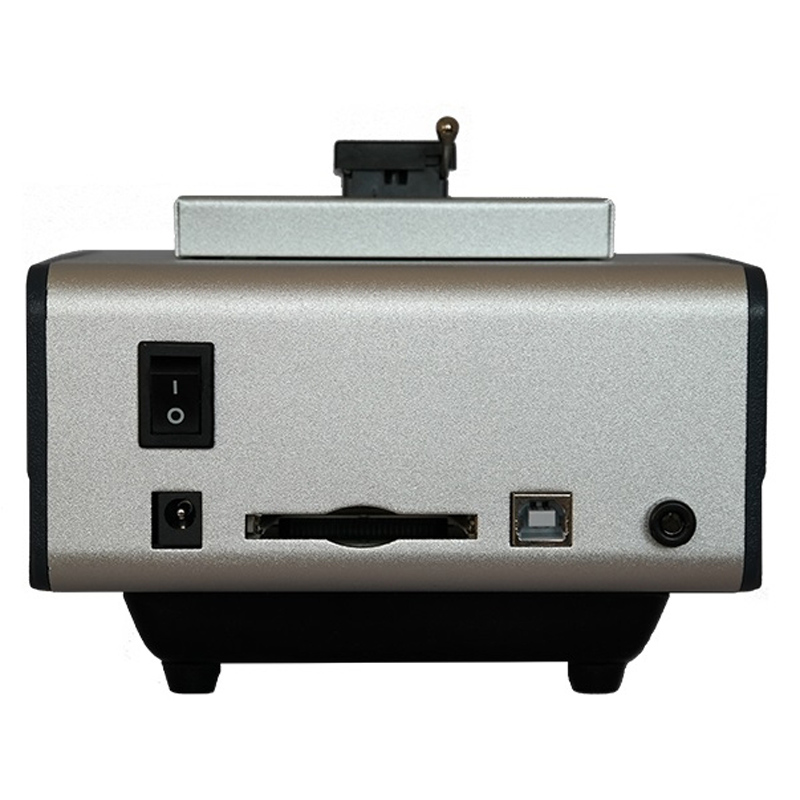

| PC Interface | USB 2.0 |
| Stand-Alone Memory |
Compact FLASH Card |
| Power Supply | AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A |
| Dimensions |
Main unit: 148(L) x 216(W) x 94(H) mm Package: 301(L) x 252(W) x 145(H) mm |
| Weight |
Main unit: Weight 3.5 lbs (1.6 Kg) Package: Weight 6.2 lbs (2.8Kg) |
Expanded Features
- Operate multiple units to construct a concurrent multi-programming system. 1-15 units for flexible volume production.
- Support devices with Vcc from 1.2V - 5V.
- Support files up to 256 GB
- Over-current and over-voltage protection for safety of the chip and programmer hardware
- Only IC manufacturer approved programming algorithms used for high reliability.

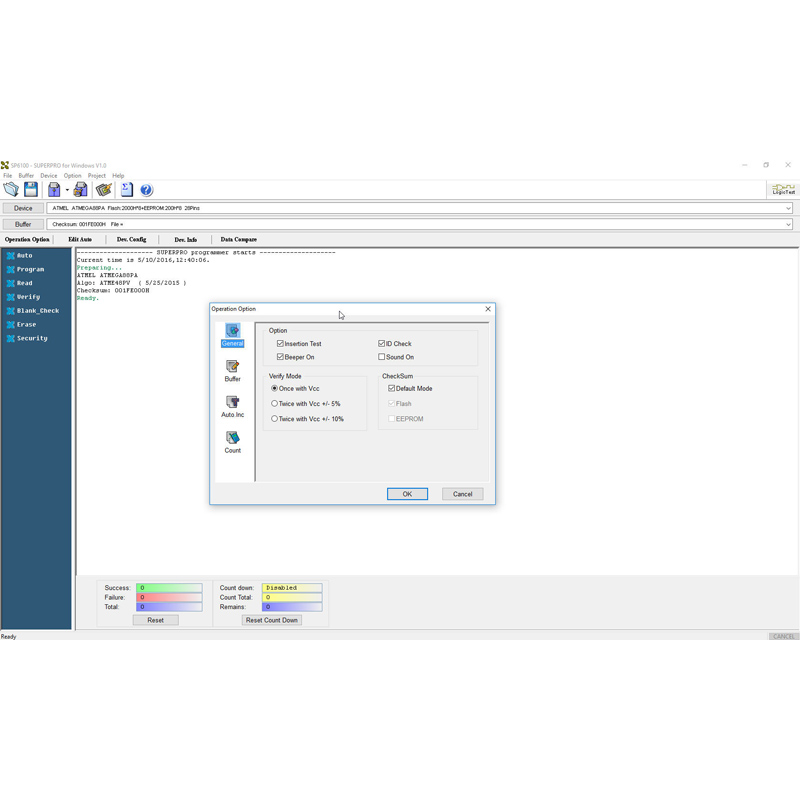

- Vcc verification (at +5% ~ 5% and +10% ~ 10%) enhances programming reliability.
