Lowest Cost Automated Programming System in Market

SuperBot automated programmers are the most affordable and high value systems
in the industry. High volume and extensive production experience enables the
programmers to be the most competitive in terms of quality, price, and value in the
programming industry.

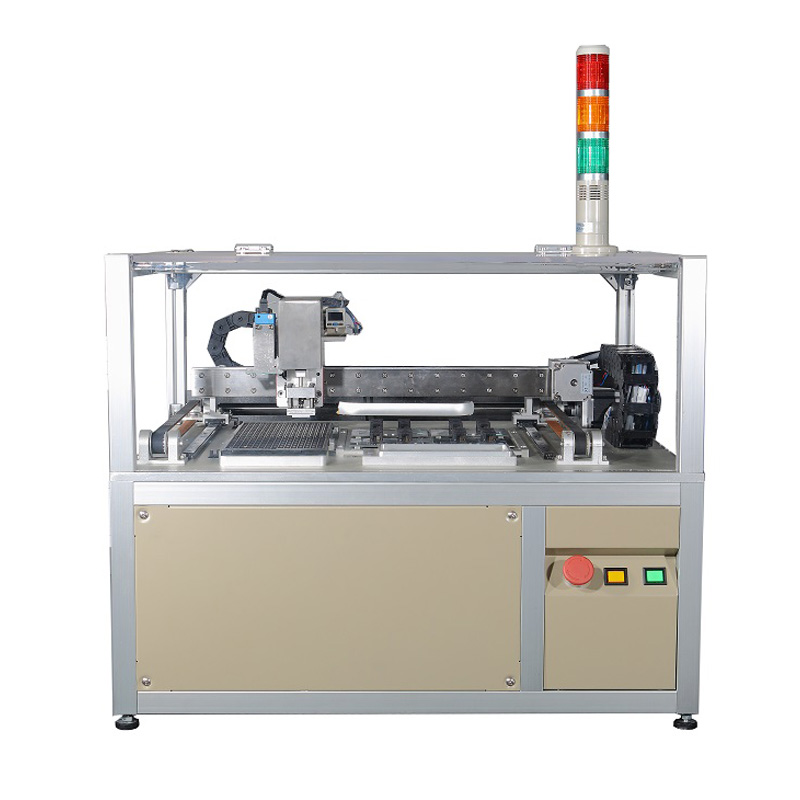

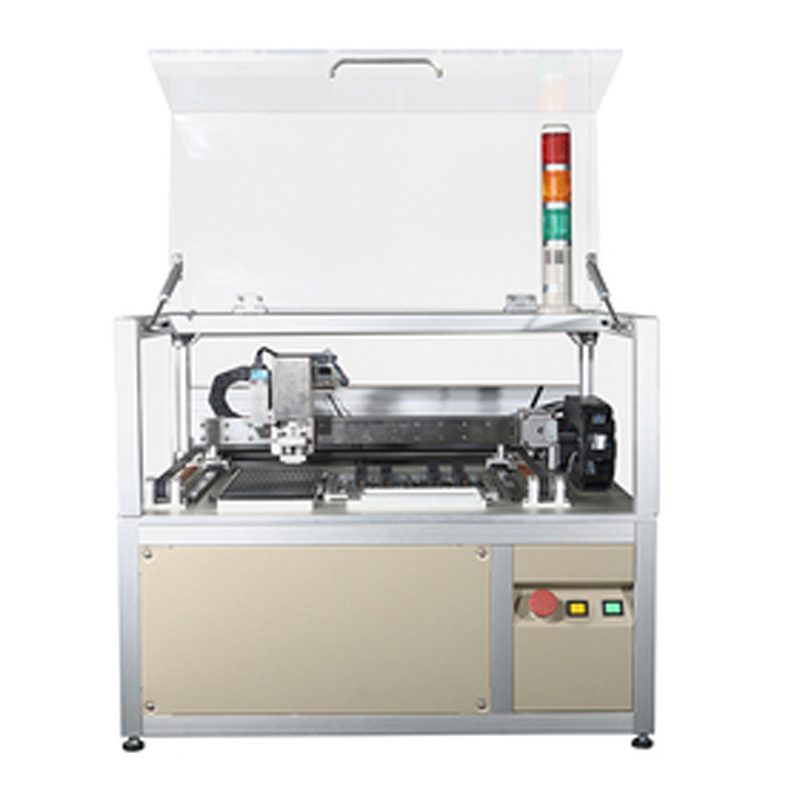

Compact Desktop Design with Small Footprint

SuperBOT-4 has desktop design, small footprint and built-in mute vacuum pump,
no external source of air is needed. Suitable for almost any customer's work
environment, including office buildings.

High Throughput

SuperBot 4 is based on a high performance servo system that can program up to
600 UPH (units per hour) and is suitable for both small and large capacity devices.

High Performance Programmers

SuperBot 4 is equipped with four SuperPro 7500 high speed universal
programmers. Depending on the device programmed, each SuperPro 7500 can
have up to 4 sockets with a total of up to 16 sockets in the system. Most
programmers in the market use technology which is up to 10 years old. The best
current hardware technology is to use a high speed MCU chip built inside the
programmer. SuperPro 7500 programmers employ a very high-speed MCU chip
producing not only reliable programming algorithms but also increasing
programming speed. Utilization of ARM11 32bit MCU combined with an internal
Linux operating system makes them the most advanced and versatile
programmers in the industry.

LAN Operation

Most volume programming applications need programmers to be operated
remotely and this can be achieved by using the LAN port on SuperBOT
programmers. Programmers can be connected to a local network and be remotely
controlled by any computer on the network via LAN (100M) port. LAN port enables
remote project loading, quality monitoring, volume control, file security. Technical
department can remote control programming operations and processes, including
downloading project file, command execution, project settings, and obtain real time
information to achieve production goals. Remote network management provides
the most protection for intellectual property. Project data and files are never shared
with operators because files are remotely loaded by authorized engineers.

The Most Durable and Reliable Systems in the Industry

China is the hub of the world Electronics manufacturing and Xeltek automated
programmers are widely installed at most major Electronic manufacturing plants with
multiple installations at many locations. Most companies run production 24 hours/day
and 7 days/week programming millions of devices per year. Xeltek automated
programmers have been refined to run non-stop, withstand harsh and battle-ground
like environment.

Largest Device Support

Located in Silicon Valley, we keep good relationships with many major IC companies
that are important for us to continuously support new devices. Xeltek currently supports
more than 100,200 devices, which is the largest device library in the programming
industry. Requested device algorithms can be added within a week - average lead time
from other manufacturers is over two months.

Powerful and Intelligent Software

User-friendly software with graphical interface cuts learning curve. Setup data saved for
next operation. Software also includes resourceful log table, convenient production and
quality tracking, authorization, flexible stopping strategy for bad socket or module.

Supports Tray-In and Tray-Out

Standard I/O device of the machine. Operator will replace the programmed tray from the
SuperBot machine manually after the full tray is programmed. Customer does not need
to buy any other accessory while using this option.

Short Change-Over Time

Socket adapters are easily interchangeable and socket positioning can be performed
automatically. Use of project files further reduces changeover time.

Better Yield

Our semiconductor manufacturer approved algorithms, precision and clean signals
guarantee high programming yield. Algorithms are performed with state machine
architecture constructed with FPGA to achieve an ultrahigh programming speed.
Along with the low voltage components selection, they program devices down to 1.2
volts.

Chip Size

Devices between 2x2mm to 30x30mm can be programmed. SuperBot 4 supports the
SOT23 package which measures only 2x3mm. We do not know of any other
manufacturer who supports such a small package type and this is a testimony that
SuperBot 4 excels in its accuracy and precision.

Socket Cost and Investment

Cost recovery in short period with low investment in the beginning as socket adapters
are universal for up to 144 pin chips. For most of competitor programmers, user has to
invest on device specific socket adapters for chips greater than 48 pins thus increasing
cost in long term.

Technical Support

More than 30 engineers are devoted to developing new programmers, socket adapters
and device algorithms. Engineers are fluent in English and provide excellent direct
support through emails, telephone, live chat an online ticketing system. With our locations
in the United Stated and China, providing 17 hours of continuous support worldwide daily,
we are confident to be able to provide support anywhere in the world.

• 4ea Superpro7500 programmer

• X, Y, Z Axis movement

• Vacuum pump

• Calibration camera

• One pick up nozzle

• Socket Adapters (Up to 4ea single

• or 4gang socket adapters )

XYZ System, Belt drive + rail. Single nozzle.

X axis: ±0.05mm; Y axis: ±0.05mm; Z axis: ±0.02mm

X axis: 400mm; Y axis: 350mm; Z axis: 30mm

Minimum: 3x3mm; Maximoum: 30x30mm

600 Units Per Hour

Downward CCD camera for sockets / pick & place spots positioning.
512×512 pixels

30x30mm

One tray each time. Change tray manually (standard equipped).

EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM,
FLASH memory (NOR & NAND), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware
HUB, Microcontroller, MCU, etc.

DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII,
PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP etc.

Electrical Spec. of the AC adapter: AC input 90V to 250V, 50/60Hz, DC output AC
220V; Power: 500W

500W

Main Machine

Size: 750(L)×600(W)×622(H) mm

Main machine: 120 Kg
