CS701
Part No.: MPCS-CS701
This is rated at 300V RMS isolation, and offers output levels from 1 mVp-p to 7 V p-p.
產品介紹

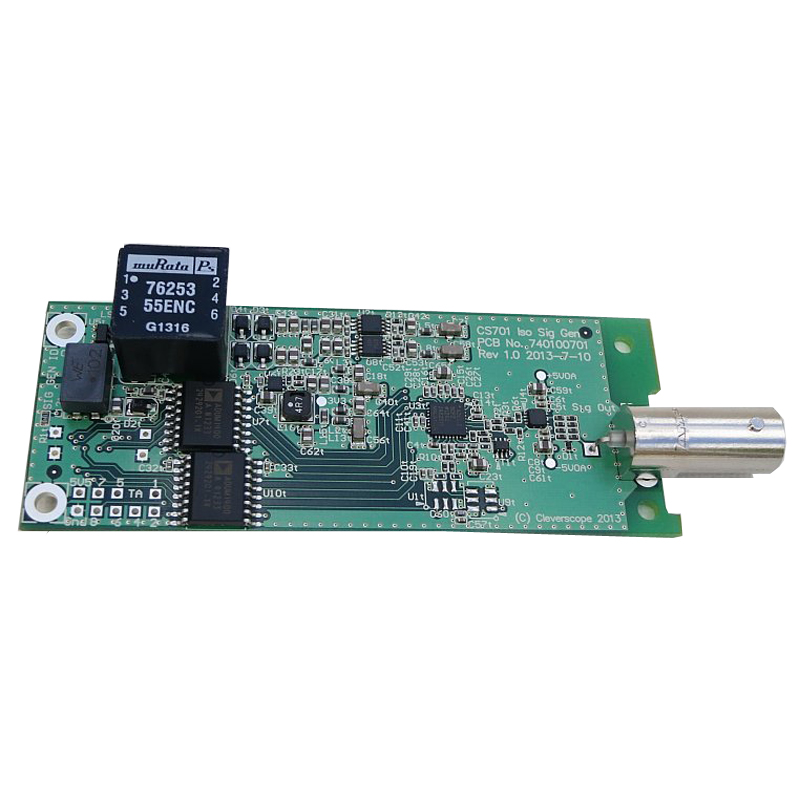

CS701
Isolated Signal Generator (0-65MHz, sine wave only) for serial numbers above 4000. The CS701 is rated at 300V RMS isolation (class III), and offers output levels from 1 mVp-p to 7 V p-p. You can use the CS701 for Power Supply FRA without needing an isolation injection transformer.
The CS701 Isolated Signal Generator is a plug-in module for the CS328A and CS320A Oscilloscopes. If you order at the same time as a CS328A or CS320A, the module will be factory fitted. You can use the CS701 for Power Supply FRA without needing an isolation injection transformer.
The CS701 Signal generator generates sine waveforms only. The amplitude may be varied between 0 and 7V pk-pk, in 1mV steps. The offset maybe varied from –3.5 to +3.5V in 1 mV steps. The generator can be FSK and PSK modulated, and Frequency swept. The sweep may be synchronized with the Spectrum Analyser to carry out transfer response measurement. The CS701 is supplied with an external 60 MHz BNC-BNC anti-aliasing filter for when the need arises. The filter is not required for FRA work.
Specifications
| Item | Value | |
|---|---|---|
| Frequency Range | 0 - 65 MHz | |
| Frequency Step |
50 mHz with 50 kHz upper frequency limit
10 Hz with 65 MHz upper frequency limit
|
|
| DAC resolution | 14 bit | |
| Output Impedance | 50 ohms | |
| Freq Accuracy | 50 ppm | |
| SFDR to Nyquist | 87 dBc at 10 MHz Fout | |
| Phase Noise | 1kHz offset, -150 dBc/Hz | |
| IMD | 88 dBc at 10 MHz Fout | |
| Amplitude Range | 0 - 7 Vp-p | |
| Offset Range | 0 - +/-3.5V (with clipping at +/-3.6V) | |
| AWG |
4096 samples maximum at 167.772 MHz sampling rate down to
4096 samples at 52.42875 kHz sampling rate
Continuous at 50 ksps
|
|
| Modulation | Phase, frequency, amplitude | |
| Isolation | 300 V RMS, Class III | |
| Immunity | Common-mode transient immunity of > 25 kV/us | |
| Iso Capacitance | 7.3 pF | |
