CS700A

Part No.: MPCS-CS700A
The CS700 and CS700A have similar specifications but will only work in the relevant systems.

產品介紹

CS700A

Signal Generator (0-10MHz, Sine, Square, Triangle)

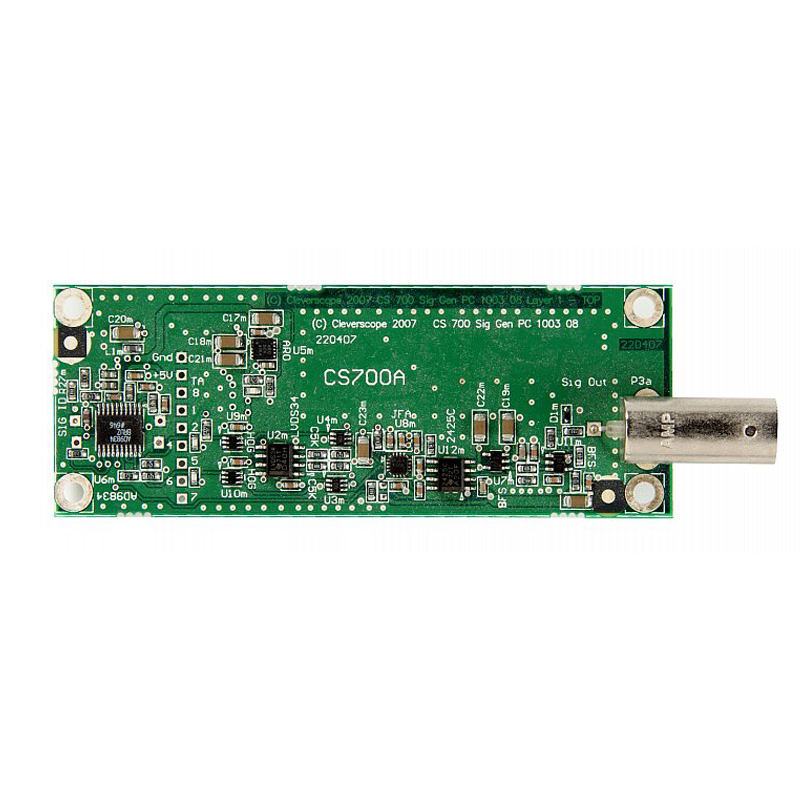

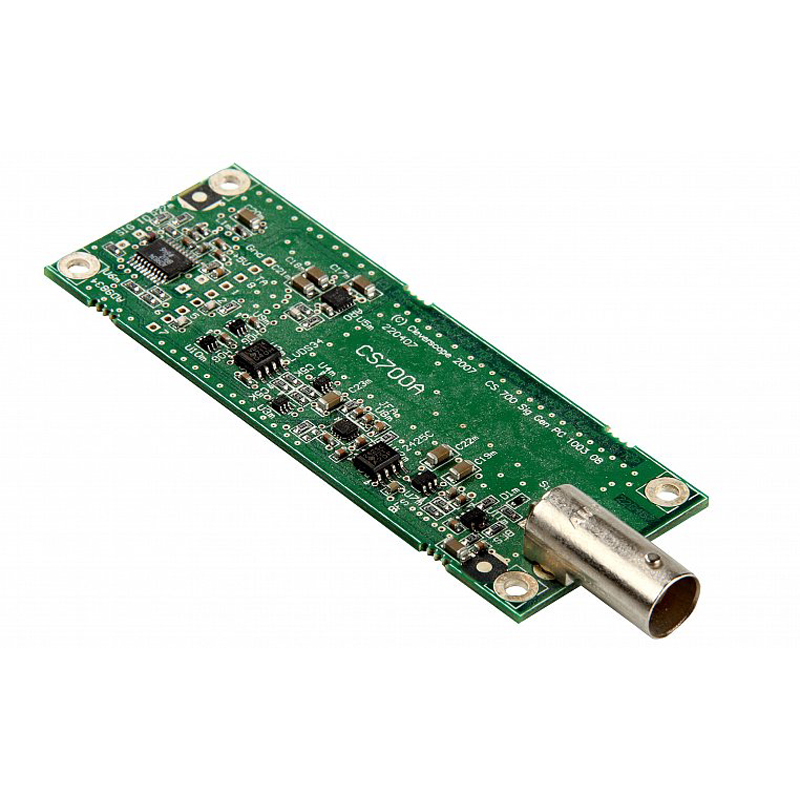

The CS700A Signal Generator is a plug-in module for the CS328A and CS320A Oscilloscopes. If you order at the same time as a CS328A or CS320A, the module will be factory fitted.

The CS700 and CS700A have similar specifications but will only work in the relevant systems. "A" versions have serial numbers starting from 4000

The CS700A Signal generator generates sine, square and triangle output waveforms. The amplitude may be varied between 0 and 5V pk-pk, in 10mV steps. The offset maybe varied from –4 to +4V in 10 mV steps. The generator can be FSK and PSK modulated, and Frequency swept. The sweep may be synchronized with the Spectrum Analyser to carry out transfer response measurement. Two of the digital inputs may be allocated to switch between either of the two frequencies or two phases.


Specifications:

Item Value
Function Generate Sine, Square or Triangle output
signals
Generation Method Direct Digital Synthesis
Output Sampling Rate 50 MSa/sec
Frequency Range
Sine, Square: 0.003 Hz – 10 MHz
Triangle: 0.003Hz – 1 MHz
Resolution 0.003Hz (<1KHz) 0.2 Hz (>1kHz)
Accuracy 50 ppm in 1 year, 0-40 deg C
Output Voltage Range 100mV – 5V p-p including DC offset
Output Voltage Resolution 10 mV
Output Impedance 50 ohm
Output Voltage Offset Range -4 to +4V
Output Voltage Offset Resolution 10 mV
Frequency Shift Range Any two frequencies in range 0.2Hz – 10 MHz
Phase Shift Range Any phase difference between 0 – 360 degrees
Signal to Noise Ratio -60 dBc typical
Total Harmonic Distortion
0 – 1 MHz : < -65 dBc
> 1 MHz: < -35 dBc
Amplitude Flatness ± 0.2 dB
Amplitude Accuracy ± 2%
Square Wave Rise/Fall Times < 12 ns
Protection
Short Circuit Protected
± 10V peak overdrive < 1 min
