CS1031
Part No.: MPCS-CS1031
For making isolated measurements between any two points in a system.
產品介紹
CS1031
Differential Probe. 50 MHz bandwidth, 6500V maximum operating voltage, four ranges x100, x200, x500 and x1000.

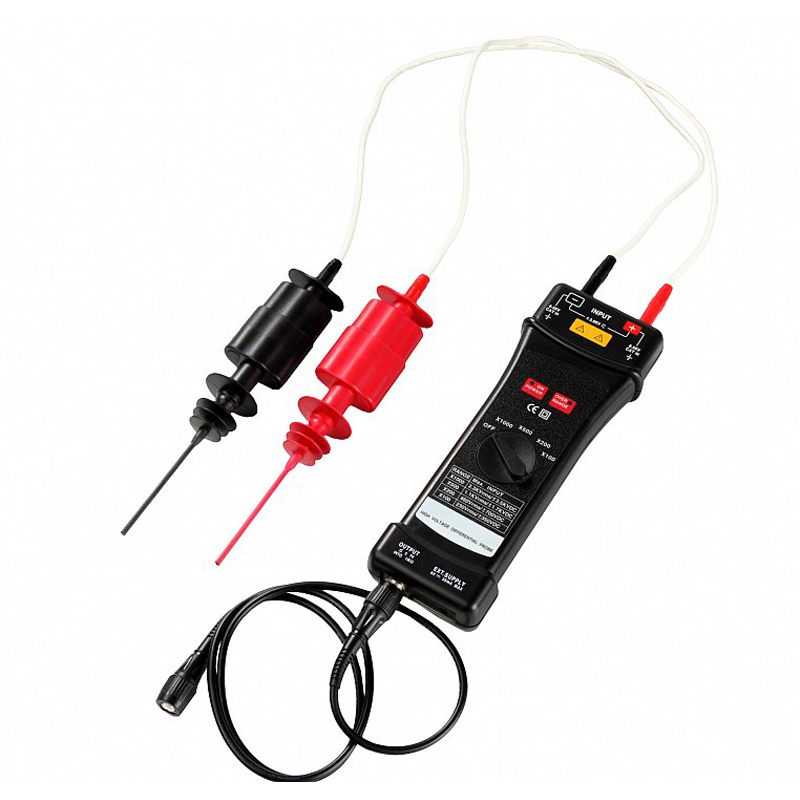

The CS1031 Differential probe is a switchable x100, x200, x500 and x1000 50 MHz differential probe for making isolated measurements between any two points in a system.
Specifications:
| Item | Position x 100 | Position x 200 | Position x 500 | Position x 1000 |
|---|---|---|---|---|
|
Attenuation - 1MΩ |
100:1 | 200:1 | 500:1 | 1000:1 |
|
Attenuation - 50Ω |
200:1 | 400:1 | 1000:1 | 2000:1 |
| Bandwidth | DC to 25 MHz | DC to 50 MHz | DC to 50 MHz | DC to 50 MHz |
| Input Impedance |
4 MΩ 1.2 pF between inputs
2 MΩ 2.3 pF between inputs and ground
|
|||
| Max Op Voltage |
±650V (DC +peak AC) |
±1300V (DC +peak AC) |
±3250V (DC +peak AC) |
±6500V (DC +peak AC) |
| Max V to Ground | 6500 V (DC +peak AC). | |||
|
Output Impedance |
50Ω | |||
| Noise | <2 mV rms into 50Ω load | |||
| CMRR |
50/60Hz:
100Hz:
1MHz:
|
>10,000:1 >1,000:1 >300:1 |
||
| Safety | Meets IEC1010 Cat 1. EN61010, UL3111 | |||
| Power | One internal 9V PP3 battery or external 6-9V DC. | |||
| Size | 200 x 55 x 30 mm (plastic case) | |||
| Weight | 245 gm (plastic case) | |||
| Cable Length | 1 m | |||
Accessories that are included with the differential probe are:Carry Bag, Instruction Manual, Large Crocodile Clips, Long Grabber Clips, Test leads, BNC-BNC cable, Power supply
