CS1008
Analog Probe 200x 300MHz, 1.5kVrms

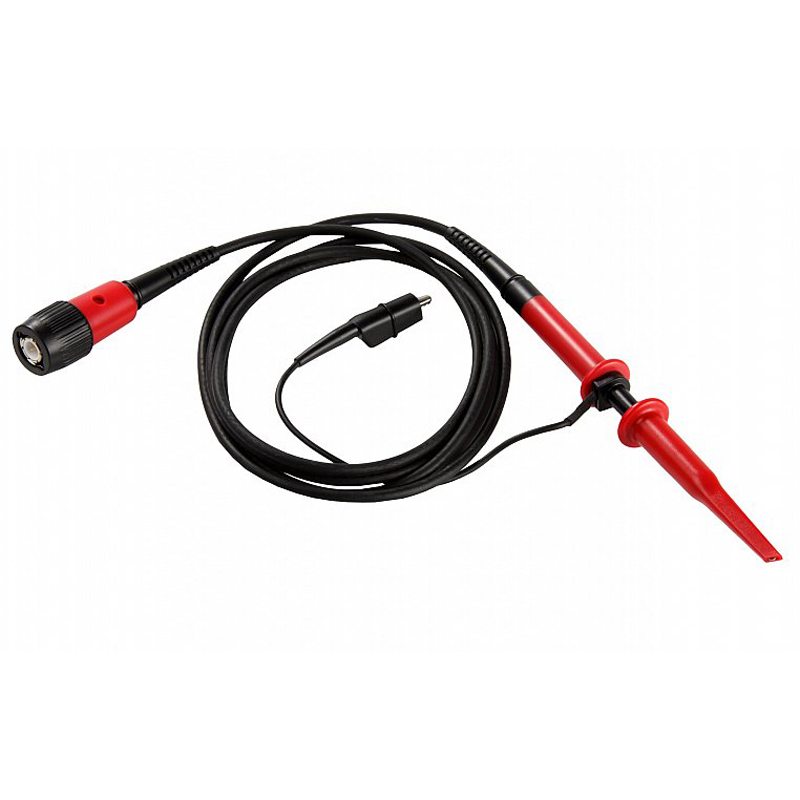

The CS1008 Analog probe is a 200x 300 MHz oscilloscope probe.
Specifications:
| Item | Performance | |
|---|---|---|
| Attenuation Ratio | 1:200 | |
| Bandwidth | DC to 300 MHz | |
| Rise Time | 1.4 ns | |
| Input Resistance | 100 MΩ | |
| Input Capacitance | 5.5 pF | |
| Compensation Range | 10 to 35 pF | |
| Working Voltage | Cat II:1.5kVrms, 2kV DC | |
| Safety | Meets IEC1010-1 Cat II. | |
| Cable Length | 1.3 m | |
Accessories that are included with probe are:Channel Identifier Clip, Sprung Hook, Ground lead, Insulating Tip, Adjusting Tool, Measuring Tip, Sprung Earth Tip.
