CS1003
Analog Probe 1000x 50MHz, 12kVrms

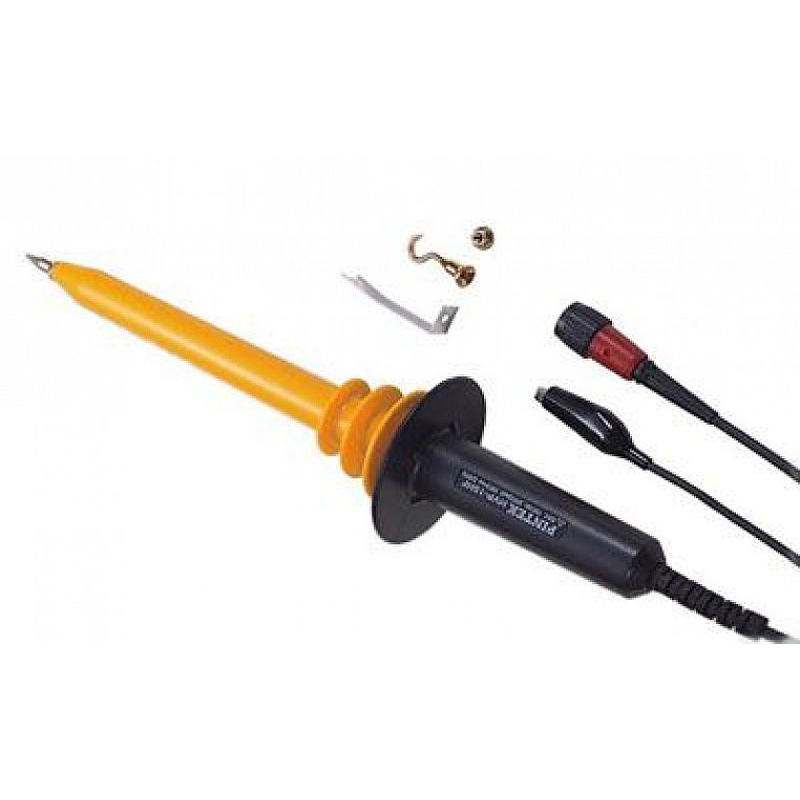

The CS1003 Analog probe is a 1000x 50 MHz oscilloscope probe.
Specifications:
| Item | Performance | ||
|---|---|---|---|
| Attenuation Ratio | 1:1000 | ||
| Bandwidth | DC to 50 MHz | ||
| Rise Time | <7 ns | ||
| Input Resistance | 100MΩ | ||
| Input Capacitance | Approx 3 pF | ||
| Compensation Range | 5pF to 50pF | ||
| Working Voltage | DC+AC Pulse:18kV; Sine Wave:12kV rms | ||
| Safety | Meets IEC1010-1 Cat 1. | ||
| Cable Length | 2 m | ||
Accessories that are included with probe are:Channel Identifier Clip, Sprung Hook, Ground lead, Insulating Tip, Adjusting Tool, Measuring Tip, Sprung Earth Tip.
