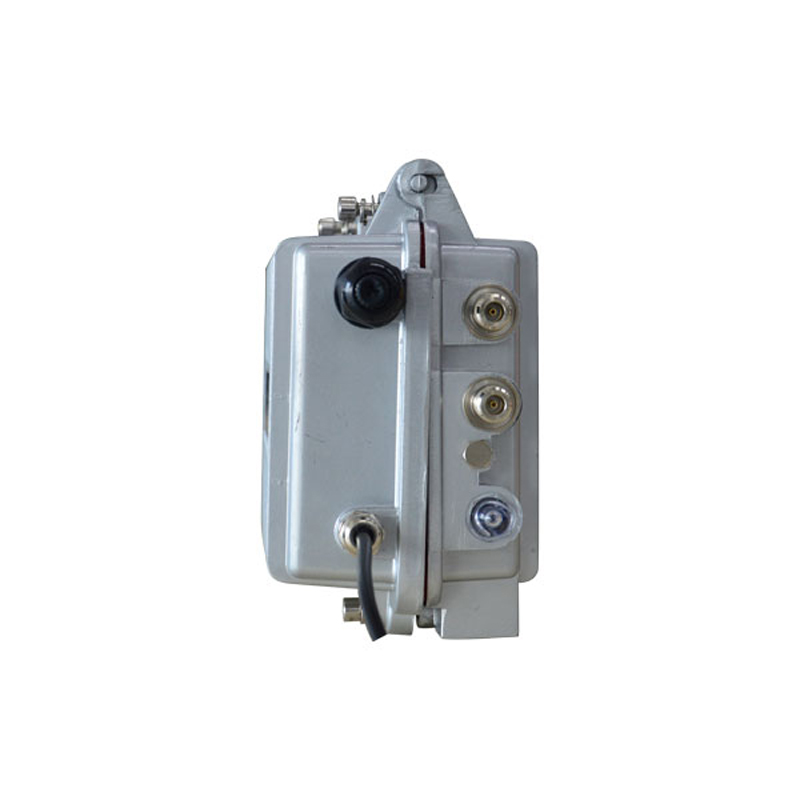

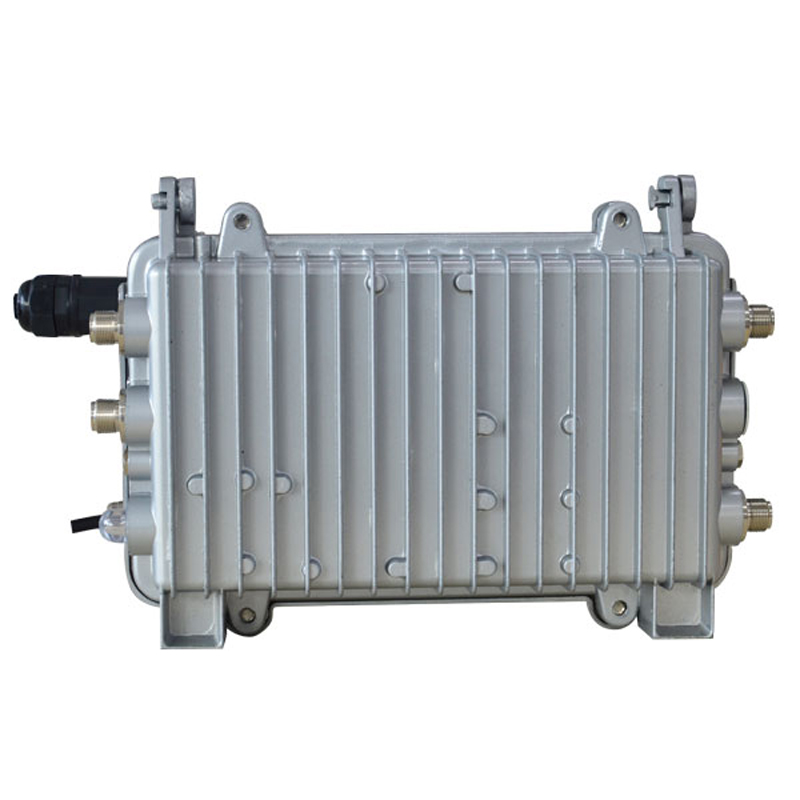

F8L10GW

Part No.: MPFF-IoT-WL-F8L10GW
F8L10GW LoRaWAN gateway is a wireless communication gateway/base station based on LoRaWAN protocol and access LoRaWAN terminal of various application

產品介紹

F8L10GW LoRawan Base Station Gateways

  • High-performance industrial-grade wireless module
  • Adopt high-performance industrial multi channel LoRaWAN base station / gateway RF chip
  • Provide standard Ethernet and WIFI interface, can be directly connected to Ethernet devices and WIFI devices
  • Support LoRaWAN protocol wireless data transmission
  • WIFI support WEP, WPA, WPA2 and other encryption style, MAC address filtering and other functions
  • Complete anti-drop mechanism to ensure data terminal always online

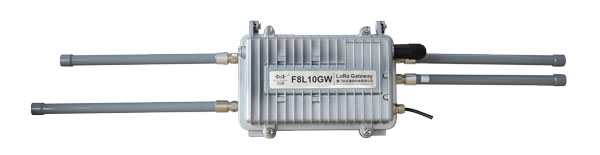

Features

  F8L10GW LoRaWAN gateway is a wireless communication gateway/LoRa base station based on LoRaWAN protocol and access LoRaWAN terminal of various application nodes,the collected data is transmitted to the cloud server through 3G / 4G or wired Ethernet.

    It adopts 32 bits high-performance industrial processors and industrial-grade wireless modules embedded real-time operating system, while providing 1 Ethernet LAN, 1 WIFI interface, it supports WIFI wireless configuration management and online upgrade, and supports GPS and 220V power supply , POE power supply, solar energy, or DC power supply and other ways.

The F8L10GW LoRa base station complies with the standard LoRaWAN protocol an work with  standard LoRaWAN terminals and Network Servers.

    The LoRa base station RF 3G 4G Gateways has been widely used in the M2M industry in the IoT industrial chain, such as smart grid, intelligent transportation, industrial automation, intelligent building, fire protection, public safety.



Reference

F8L10GW
Characteristics
  • Communication Network: Start topology
  • LoRaWAN Protocol: ClassA、ClassB、ClassC
  • Working Frequency：EU433、CN470-510、CN779-787、EU863-870、US902-928、AU915-928、AS923、KR920-923
  • Communication Distance(Outdoor)：6km
  • Max TX Power:25±2dBm
  • RX Sensitivity：max -140dbm @LoRa ; -70dbm @WIFI
  • Communication Bandwidth：125kHz、250kHz、500kHz
  • 8 upstream channel,1 downstream channel
  • No data-loss and no relay wireless communication
  • Speed:Link Adaptive Speed
  • Work Mode:Support different frequency and same frequency
  • Location:GPS, Beidou
  • Report to Server:3G/4G, Wired network
  • Wireless Management:WIFI management and upgrade
  • Local Storage:32G TF card
Antenna Interface

I-pex to N type, external

  • LoRa antenna, interface: N-type female, LoRa fibre-glass antenna ,2dBi gain
  • 4G antenn,interface:N-type female, 4G fibre-glass antenna,3dBi gain
  • WIFI antenna,interface: N-type female,2.4G fibre-glass antenna,3dBi gain
  • GPS antenna, interface:-type female,GPS fibre-glass antenna,4dBi gain
Power
  • Power way：AC220、POE、Solar power
  • POE port supports auto 10/100 Base-T
  • POE standard：IEEE802.3af/IEEE802.3at
Consumption
  • Stand by：
    • Average Current≤140mA@12V
  • Communication：
    • Transmit current≤550mA@12V
    • Receive current≤420mA@12V
Physical Characteristics
  • Size：289.4x217.5x115.0 mm(No antennas and accessories)
  • Weight：about 2700g（No antennas, accessories and POE power）
  • Installation：Provide the installation accessory, wall-mounted or pole-mounted
Others
  • Working temperature range：-40~+85℃
  • Storing temperature range：-40~+125ºC (-40~+257℉)
  • Humidity：95%(No freezing)
