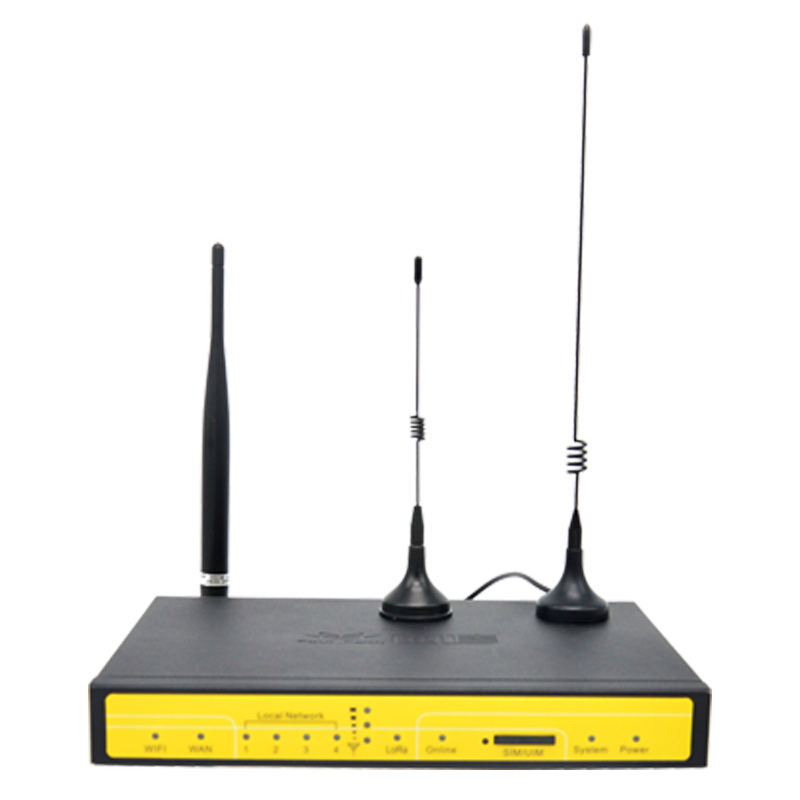

F8926-L Series IoT Wireless LTE LoRa Router

• With 2.5G/3G/4G +LoRa Dual Wireless Link
• Powerful Network Switching Capability
• Ultra-High Receiver Sensitivity, Reaching a Staggering -148 dBm
• Industrial-Grade High-Speed 3G 4G Module
• Wi-Fi Hotspot Coverage. High Data Throughput
• Supports APN/VPDN private networks
• Suitable For Various Kinds of Non-Human On-Site Industrial Applications. Offering 24/7 Stability
• Controllable Bandwidth Resource Allocation
• Remote Equipment Configuration
• Communication Distance >11.5 KM
• F3436 3G Industrial WCDMA Router
• F3836 FDD-LTE Industrial 4G Router

Features

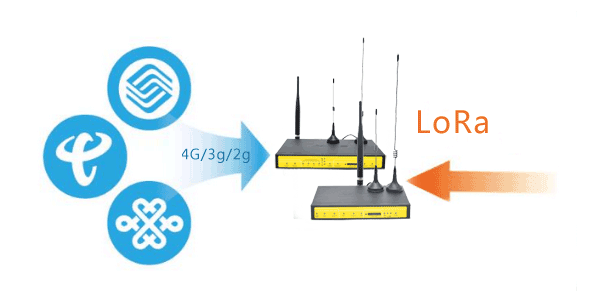

With 2.5G/3G/4G +LoRa Dual Wireless Link

The F8926-L Series IOT LoRa Router has 2.5G/3G/4G public network wireless communication plus LoRa wireless communications. It is the perfect solution to short distance wireless transmissions.

LoRa Field Tested Communication Distance >11.5 KM, Industry Leading

The LoRa module uses a LoRa modulation technology, achieved through many years of experience in wireless communication and carefully re-adjusting radio frequencies. The module can achieve a communications distance of >11.5 KM, perfectly solving the problem of transmitting data over short distances. Therefore providing a reliable and strong networking application to the wireless industry.

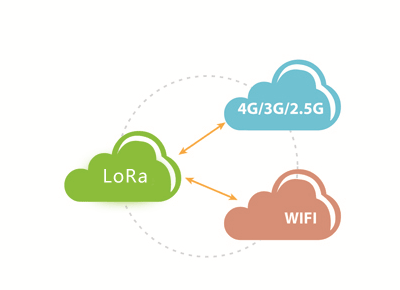

Powerful Network Switching Capability

Using a LoRa to TCP/IP protocol (2.5G/3G/4G networks), to achieve two kinds of protocol networking.

Industrial-Grade High-Speed 4G Module. Strong Wireless Communications. Large Real-Time Data Transfers

Using an industrial-grade high-speed 4G wireless communication module, configured with a 32-bit high-performance processor, FLASH and double the RAM, resulting in a big increase in data transmission speeds.

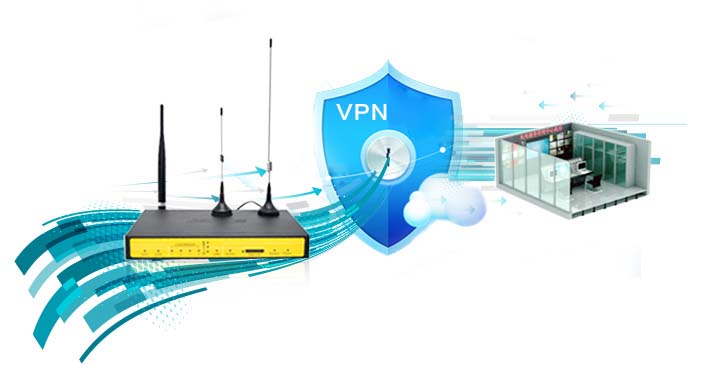

Provides Additional Security Measures. Data Transmission Up To Financial-Level Standards

It supports APN/VPDN private networks, and also supports VPN connections such as IPSEC, PPTP, L2TP and OpenVPN. The VPN client and server functions are both provided. We have added an extra layer of protection on the private network during data transfers, ensuring full protection of data.

Suitable For Various Kinds of Non-Human On-Site Industrial Applications. Offering 24/7 Stability

With an intelligent Anti-Disconnection mechanism, the wireless communications is always online. It is also resistant to extreme temperatures, moisture, lightning and various other natural environments. Along with a high level EMC protection mechanism that allows the module to continue functioning around strong electro magnetic fields.

Ultra-High Receiver Sensitivity, Reaching a Staggering -148 dBm

LoRa modulation technology improves the signal and creates a unique spectral widening process. The receiver sensitivity reaches a level of -148 dBm. It can be used in long-distance transmissions and provides reliability for the required occasion.

Wi-Fi Hotspot Coverage. High Data Throughput. Providing Protection For Value-Added Services

Features a powerful Wi-Fi hotspot feature so that each terminal device is a hotspot, providing Wi-Fi networking services signal in a 100 meters range. It can allow the simultaneous connections of more than 60 devices, and provide stable high-speed networking services to all the connected devices.

Controllable Bandwidth Resource Allocation

With bandwidth traffic control, traffic logging, real-time network speed display according to a pre-customized allocation model for management. Making the wireless transmission on multiple devices more intelligent and efficient.

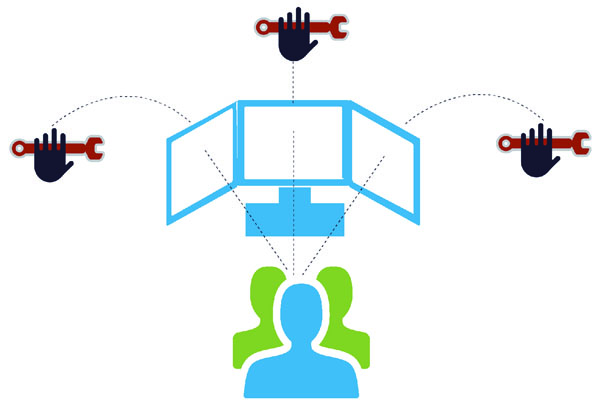

Remote Equipment Configuration, Over-The-Air Updates and Maintenance

All the communication terminals can be connected to the remote control platform. With large amounts of devices scattered around different areas, all testing, configuration, diagnosis, maintenance and control can all be managed remotely.

Reference

Ordering Information

LoRa Parameter

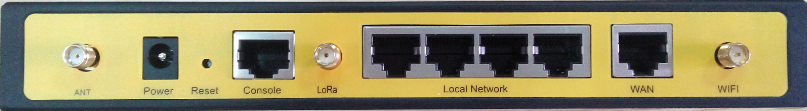

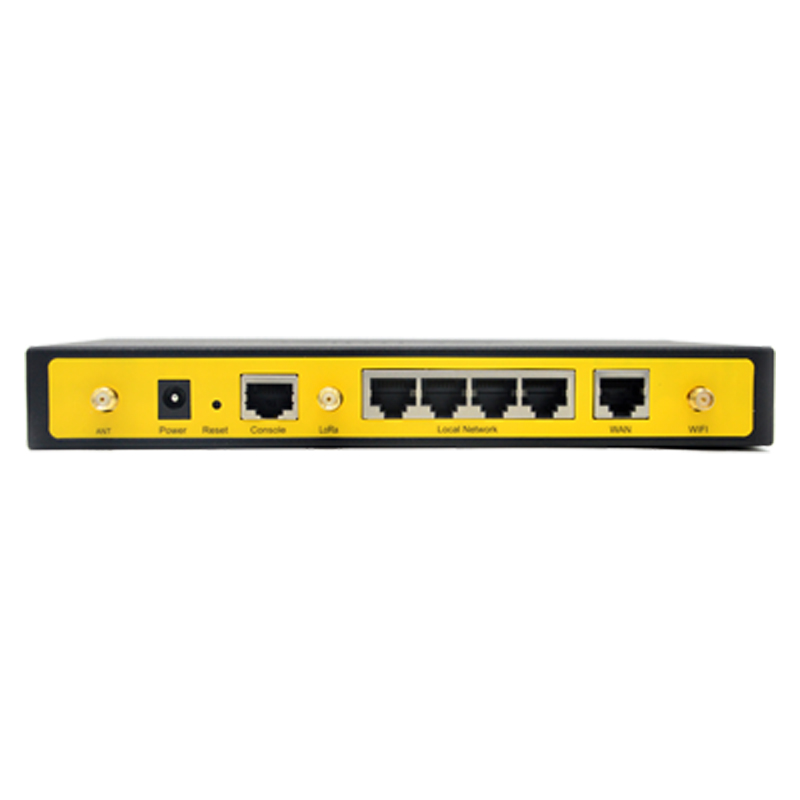

Interface Type

Item	Content
WAN	1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN	4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial	1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6, 7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps

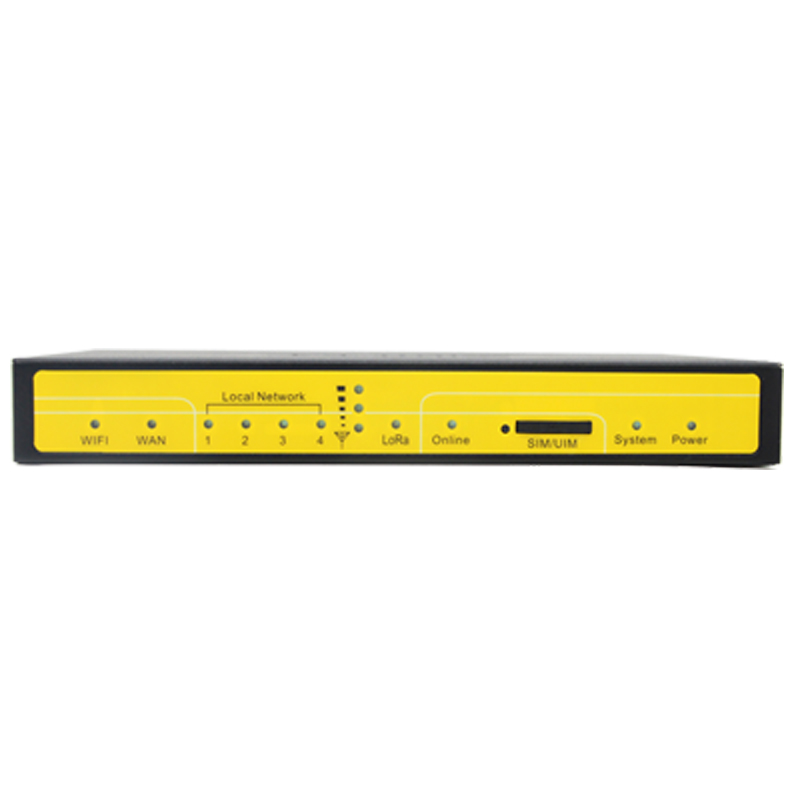

Indicator	"Power", "System", "Online", "LoRa", " Local Network ", "WAN", "WIFI", "Signal Strength"
Antenna	Cellular:1 Standard SMA female interface, 50 ohm, lighting protection(optional) LoRa :1 Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: 1 Standard SMA male interface, 50 ohm, lighting protection(optional)
SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
Power	Standard 3-PIN power jack, reverse-voltage and overvoltage protection
Reset	Restore the router to its original factory default settings
Note: There may be different components and interfaces in different model,please in kind prevail.
