F2203

Part No.: MPFF-IoT-WL-F2203
This is a F2X03 Cellular IP MODEM is a kind of cellular terminal device that provides SMS and CSD function by public network.

產品介紹

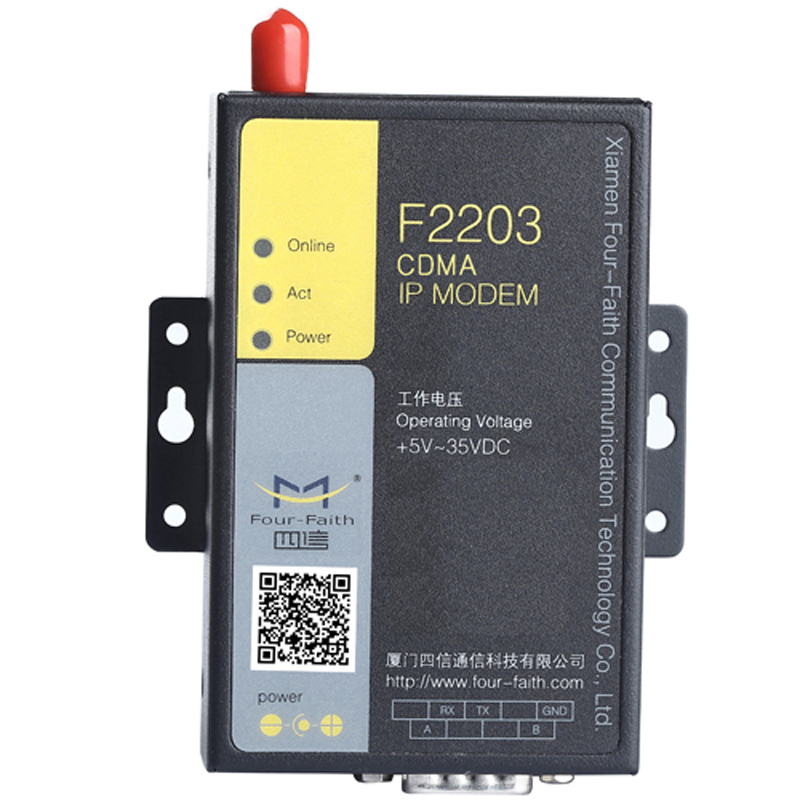

F2203 Industrial CDMA IP Modem

  • GPRS Network
  • Support APN/VPDN
  • Support auto recovery mechanism
  • Support multi online trigger ways, including SMS, ring and data
  • Support 5 data centers at the same time
  • RS232/RS485/RS422 port
  • Support double data centers, one main and another backup
  • Provide management software for remote management

Features

Reliable Network and Data Transparent Communication

High performance industrial grade wireless module, and highly stable and high accuracy component
Suitable for high temperature and cold environment, Support data transparent transmission, and is suitable for any standard or nonstandard user protocol





Interface

RS232/rs485 serial port, can be connected to serial device.




Wide Voltage Power Supply

5v~35v voltage, with over-voltage and over-current protection,more durable and more stable.




Multiple Data Center Synchronous Transmission

Support double data centers,one main and another backup.Support multi data centers and it can support 5 data centers at the same time.




Standard TCP/IP,

Designed with standard TCP/IP protocol stack




WDT

Support hardware and software WDT.






Provide management software for remote management

Convenient configuration and maintenance interface

Reference


F2203 CDMA IP MODEM


Item Content
Standard
and Band
CDMA2000 1xRTT 800 MHz, 450MHz(optional)
Bandwidth 153.6Kps
TX
power
<30dBm
RX
Sensitivity
<-104dBm

Hardware System


Item Content
CPU Industrial 16/32 bits CPU
FLASH 1MB(Extendable)
SRAM 256KB(Extendable)

Interface Type


Item Content
Serial
1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
Indicator “Power”, “ACT”, "Online”
Antenna Standard SMA female interface, 50 ohm, lighting protection(optional)
SIM/UIM Standard user card interface, support 1.8V/3V SIM/UIM card,15KV ESD protection built-in

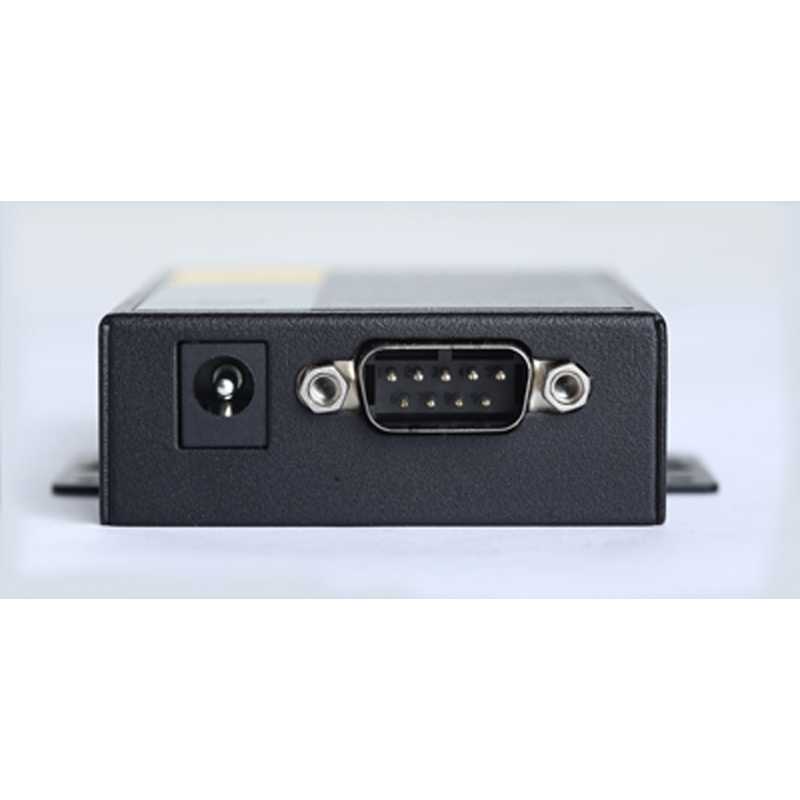

Power Standard 3-PIN power jack, reverse-voltage and over voltage protection
Note: There may be different components and interfaces in different model,please in kind prevail.

Power Supply


Item Content
Standard Power DC 12V/0.5A
Power Range DC 5~35V

Consumption


Working
Condition
Consumption
Standby 3G:40~55mA@12VDC  2G:36~40mA@12VDC
Communication 3G:88~190mA@12VDC  2G:62~68mA@12VDC

Physical Characteristics


Item Content
Housing Iron, providing IP30 protection
Dimensions 91x58.5x22 mm
Weight 205g

Environmental Limits


Item Content
Operating
Temperature
-25~+65ºC(-13~+149℉)
Extended
Operating
Temperature
-30~+75ºC(-22~+167℉)
Storage
Temperature
-40~+85ºC(-40~+185℉)
Operating
Humidity
95%

Ordering Information


Model No. Description
F2103 GPRS IP MODEM
F2203 CDMA IP MODEM
F2403 WCDMA IP MODEM
F2603 EVDO IP MODEM
