F1603

Part No.: MPFF-IoT-WL-F1603
This is a F1X03 Industrial Series Modem Support SMS, Dial-up and CSD function support standard RS232 port and APN/VPDN.

產品介紹

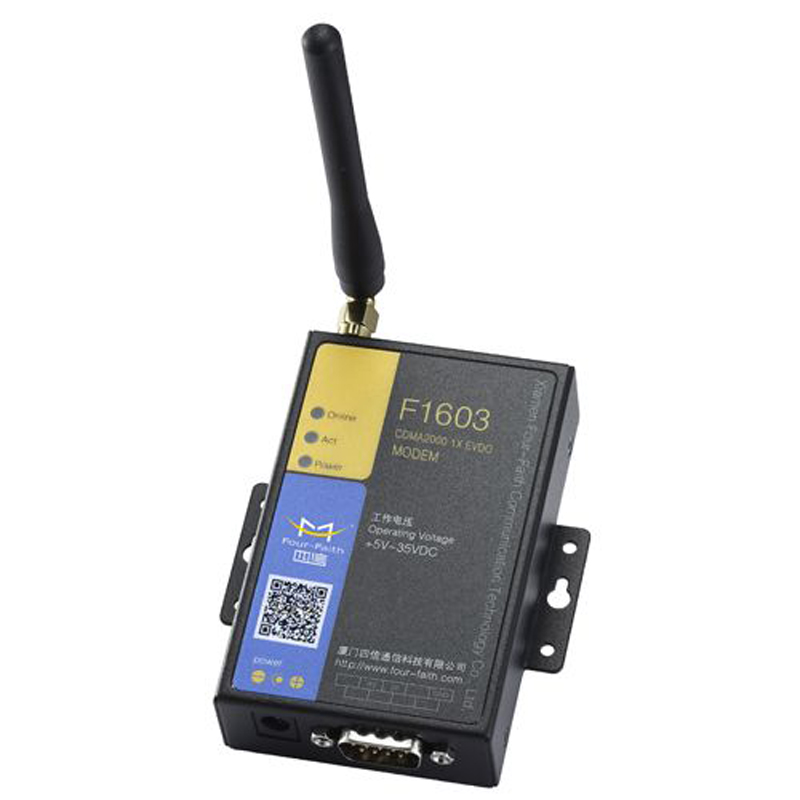

F1603 CDMA20001 X EVDO Modem

  • Support SMS, dial-up and CSD function
  • Power range: DC 5~35V
  • Support standard AT command
  • Support standard RS232 port
  • Support APN/VPDN

Features


F1003 GSM MODEM is a kind of cellular terminal device that provides SMS and CSD function by public GSM network.

It adopts high-powered industrial cellular module and supports RS232 port that can conveniently connect one device to a cellular network, allowing you to connect to your existing serial device.

It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.

Features and Benefits

  • Design for Industrial Application
  1. High-powered industrial cellular module
  2. Housing: iron, providing IP30 protection.
  3. Power range: DC 5~35V
  • Stability and Reliability
  1. RS232 port: 15KV ESD protection
  2. SIM/UIM port: 15KV ESD protection
  3. Power port: reverse-voltage and overvoltage protection
  4. Antenna port: lightning protection(optional)
  • Standard and Convenience
  1. Support standard RS232 port that can connect to a serial device directly
  2. Provide dial-up software that can make it always online
  3. Provide SMS tool software
  4. Support standard AT command
  • High-performance
  1. Support SMS, dial-up and CSD function
  2. Support APN/VPDN


Reference



Cellular Specification


Item Content
Cellular
Module
Industrial cellular module
Standard
and Band
CDMA2000 1X EVDO Rev A 800MHz,
800/1900MHz(optional),
450MHz (optional)
CDMA2000 1X RTT, IS-95 A/B
Bandwidth Download speed:3.1Mbps, upload speed:1.8Mbps
TX Power <23dBm
RX
Sensitivity
<-104dBm

Interface Type


Item Content
Serial

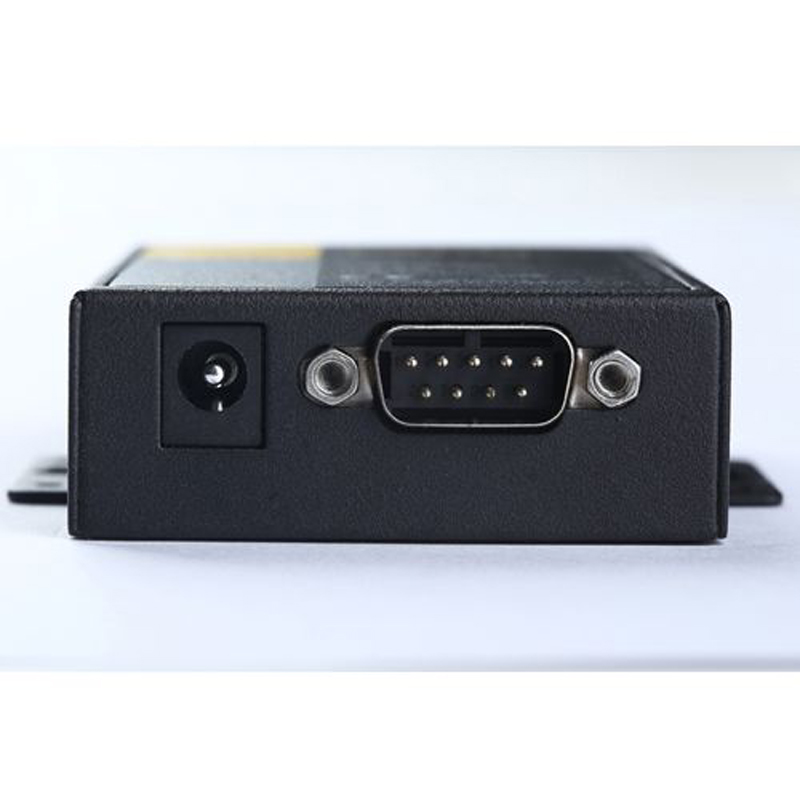

1 RS232 port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
Indicator “Power”, “ACT”, "Online”
Antenna Standard SMA female interface, 50 ohm, lighting protection(optional)

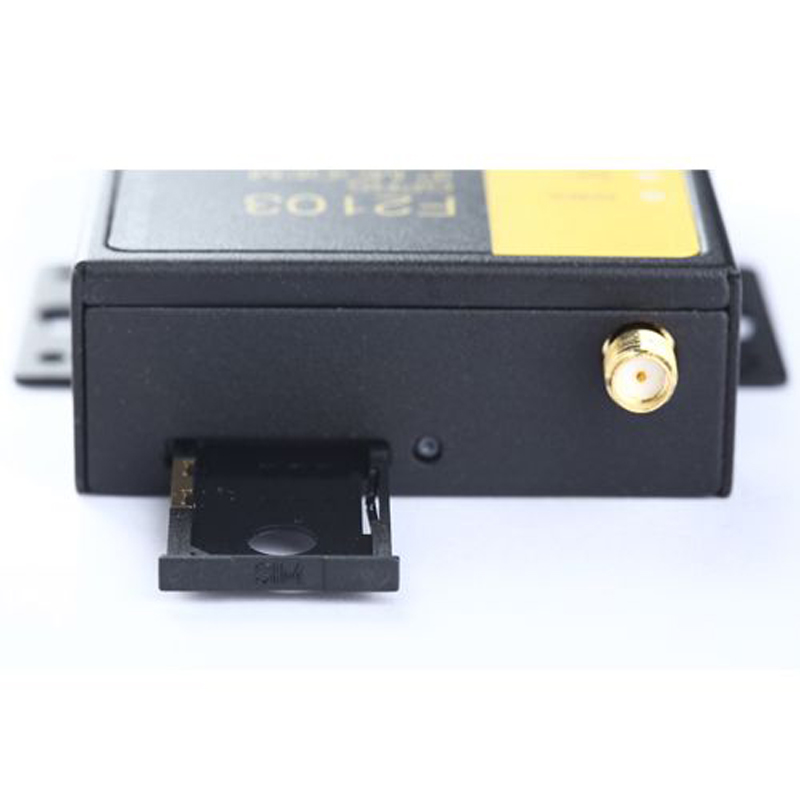

SIM/UIM Standard 3V/1.8V user card interface, 15KV ESD protection
Power Standard 3-PIN power jack, reverse-voltage and over voltage protection

Power Supply


Item Content
Standard
Power
DC 12V/0.5A
Power
Range
DC 5~35V
Consumption <200mA (12V)

Physical Characteristics


Item Content
Housing Iron, providing IP30 protection
Dimensions 91x58.5x22 mm
Weight 205g

Environmental Limits


Item Content
Operating
Temperature
-25~+65ºC (-13~+149℉)
Extended
Operating
Temperature
-30~+75ºC (-22~+167℉)
Storage
Temperature
-40~+85ºC (-40~+185℉)
Operating Humidity 95% ( unfreezing)
