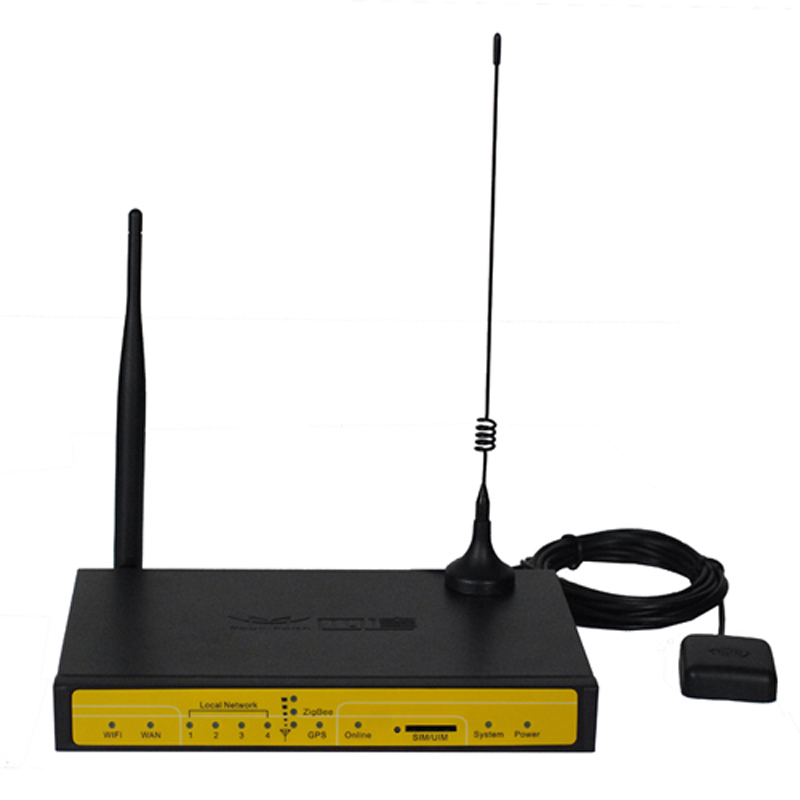

F7A34 GPS+LTE/EVDO WIFI Router

• GPRS
• Support 4 LAN ports
• Powerful WIFI
• Signal strength display in real time
• Support VPN link
• CPU processing speed increased by 3 times
• Controllable bandwidth resource allocation
• Low power consumption
• Supporting device management platform
• GPS

Features

Reliable networking and communications

Using high-performance industrial-grade wireless modules, industrial grade high stability high precision components, -35 ~ +75 º C extremely wide temperature design, easily adapt to the high-temperature cold working environment for unmanned systems to provide reliable group network with stable communication

Data processing and transmission speed upgrade

CPU processing speed increased by 3 times, WIFI transmission speed increased to 150 Mbps from 54 Mbps, built-in FLASH RAM capacity enhanced to 2 times, to meet the demand for wireless transmission of large amount of data, such as pictures, video, etc. Clearer and smoother.

Controllable bandwidth resource allocation

New flow control, traffic recording, real-time network speed display function, depending on the type of network protocol, bandwidth allocation mode in accordance with a pre-customized management

Supporting device management platform

Support for centralized management of a large number of devices, batch configuration and upgrade function, more efficient implementation and management of large projects.

Signal strength display in real time

Real-time display of the network signal strength, and enhance the efficiency of on-site management and maintenance

Provide more security deployment scenarios

Support VPN link, the increase on the basis of the common VPN PPTP server, the L2TP server, OpenVPN server, OpenVPN client support, network security applications deployment options richer, more flexible

A variety of savings flows and reduce power consumption mode

From time to time on the assembly line and the timer switch function, support a variety of upper and lower trigger modes, including text messages, phone ringing trigger on the offline mode, serial data, network data, effectively saving flow, reduce power consumption.。

Powerful WIFI

WIFI support 802.11b/g/n, support WIFI the AP, AP Client, repeater, repeater bridge and WDS, etc., and support for WEP, WPA and other encryption to meet more WIFI communication needs. WIFI integrated design with built effectively enhance

Reference

Cellular Specification


GPS Specification

WIFI Specification

Hardware System

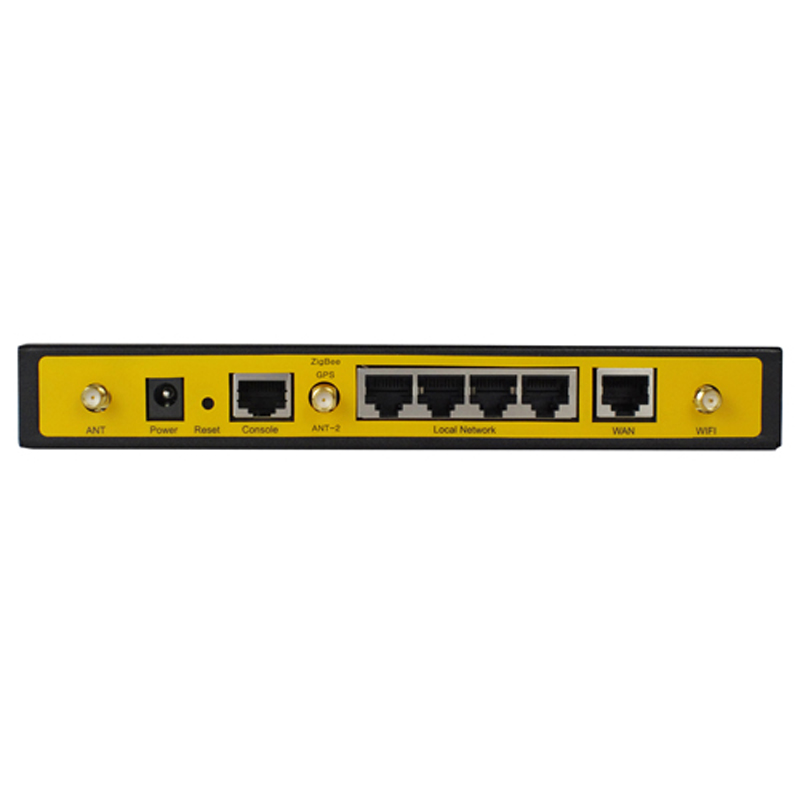

Interface Type

Item	Content
WAN	1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic  isolation protection
LAN	4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial	1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps

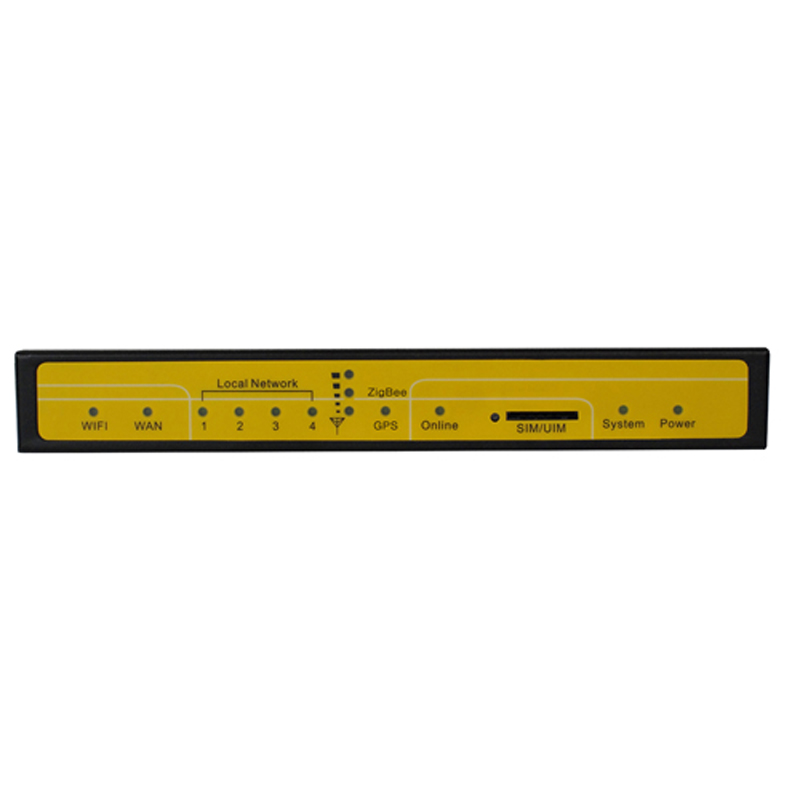

Indicator	"Power", "System", "Online", "GPS", " Local Network ", "WAN", "WIFI", “Signal Strength”
Antenna	Cellular: Standard SMA female interface, 50 ohm WIFI: Standard SMA male interface, 50 ohm GPS: standard SMA female interfaces, 50 ohm
SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
Power	Standard 3-PIN power jack, reverse-voltage and overvoltage protection
Reset	Restore the router to its original factory default settings

Power Supply

Physical Characteristics

Environmental Limits
