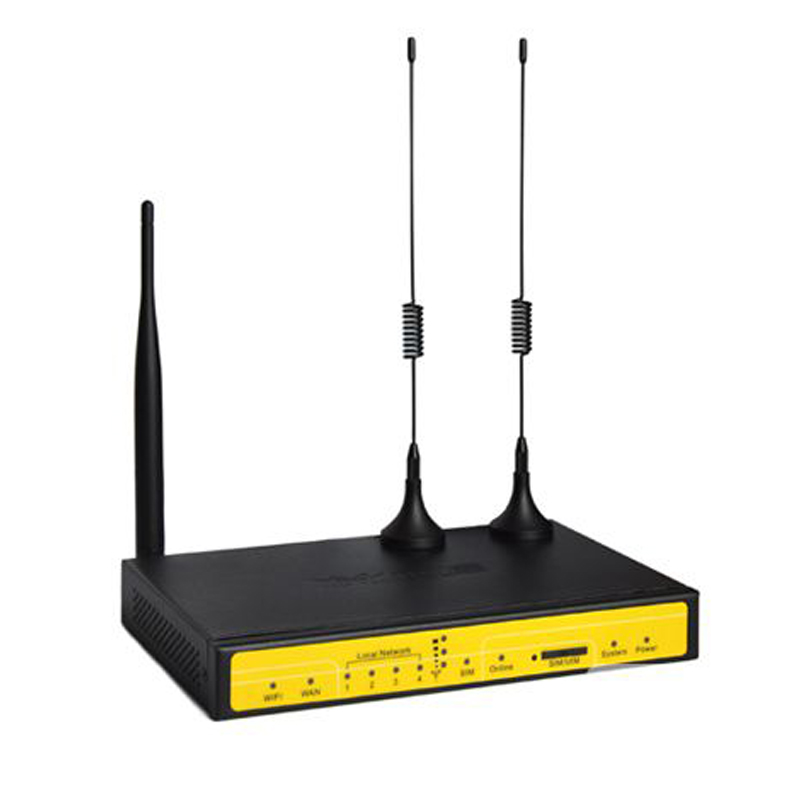

F3836

Part No.: MPFF-IoT-IR-F3836
4G high-speed cellular network addresses complex wireless communication requirements such as long-distance transmission + short-range networking.

產品介紹

Description

  • Certification: FCC, RoHS

  • Outer shell: metal, IP30 protection level

  • System: watchdog design, complete mechanisms, stable operation

  • Abundant ports: RS232, RS485, RS422, Ethernet LAN&WAN, Wi-Fi

  • CPU: industrial-grade 32-bit processor & wireless module

  • Applied scenarios: M2M fields of the IoT industry, smart factories, etc.

  1. It is F3836 is an IoT wireless communication router that plays the role of wireless data transmission through public networks in real IoT-applied solutions and other smart interactive scenarios.

  2. Equipped with an industrial-grade 32-bit processor and wireless modules, and with the watchdog system, the F3836 LTE router is able to keep its stable operation even in harsh industrial environments.

  3. The F3836 LTE router has been widely used in the M2M field of the IoT industry chain, such as smart grids, smart transportation, and environmental protection, etc.

Technical Specifications

The LTE Wireless Router is a cellular router working under 4G FDD-LTE networks, and back compatible to 3G/2G networks.project operation can choose more convenient and economical network and flow rates according to the operation’s requirement.

The LTE Wireless Router enable you to connect computers, laptops and other terminals by either wired or wireless connections to the internet, anywhere, anytime. Working in a very similar way to a conventional broadband except that the internet is accessed over the 4G network.


Cellular

Cellular Module  Content
Cellular Module Industrial cellular module
Standard and Band
Support: LTE FDD 2600/2100/1800/900/800MHz（Band 1/3/7/8/20）
700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25)(optional)
Support: DC-HSPA+/HSPA+/HSDPA/ HSUPA/WCDMA/UMTS
2100/1900/900/850/800MHz(Band 1/2/5/6/8)
Support:EDGE/GPRS/GSM  850/900/1800/1900MHz
Bandwidth
LTE FDD(Download speed:100Mbps，upload speed:50Mbps)
/HSUPA:5.76Mbps(upload speed)/ HSDPA:7.2Mbps(download speed:)
UMTS:384Kbps (download speed/upload speed)
HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed)
TX power <23dBm
RX sensitivity <-93.3dBm

WIFI

Item Content
Standard IEEE802.11b/g/n
Bandwidth
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max)
Security
WEP, WPA, WPA2, etc.
WPS (optional)
TX power 20dBm（11n），24dBm（11g），26dBm（11b）
RX sensitivity <-72dBm@54Mpbs

Hardware System

Item Content
CPU Industrial 32bits CPU
FLASH 16MB(Extendable to 64MB)
DDR2 128MB

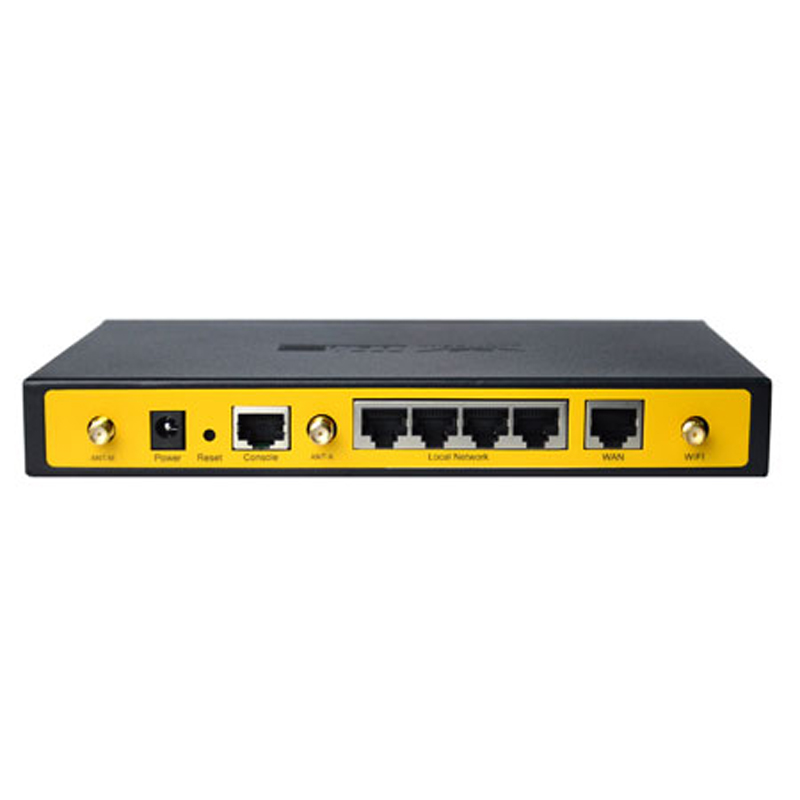

Interface Type

Item Content
WAN 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
LAN 4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps

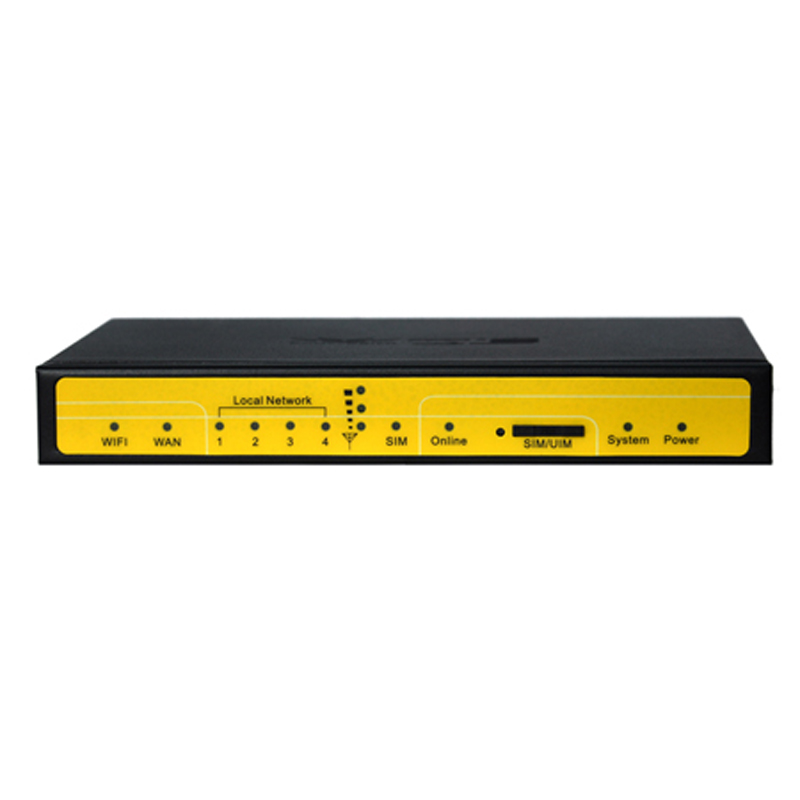

Indicator "Power", "System", "Online", "Alarm", " Local Network ", "WAN", "WIFI", "Signal Strength"
Antenna
Cellular: 2 Standard SMA female interface, 50 ohm, lighting protection(optional)
WIFI: 1 Standard SMA male interface, 50 ohm, lighting protection(optional)
SIM/UIM Standard 3V/1.8V user card interface, 15KV ESD protection
Power Standard 3-PIN power jack, reverse-voltage and overvoltage protection
Reset Restore the LTE wireless router to its original factory default settings

Power Supply

Item Content
Standard Power DC 12V/1.5A
Power range DC 5~36V
Consumption <500mA (12V)

Physical Characteristics

Item Content
Housing Iron, providing IP30 protection
Dimensions 206x135x28 mm
Weight 790g

Environmental Limits

Item Content
Operating Temperature -35~+75ºC（-31~+167℉）
Storage Temperature -40~+85ºC (-40~+185℉)
Operating Humidity 95% ( unfreezing)
