F3832
Part No.: MPFF-IoT-IR-F3832

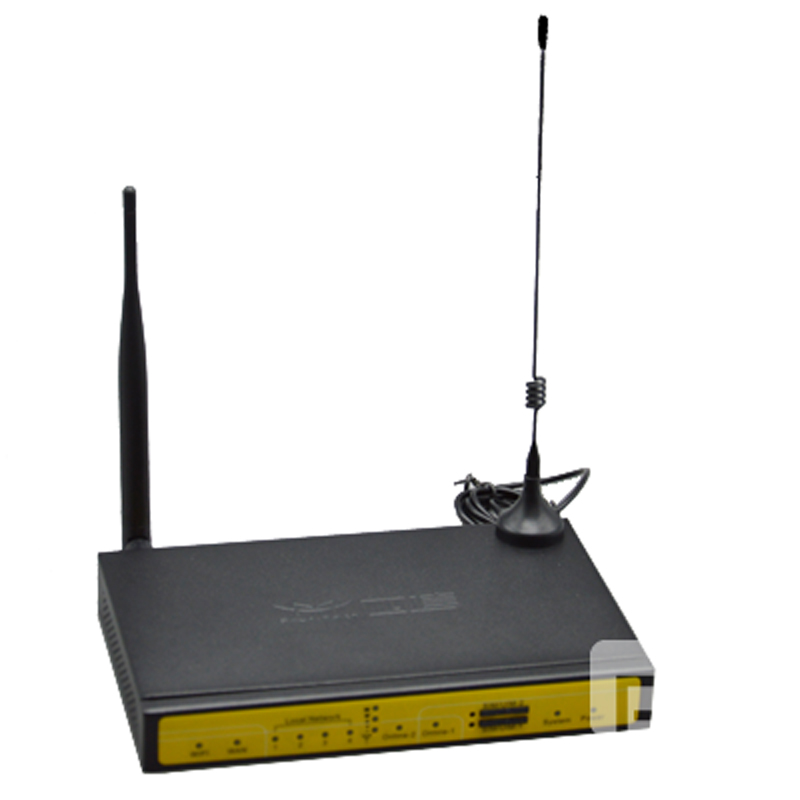

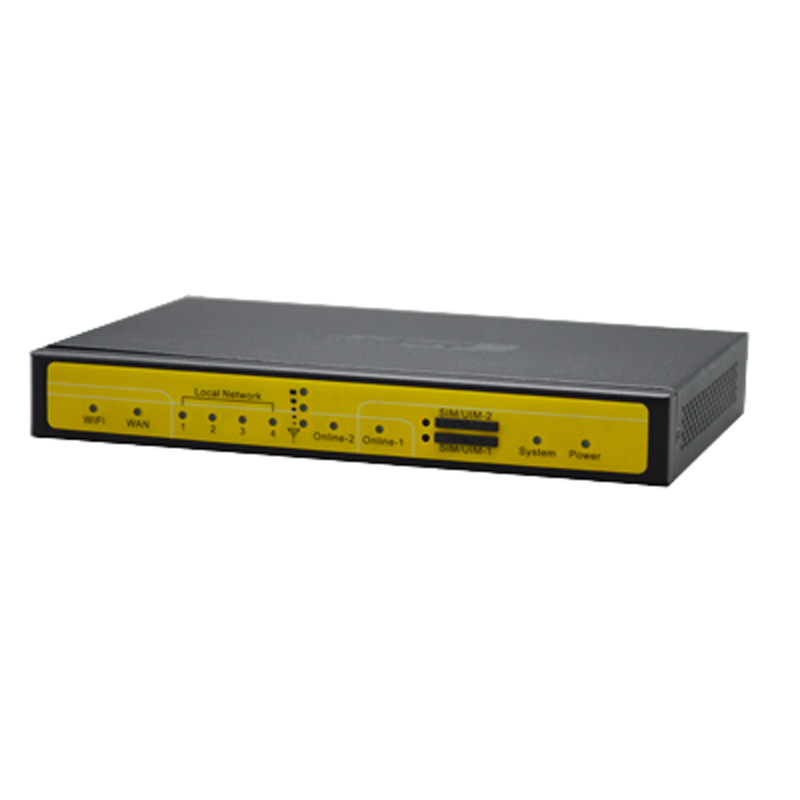

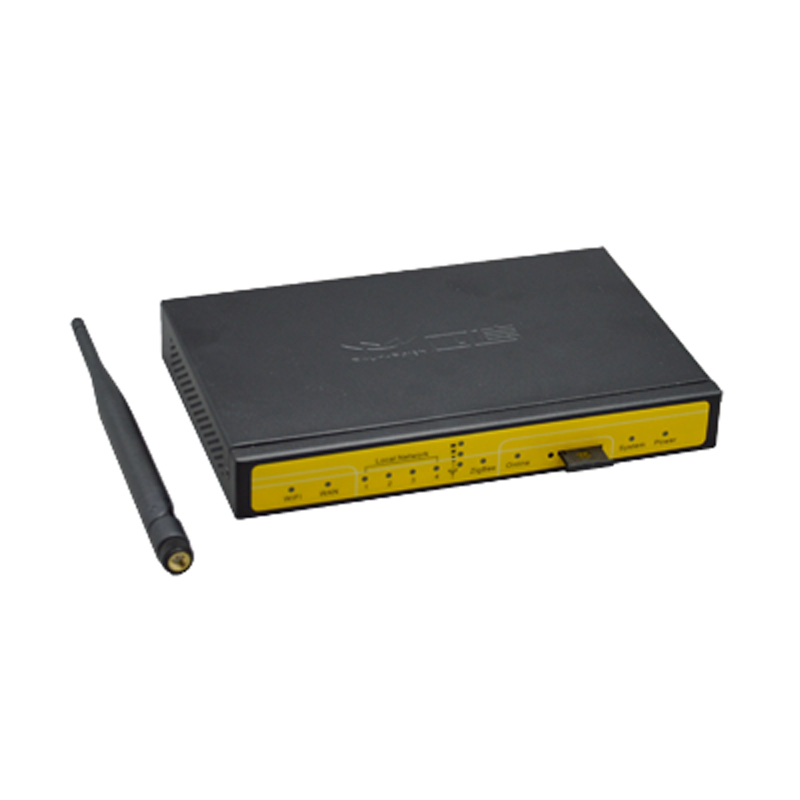

This is a F3X32 3G/ 4G dual sim card wifi router is a kind of cellular terminal device that provides large data transfer function by public network.
產品介紹
F3832 LTE&WCDMA Dual-SIM WIFI
- LTE/WCDMA
- Samart Link Switch Backup
- Powerful WIFI
- Provide More Security Deployment Scenarios
- Reliable Networking And Communication
- Support APN/VPDN
- Convenient configuration and maintenance interface
- Support Local and Remote Firmware Upgrade
Features
Smart Link Switch Backup
Provide multiple communication link backup functions: total 3 ways backup (2 ways wireless and 1 way wired), one primary and one backup primary and secondary backup, dual-link peer backup. When a link is blind, fluctuate, or even interrupt, switches to the other communication link quickly and automatically to ensure stable communication.
.png)
Provide More Security Deployment Scenarios
Support VPN link, the increase on the basis of the common VPN PPTP server, the L2TP server, OpenVPN server, OpenVPN client support, network security applications deployment options richer, more flexible
Reliable Networking And Communication
Using high-performance industrial-grade wireless module, industrial grade high stability and high precision components, -35 ~ +75 º C extremely wide temperature design, adapt to high-low temperature working environment and provide reliable networking and stable communication to unattended systems
Reference
Cellular Specification
| Item | Content |
|---|---|
|
Cellular
Module
|
Industrial cellular module |
|
Standard and Band |
Support LTE FDD 2600/2100/1800/900/800MHz,
700/1700/2100MHz(optional)
Support HSPA+/HSDPA/HSUPA/WCDMA /UMTS 900/2100MHz,
800/850/1900/2100MHz(optional)
Support EDGE/GPRS/GSM 900/1800/1900MHz
Support GPRS CLASS 10
Support EDGE CLASS 12
|
| Bandwidth |
LTE(DL: 100Mbps,UL:50Mbps)/HSUPA:5.76Mbps(Upload speed)/
HSDPA:7.2Mbps(Download speed)/UMTS:384Kbps (DL/UL)/ HSPA+:
21Mbps(Download speed) 5.76Mbps(Upload speed)
|
| TX Power | <32dBm |
|
RX
Sensitivity
|
<-93.3dBm |
WIFI Specification
| Item | Content |
|---|---|
| Standard | IEEE802.11b/g/n |
| Bandwidth |
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max)
|
| Security |
WEP, WPA, WPA2, etc.
WPS (optional)
|
| TX Power | 21.5dBm（11g），26dBm（11b） |
|
RX
Sensitivity
|
<-72dBm@54Mpbs |
Hardware System
| Item | Content |
|---|---|
| CPU | Industrial 32bits CPU |
| FLASH | 8MB(Extendable to 64MB) |
| SDRAM | 64MB |

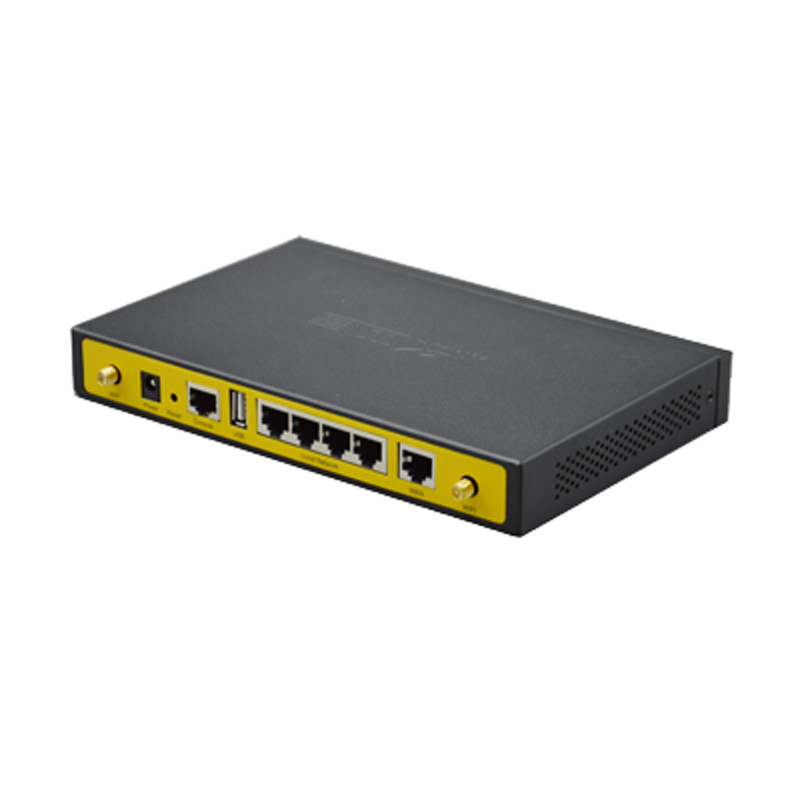

Interface Type
| Item | Content |
|---|---|
| WAN |
1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN |
4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps
|
| Indicator |
"Power", "System", "Online", "Alarm", " Local Network ", "WAN", "WIFI", "Signal Strength" |
| Antenna |
Cellular: Standard SMA female interface, 50 ohm, lighting
protection(optional)
WIFI: Standard SMA male interface, 50 ohm, lighting
protection(optional) |
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power | Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset | Restore the router to its original factory default settings |
| USB | Standard A type USB host interface (reserved) |
Power Supply
| Item | Content |
|---|---|
|
Standard Power |
DC 12V/1.5A |
|
Power Range |
DC 5~35V |
| Consumption | <450mA (12V) |
Physical Characteristics
| Item | Content |
|---|---|
| Housing | Iron, providing IP30 protection |
| Dimensions | 206x135x28 mm |
| Weight | 790g |
Environmental Limits
| Item | Content |
|---|---|
|
Operating Temperature |
-35~+75ºC（-31~+167℉） |
|
Storage Temperature |
-40~+85ºC (-40~+185℉) |
|
Operating Humidity |
95% ( unfreezing) |
