F3736
Part No.: MPFF-IoT-IR-F3736
This is a F3X36 Industrial Router with major network, project operation can choose more convenient and economical network.
產品介紹

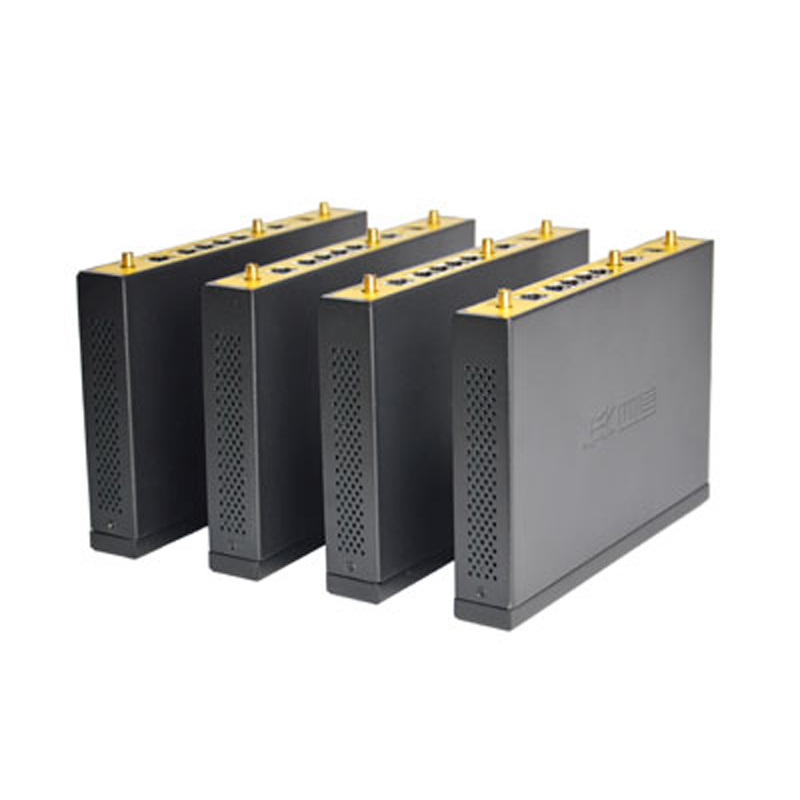

F3736 LTE Industrial Router APN/VPDN
- TD-LTE networks
- WIFI hotspot coverage, high data throughput
- High speed 4G module, strong wireless communication ability, real-time transmission for volume data
- Supports APN/VPDN, IPSEC, PPTP, L2TP, GRE, OPENVPN etc
- Stable work for 7 * 24 hours
- Support devices configuration, upgrade and maintenance remotely
- GPS（optional）
- ZigBee（optional）
- Allocation of bandwidth resources is under control（optional）
Features
Full band coverage, compatible with major operators’ network
One router compatible with major network, including TD-LTE, FDD-LTE, TD-SCDMA, WCDMA, EVDO, CDMA1X, GPRS/EDGE etc., project operation can choose more convenient and economical network and flow rates according to the operation's requirement.
Industrial grade high speed 4G module, strong wireless communication ability, real-time transmission for volume data
Adopt industrial grade high speed 4G wireless communication module and industrial 32 bits CPU, double increase in FLASH & RAM, and volume data transmission speed improved. The transmission of HD video, animation, picture, the front-end information gathering (such as pressure, temperature, flow, displacement, speed, electromagnetic, etc.) is smoother and quicker.
WIFI hotspot coverage, high data throughput, providing guarantee for various value-added services
This is a industrial grade router, with strong WIFI hotspot function, making every terminal device as a WIFI hotspot, providing WIFI network service for the around 100 meters range, can connect with more than 60 devices at the same time, providing high speed channel for the network services.
Providing more secure installation solutions, data transmission reaches financial standard
This is a industrial wireless router supports APN/VPDN, IPSEC, PPTP, L2TP, GRE, OPENVPN etc., and VPN server/client function. Adding a encryption transmission to make sure the security and accuracy of data transmission and management.
Easy installation
Be able to build a security, stable and reliable network of terminals from everywhere by using the router. Huge network, non-restricted installation distance, short construction period, small initial investment budget, providing technical guarantee of data wireless communication transmission.
Adapt to all kinds of unattended industrial application environment, stable work for 7 * 24 hours
This is a router with strong smart dropping-proof function, keeping always online. Adapting to high and low temperature, moisture-proof and lightening protection, able to work stably in harsh environment. High level of EMC anti-interference design, work in strong electromagnetic interference environment.
Support devices configuration, upgrade and maintenance remotely, greatly improve the efficiency of management
All the terminals can connect with remote management platform, centralized monitoring, configuration, upgrade, diagnosis, maintenance and control the regional equipment. Significantly reduce maintenance costs of operators, system integrators, equipment providers, improving the efficiency of management.
Allocation of bandwidth resources is under control
With the functions of flow controlling, recording, real-time network speed display, management base on the bandwidth distributed in advance, making the wireless transmission application more intelligent and efficient.
Reference
F3736 LTE/TD-SCDMA WIFI Industrial Router is a kind of Industrial cellular Router terminal device that provides large data transfer function by public LTE/TD-SCDMA network.
Industrial Application
- Remote Data Monitor and Control
- CCTV, security surveillance
- Water, gas and oil flow metering and schedule
- AMR (automatic meter reading)
- Power station monitoring and control
- Remote POS (point of sale) terminals, ATM,
- Traffic signals monitor and control, Traffic info guidance
- Oil field, weather forecast, environmental protection, street lamp monitoring and control
- Early Warning of Mountain Torrent
- Fleet management
- Power distribution network supervision
- Central heating system supervision
- Weather station data transmission
- Hydrologic data acquisition
- Vending machine
- Telemetry, SCADA
- Vehicle logistics and diagnostics controlling
- Parking meter and Taxi Monitor
- Telecom equipment supervision (Mobile base station, microwave or optical relay station)
- Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)
- Support hardware and software WDT
- Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
- Ethernet port: 1.5KV magnetic isolation
- RS232/RS485/RS422 port: 15KV ESD protection
- SIM/UIM port: 15KV ESD protection
- Power port: reverse-voltage and overvoltage protection
- Antenna port: lightning protection(optional)
- Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly
- Support standard WAN port and PPPOE protocol that can connect to ADSL directly
- Support intellectual mode, enter into communication state automatically when powered
- Provide management software for remote management
- Support multiple WAN access methods, including static ip, DHCP，PPPOE，3G/UMTS/4G/LTE，dhcp-4G.
- Support double link backup between LTE/EVDO and WAN(PPPOE, ADSL) (optional)
- Support VPN client(PPTP, L2TP, IPSEC)(only for VPN version)
- Support VPN server(PPTP, L2TP, IPSEC)(only for VPN version)
- Support local and remote firmware upgrade,import and export configure file.
- Support NTP, RTC embedded.
- Support mulitiple DDNS provider service.
- Support VLANs, MAC Address clone
- WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge mode.
- WIFI support WEP,WPA,WPA2 encryption,Support MAC address filter.
- Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
- Support APN/VPDN
- Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link speed statistics etc.
- Full protocol support , such as TCP/IP, UDP, ICMP, SMTP(optional), HTTP, POP3(optional), OICQ(optional), TELNET, FTP(optional), SNMP, SSHD, etc.
- Schedule Reboot, Schedule Online and Offline,etc.
Cellular Specification
|
Item
|
Content |
|---|---|
|
Cellular
Module
|
Industrial Cellular Module |
|
Standard and Band |
Support：LTE TDD 2600/1900/2300MHz（Band 38/39/40） (800/1400/1800MHz(Band27/61/62)
(optional)
Support：TD-SCDMA 2010/1900MHz（A/F frequency band，Band 34/39）
Support：GSM/GPRS/EDGE 900/1800/1900MHz
|
|
Bandwidth
|
LTE TDD(Download speed:68Mbps，upload speed:17Mbps)
TD-SCDMA :2.2Mbps(upload speed)/2.8Mbps(download speed)
|
| TX Power | <23dBm |
|
RX
Sensitivity
|
<-97dBm |
WIFI Specification
| Item | Content |
|---|---|
| Standard | IEEE802.11b/g/n |
|
Bandwidth
|
IEEE802.11b/g: 54Mbps (max)
IEEE802.11n: 150Mbps (max)
|
| Security |
WEP, WPA, WPA2, etc.
WPS (optional)
|
| TX Power |
20dBm（11n），
24dBm（11g）， 26dBm（11b） |
|
RX
Sensitivity
|
<-72dBm@54Mpbs
|
Hardware System
| Item | Content |
|---|---|
| CPU | Industrial 32bits CPU |
| FLASH | 16MB(Extendable to 64MB) |
| DDR2 | 128MB |
Interface Type
| Item | Content |
|---|---|
| WAN |
1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| LAN |
4 10/100 Mbps Ethernet ports(RJ45), auto
MDI/MDIX, 1.5KV magnetic isolation protection
|
| Serial |
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, space(optional), mark(optional)
Baud rate: 2400~115200 bps
|

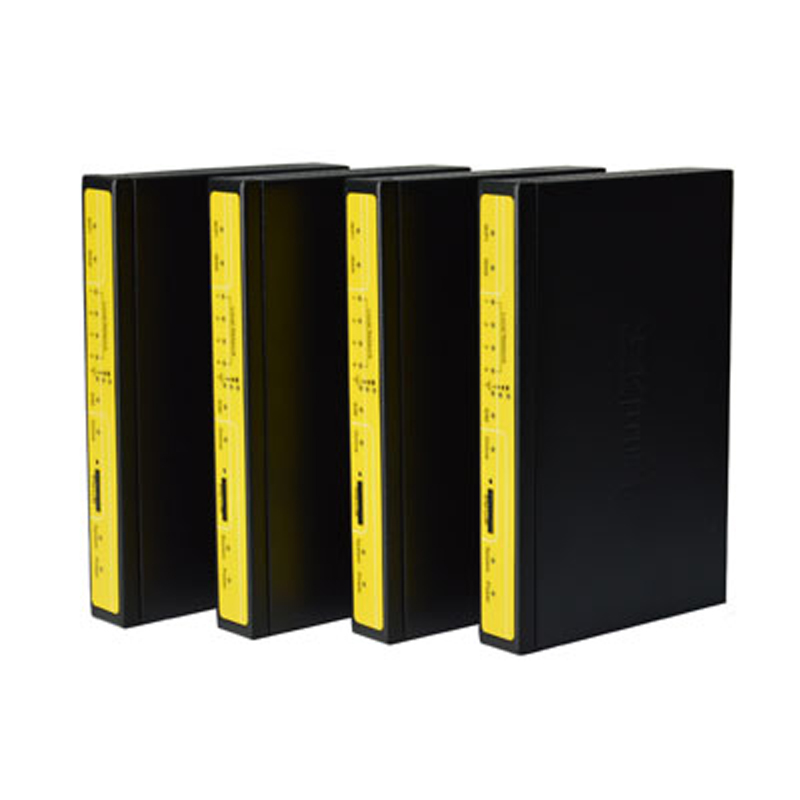

| Indicator |

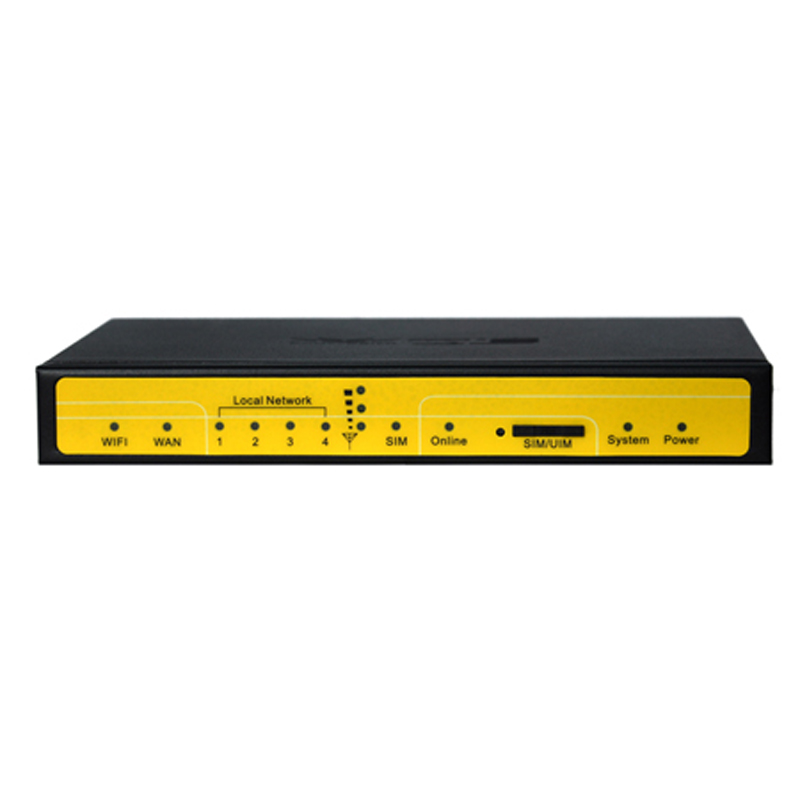

"Power", "System", "Online", "Alarm", " Local Network ", "WAN", "WIFI", "Signal Strength" |
| Antenna |

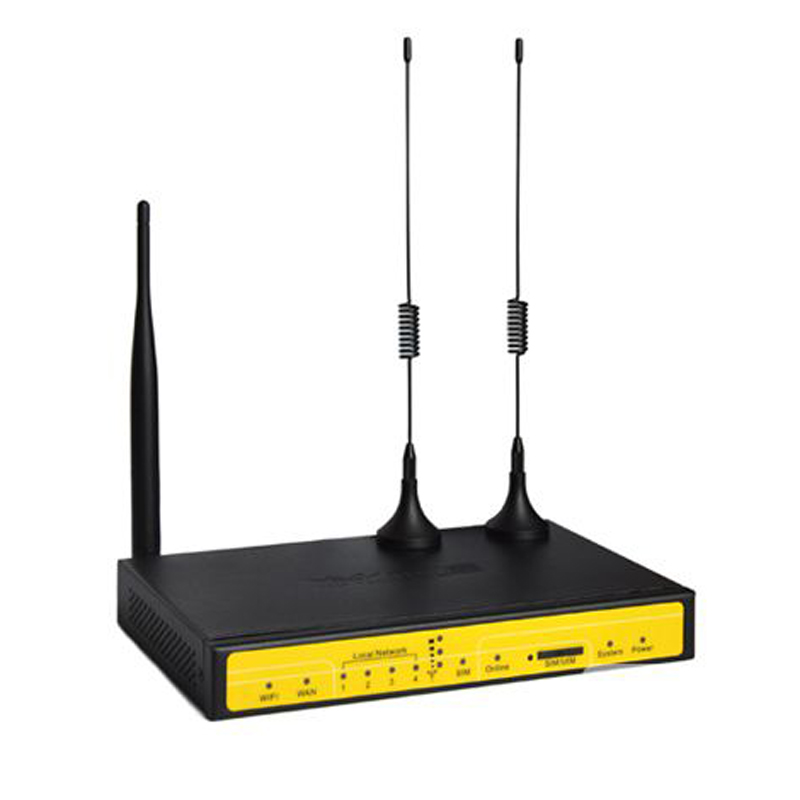

Cellular: 2 Standard SMA female interface, 50 ohm, lighting
protection(optional)
WIFI: 1 Standard SMA male interface, 50 ohm, lighting
protection(optional) |
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power | Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset | Restore the router to its original factory default settings |
Power Supply
| Item | Content |
|---|---|
|
Standard Power |
DC 12V/1.5A |
| Power Range | DC 5~36V |
| Consumption | <500mA (12V) |
Physical Characteristics
| Item | Content |
|---|---|
| Housing | Iron, providing IP30 protection |
| Dimensions | 206x135x28 mm |
| Weight | 790g |
Environmental Limits
| Item | Content |
|---|---|
|
Operating Temperature |
-35~+75ºC（-31~+167℉） |
|
Storage Temperature |
-40~+85ºC (-40~+185℉) |
|
Operating Humidity |
95% ( unfreezing) |
