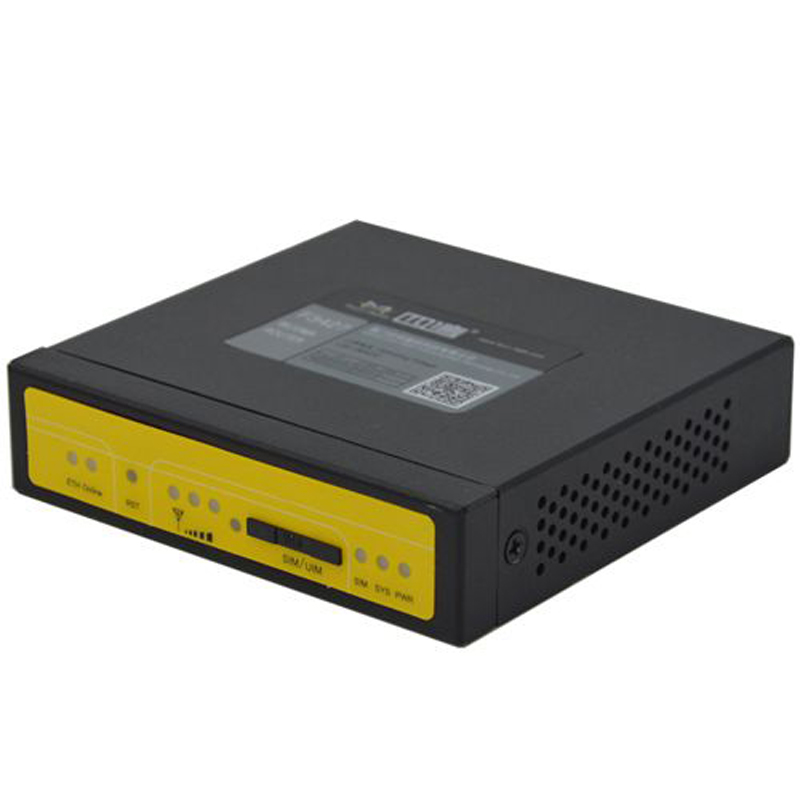

F3427 WCDMA Industrial Cellular Router

• Low-consumption mode
• OPENVPN, IPSEC
• Easily remote transmit data and Remote access solutions
• Easily Access your remote PLC
• Ideal for ATM, Kiosks, Vending machine, Surveillance, Digital Signage and More
• Support link disconnection when timeout
• Scheduled online/offline mode
• Provide management software for remote management

Features

• Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)
• Housing: iron, providing IP30 protection.
• Power range: DC 5~36V
• Support hardware and software WDT
• Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
• Ethernet port: 1.5KV magnetic isolation protection
• RS232/RS485/RS422 port: 15KV ESD protection
• SIM/UIM port: 15KV ESD protection
• Power port: reverse-voltage and overvoltage protection
• Antenna port: lightning protection(optional)
• Support standard RS232(or RS485/RS422), Ethernet port that can connect to serial, Ethernet devices directly
• Support intellectual mode, enter into communication state automatically when powered
• Provide management software for remote management
• Support several work modes
• Convenient configuration and maintenance interface（WEB or CLI）
• Support 2G/3G/HSPA/4G WAN access methods.
• Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
• Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
• Support local and remote firmware upgrade,import and export configure file.
• Support NTP, RTC embedded.
• upport mulitiple DDNS provider service.
• Support MAC Address clone, PPPoE Server
• Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
• Support APN/VPDN
• Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link speed statistics etc.
• Full protocol support , such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc.
• Schedule Reboot, Schedule Online and Offline,etc.

Reference

Cellular Specification

Hardware System

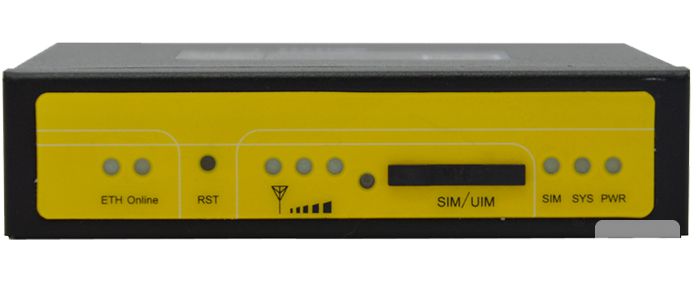

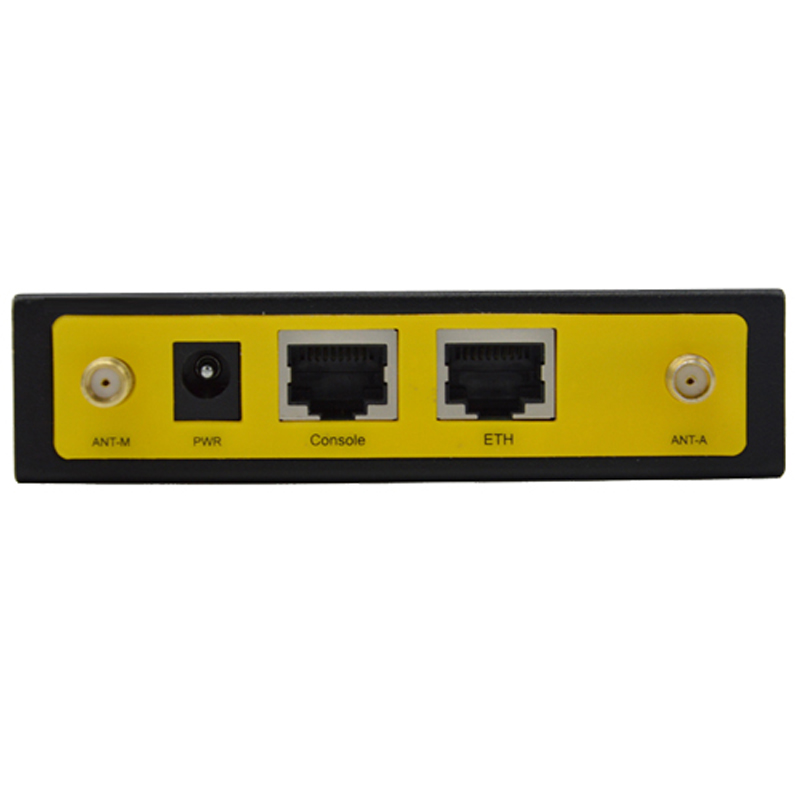

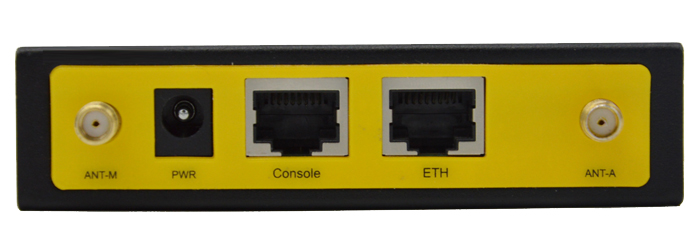

Interface Type

Item	Content
Ethernet	1 10/100 Mbps Ethernet port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
Serial	1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, (space, mark) (optional) Baud rate: 1200~115200 bps

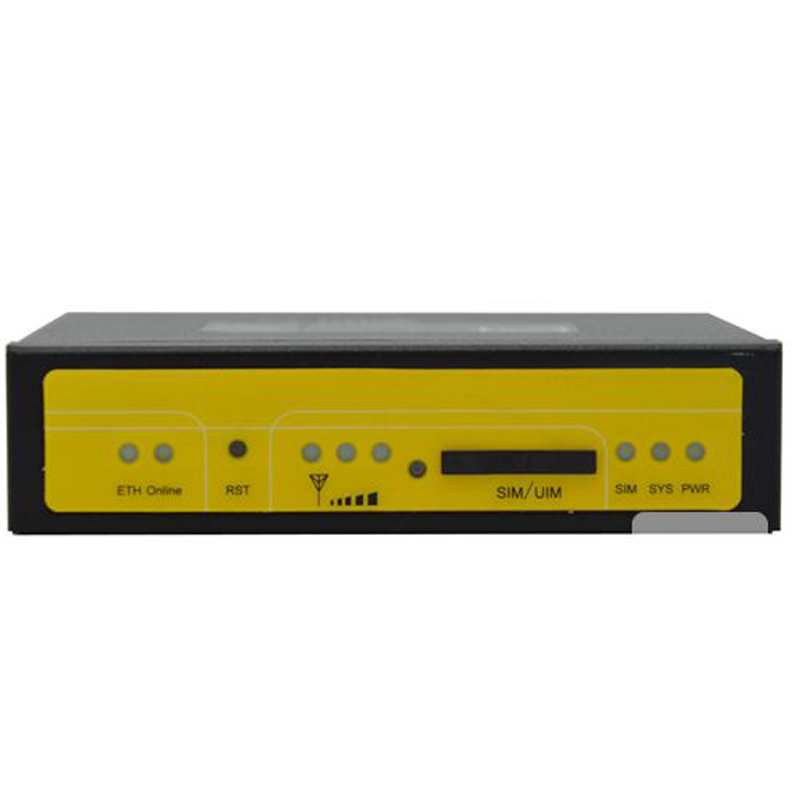

Indicator	"PWR", "SYS", "SIM", "Online", "ETH", “Signal Strength”
Antenna	Standard SMA female interface, 50 ohm, lighting protection(optional)
SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
Power	Standard 3-PIN power jack, reverse-voltage and overvoltage protection
Reset	Restore the router to its original factory default settings

Power Supply

Power Consumption

Physical Characteristics

Environmental Limits
