F3325
Part No.: MPFF-IoT-IR-F3325
This is a F3X25 2.5G/3G industrial router use high-performance industrial-grade wireless modules, industrial grade high stability high precision components.
產品介紹

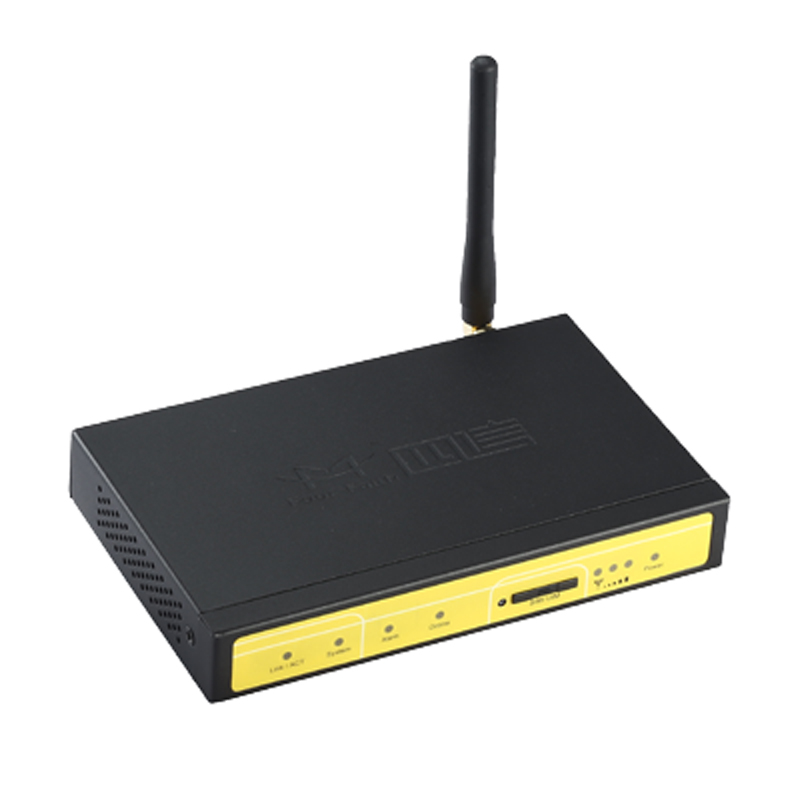

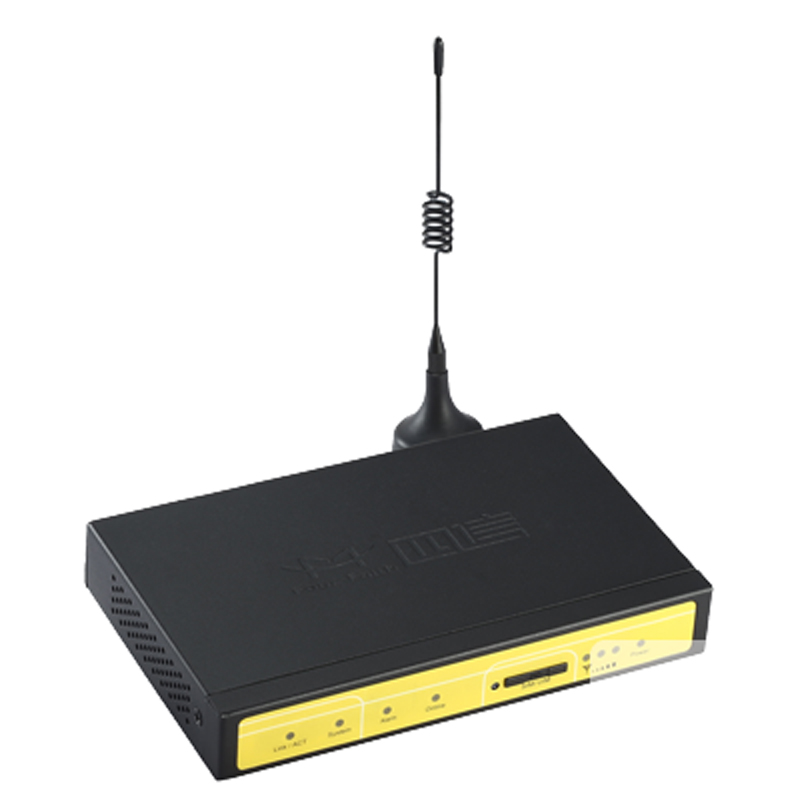

F3325 Industrial EDGE Router
- EDGE
- Support RS232 or RS485 or RS422
- Signal strength display in real time
- Support OpenVPN,IPSEC
- Controllable bandwidth resource allocation
- Provide management software
- GPS（optional）
- ZigBee（optional）
- No WIFI
Features
Reliable networking and communications
Using high-performance industrial-grade wireless modules, industrial grade high stability high precision components, -35 ~ +75 º C extremely wide temperature design, easily adapt to the high-temperature cold working environment for unmanned systems to provide reliable group network with stable communication
Data processing and transmission speed upgrade
CPU processing speed increased by 3 times, WIFI transmission speed increased to 150 Mbps from 54 Mbps, built-in FLASH RAM capacity enhanced to 2 times, to meet the demand for wireless transmission of large amount of data, such as pictures, video, etc. Clearer and smoother.
Controllable bandwidth resource allocation
New flow control, traffic recording, real-time network speed display function, depending on the type of network protocol, bandwidth allocation mode in accordance with a pre-customized management
Supporting device management platform
Support for centralized management of a large number of devices, batch configuration and upgrade function, more efficient implementation and management of large projects.
Signal strength display in real time
Real-time display of the network signal strength, and enhance the efficiency of on-site management and maintenance
Provide more security deployment scenarios
Support VPN link, the increase on the basis of the common VPN PPTP server, the L2TP server, OpenVPN server, OpenVPN client support, network security applications deployment options richer, more flexible
A variety of savings flows and reduce power consumption mode
From time to time on the assembly line and the timer switch function, support a variety of upper and lower trigger modes, including text messages, phone ringing trigger on the offline mode, serial data, network data, effectively saving flow, reduce power consumption.。
Powerful WIFI
WIFI support 802.11b/g/n, support WIFI the AP, AP Client, repeater, repeater bridge and WDS, etc., and support for WEP, WPA and other encryption to meet more WIFI communication needs. WIFI integrated design with built effectively enhance the stability of the product.
Reference
Cellular Specification
| Item | Content |
|---|---|
|
Cellular Module |
Industrial cellular module |
|
Standard and Band |
GSM850/900/1800/1900MHz
GPRS /EDGE class 12
|
| Bandwidth |
236.8Kbps
|
| TX Power |
GSM850/900：<33dBm
GSM1800/1900：<30dBm
|
|
RX Sensitivity |
<-106dBm |
Hardware System
| Item | Content |
|---|---|
| CPU | Industrial 32bits CPU |
| FLASH | 8MB(Extendable to 64MB) |
| RAM | 64MB |
Interface Type
| Item | Content |
|---|---|
| Ethernet |
1 10/100 Mbps Ethernet port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Baud rate: 110~230400 bps
|
| Indicator | "Power", "System", "Online", "Link/ACT", "WIFI", “Signal Strength” |
| Antenna | Standard SMA female interface, 50 ohm, lighting protection(optional) |
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power | Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset | Restore the router to its original factory default settings |
Power Supply
| Item | Consumption |
|---|---|
|
Standard Power |
DC 12V/1.5A |
|
Power Range |
DC 5~35V |
| Consumption | <450mA (12V) |
Physical Characteristics
| Item | Content |
|---|---|
| Housing | Iron, providing IP30 protection |
| Dimensions | 157x97x25 mm |
| Weight | 440g |
Environmental Limits
| Item | Content |
|---|---|
|
Operating Temperature |
-35~+75ºC（-31~+167℉） |
|
Storage Temperature |
-40~+85ºC (-40~+185℉) |
|
Operating Humidity |
95% ( unfreezing) |
