F3127
Part No.: MPFF-IoT-IR-F3127
This is a F3X27 Industrial Cellular IPSEC VPN Router with sim slot use of operators networks for data transfer
產品介紹
F3127 Industrial GPRS Cellular Router with sim slot
- Low-consumption mode
- OPENVPN, IPSEC
- Support multi online trigger ways, including SMS, ring and data.
- Support link disconnection when timeout
- Scheduled online/offline mode
- Provide management software for remote management
Note：No WIFI
Features
- Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)
- Housing: iron, providing IP30 protection.
- Power range: DC 5~36V
- Support hardware and software WDT
- Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
- Ethernet port: 1.5KV magnetic isolation protection
- RS232/RS485/RS422 port: 15KV ESD protection
- SIM/UIM port: 15KV ESD protection
- Power port: reverse-voltage and overvoltage protection
- Antenna port: lightning protection(optional)
- Support standard RS232(or RS485/RS422), Ethernet port that can connect to serial, Ethernet devices directly
- Support intellectual mode, enter into communication state automatically when powered
- Provide management software for remote management
- Support several work modes
- Convenient configuration and maintenance interface（WEB or CLI）
- Support 2G/3G/HSPA/4G WAN access methods.
- Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
- Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
- Support local and remote firmware upgrade,import and export configure file.
- Support NTP, RTC embedded.
- upport mulitiple DDNS provider service.
- Support MAC Address clone, PPPoE Server
- Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
- Support APN/VPDN
- Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link speed statistics etc.
- Full protocol support , such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc.
- Schedule Reboot, Schedule Online and Offline, etc.
Reference
Cellular Specification
| Item | Content |
|---|---|
|
Cellular Module |
Industrial cellular module |
|
Standard and Band |
EGSM900/GSM1800MHz, GSM850/900/1800/1900MHz(optional)
Compliant to GSM phase 2/2+
GPRS class 10, class 12(optional)
|
| Bandwidth | 85.6Kbps |
| TX Power |
GSM850/900：<33dBm
GSM1800/1900：<30dBm
|
|
RX Sensitivity |
<-107dBm |
Hardware System
| Item | Content |
|---|---|
| CPU | Industrial 32bits CPU |
| FLASH | 16MB (Extendable to 64MB) |
| DDR2 | 128MB (Extendable to 256MB) |

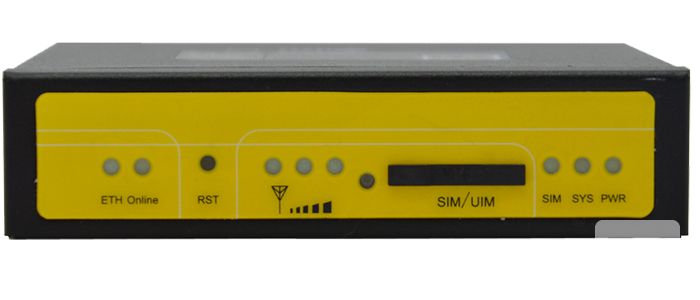

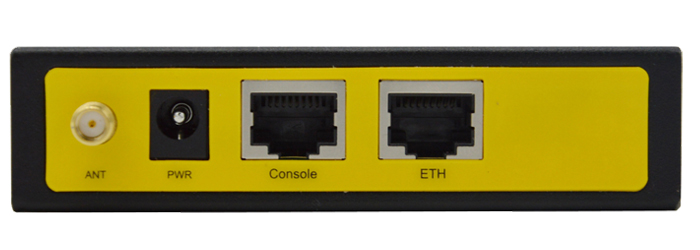

Interface Type
| Item | Content |
|---|---|
| Ethernet |
1 10/100 Mbps Ethernet port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
| Serial |
1 RS232(or RS485/RS422) port, 15KV ESD protection
Data bits: 5, 6 ,7, 8
Stop bits: 1, 1.5(optional), 2
Parity: none, even, odd, (space, mark) (optional)
Baud rate: 2400~115200 bps
|

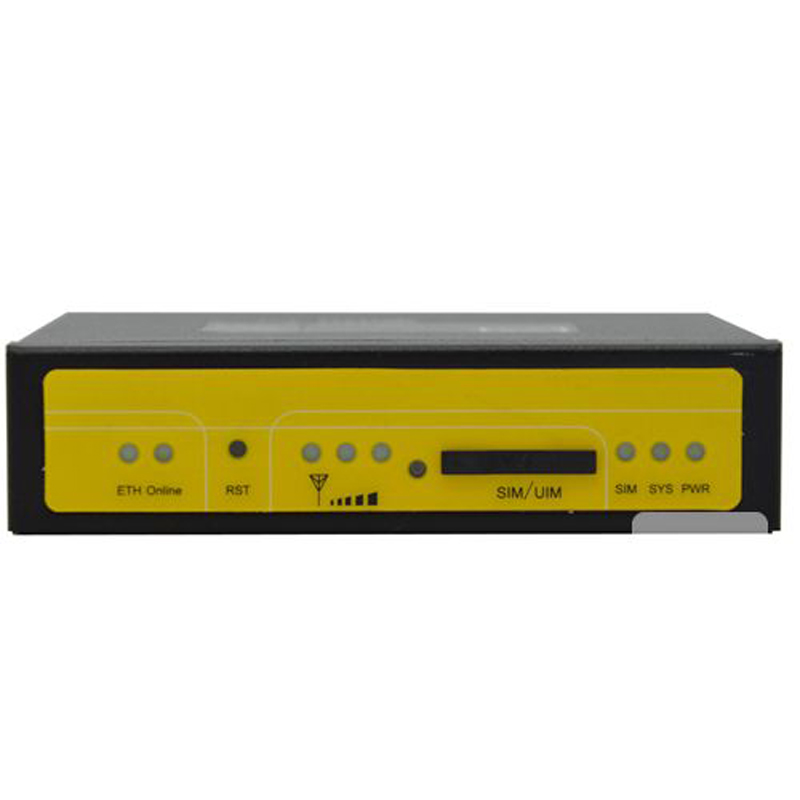

| Indicator | "PWR", "SYS", "SIM", "Online", "ETH", “Signal Strength” |

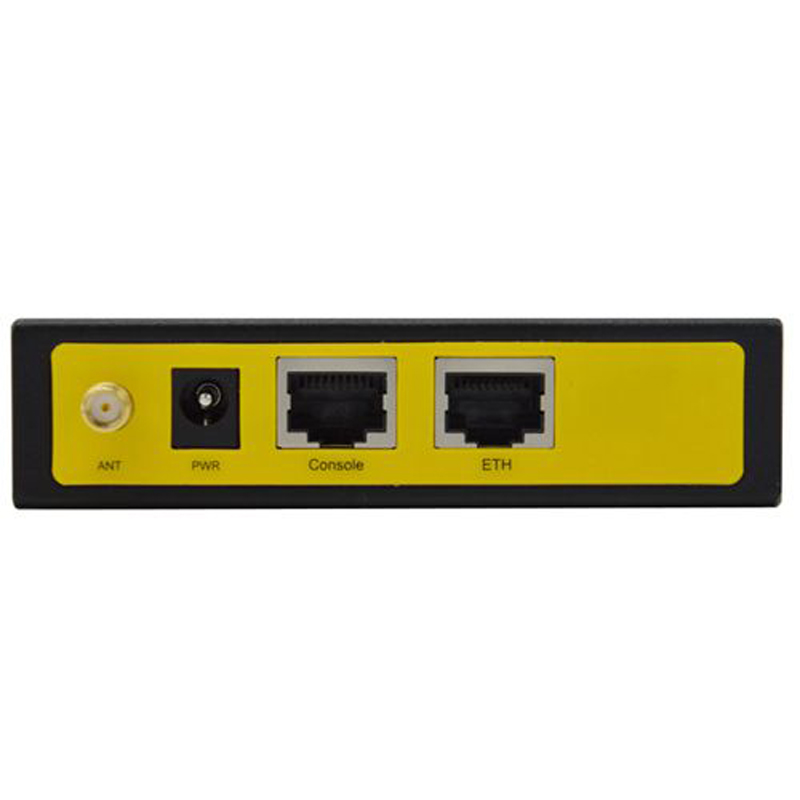

| Antenna | Standard SMA female interface, 50 ohm, lighting protection(optional) |
| SIM/UIM | Standard 3V/1.8V user card interface, 15KV ESD protection |
| Power | Standard 3-PIN power jack, reverse-voltage and overvoltage protection |
| Reset | Restore the router to its original factory default settings |
  |
|
Power Supply
| Item | Content |
|---|---|
|
Standard Power |
DC 12V/ 1.5A |
|
Power Range |
DC 5 ~ 36V |
Power Consumption
|
Working State |
Power Consumption |
|---|---|
| Standby | 83 ~ 90 mA @ 12VDC |
| Working | 113 ~ 135 mA @ 12VDC |
|
Timing Shutdown |
3.15 ~ 3.70 mA @ 12DVC |

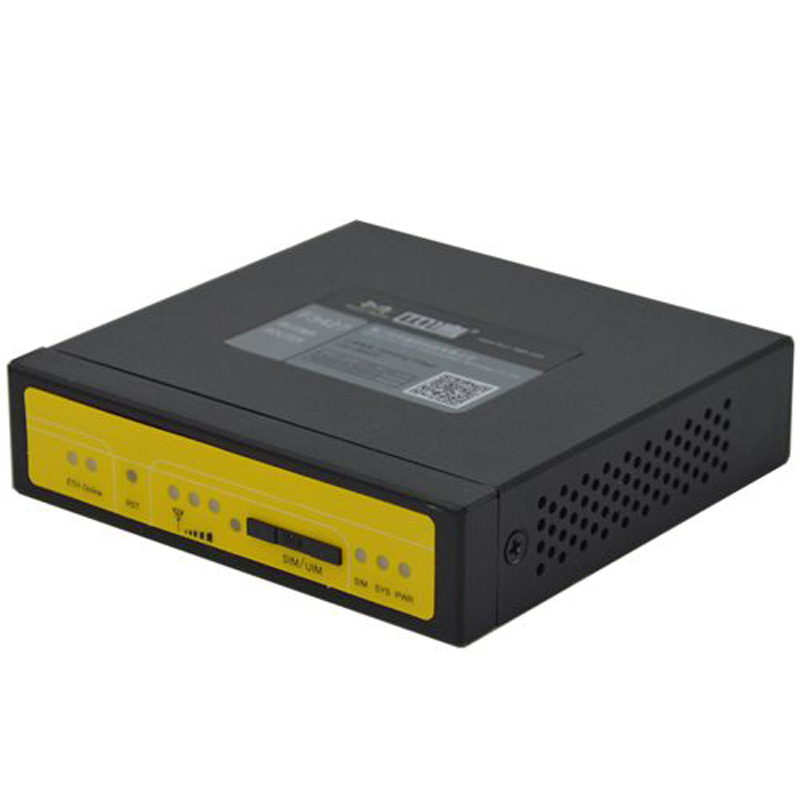

Physical Characteristics
| Item | Content |
|---|---|
| Housing | Iron, providing IP30 Protection |
| Dimensions | 100x97x25 mm |
| Weight | 320g |
Environmental Limits
| Item | Content |
|---|---|
|
Oterating Temperature |
- 35 ~ + 75ºC (-31 ~ + 167℉) |
|
Storage Temperature |
- 40 ~ + 85ºC (-40 ~ + 185℉) |
|
Operating Humidity |
95% (unfreezing) |
