F-R100
Part No.: MPFF-IoT-IR-F-R100-W
MPFF-IoT-IR-F-R100-FL
MPFF-IoT-IR-F-R100-L
MPFF-IoT-IR-F-R100-W/W
MPFF-IoT-IR-F-R100-FL/FL
MPFF-IoT-IR-F-R100-L/L
This is a 3G 4G Cellular Router WIFI VPN with IO that Provide long-distance transmission and wireless networking.
產品介紹

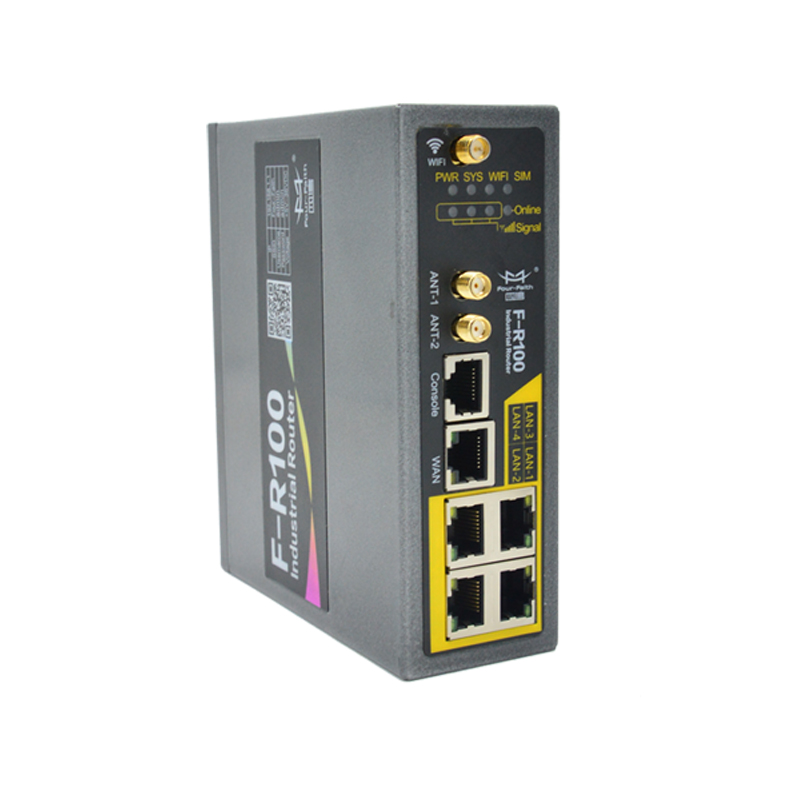

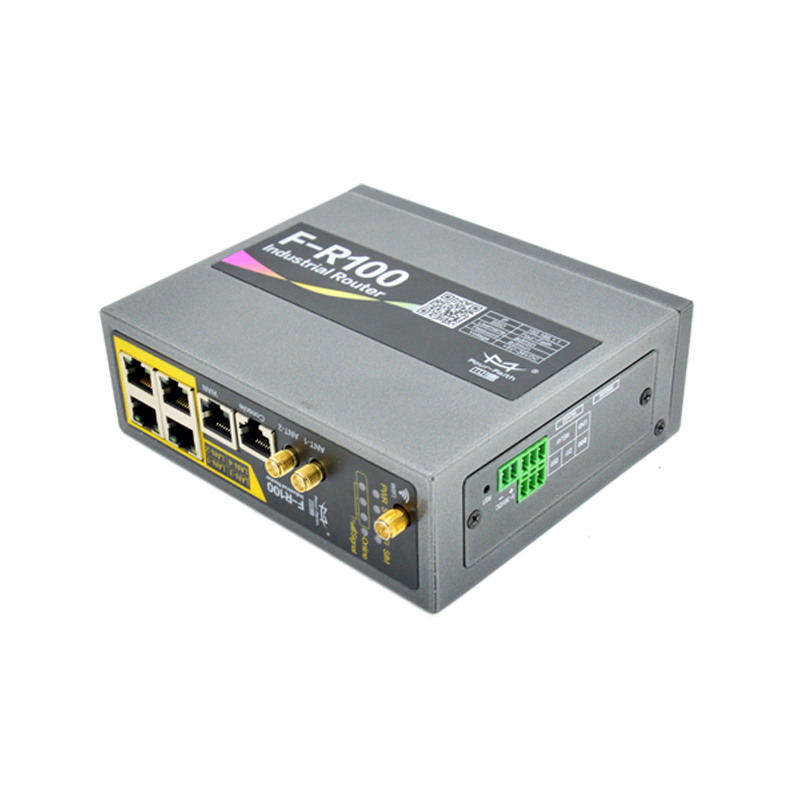

F-R100 3G/4G Cellular Router
- Ethernet, serial and I/O for connecting diverse field assets
- Maximizes uptime by seamlessly switching between the multiple Internet interfaces
- Secure your data using a variety of VPN tunneling schemes
- Din-Rail or wall mounting or desktop
Features
Advanced Failover
Maximise uptime by seamlessly switching between the multiple Internet interfaces (cellular, WAN, Wi-Fi, dual-SIM)
Multiple Tunnelling Schemes
Industrial cellular router Secure your data using a variety of VPN tunnelling schemes, including IPSec, L2TP, PPTP, Open VPN and GRE
Flexible Wi-Fi
802.11 b/g/n, configurable Wi-Fi as WAN or access point, Wi-Fi Security (WEP / WPA / WPA2 Mixed Mode) and multiple SSID
Serial Port
Industrial cellular router Ethernet, serial and I/O for connecting diverse field assets
Support devices configuration, upgrade and maintenance remotely, greatly improve the efficiency of management
This is a Remote Manager provides mass configuration, device management, OTA update, and troubleshooting tools and cellular router communication 3g 4g network.
Specification
Industrial Four-Faith F-R100 3G 4G Cellular Router
Din Rail bonding is an intelligent industrial cellular router designed for industrial applications requiring faultless connectivity. It provides a secure, reliable, real-time, remote connectivity for SCADA, distribution management systems, metering etc. Software-defined, multi-carrier networking, dual SIM models, 802.11n and global 2.5G/3G/HSPA+/LTE options make it easy to get connected. With DIN-rail mounting, wide operating temperature range, and IP30 metal housing, the F-R100 is a convenient yet reliable solution for any industrial wireless application.
| Cellular WAN |
Supported Frequency Bands
LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28
WCDMA: 2100(B1), 1900(B2), 850(B5)
EV-DO/CDMA: 800(BC0)
GSM/GPRS/EDGE: 850/900/1800/1900
Automatic SIM based network operator switching
|
|
|---|---|---|
| Host Interfaces |
Supported Frequency Bands
LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28
WCDMA: 2100(B1), 1900(B2), 850(B5)
EV-DO/CDMA: 800(BC0)
GSM/GPRS/EDGE: 850/900/1800/1900
Automatic SIM based network operator switching
|
|
| Input/Output |

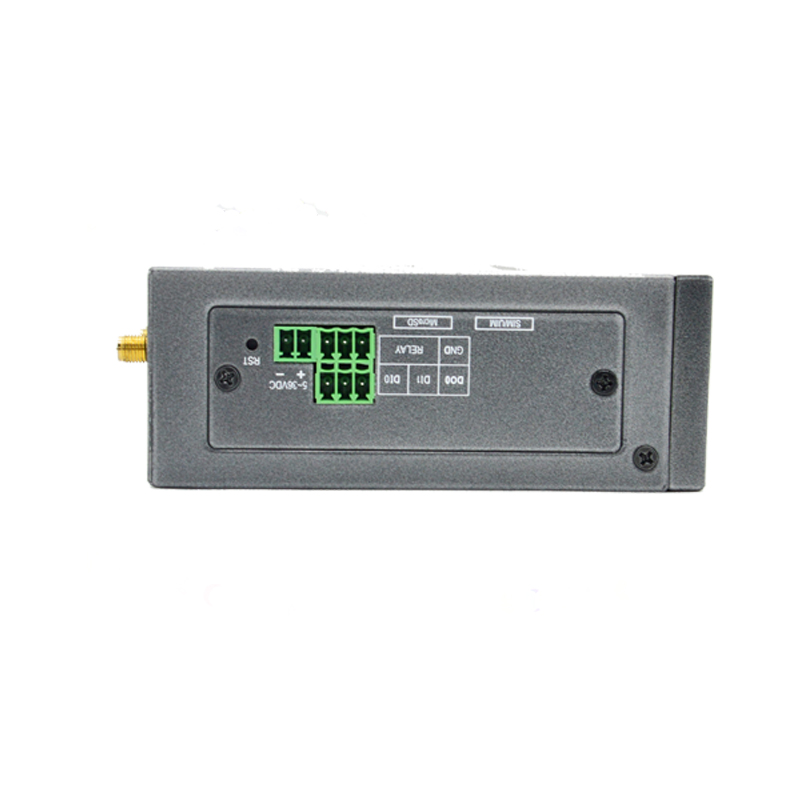

(6) pin 3.5mm terminal block
(2) DI, (1) DO, (1) Relay.
Input ON Voltage: 5 to 30 VDC
Input OF Voltage: 0 to 3 VDC
Output < 50mA @ 30VDC
|
|
| LAN |
DNS, DNS Proxy
DHCP Server
IP Passthrough (option)
VLAN
Host Interface Watchdog
PPPoE
|
|
| Serial |
TCP/U DP PAD Mode
Modbus (ASCII, DTU, Variable)
PPP
Reverse Telnet
|
|
| WI-FI |
IEEE802.11 b/g/n, AP and client mode.
Adjustable output power (Max: 26dBm)
Access point for up to 30 clients
Simultaneous access point/client mode
WEP, WPA-PSK, WPA2-PSK etc. Security
|
|
| Network and Routing ROUTING |
Network Address Translation (NAT)
Port Forwarding
Host Port Routing
VRRP
Reliable Static Route
Dynamic DNS
|
|
| VPN |
IPsec, GRE, and OPENVPN Client
Up to 10 concurrent tunnels
Split Tunnel
Dead Peer Detection (DPD)
Multiple Subnets
VPN Failover
|
|
| Security |
Remote Authentication
DMZ
Inbound and Outbound Port filtering
Inbound and Outbound Trusted IP
MAC Address Filtering
PCI DSS V3.0 compatible
|
|
| GPS (Option) |
Antenna Interface: SMA Female, 50 ohms impedance
Tracking Sensitivity: better than -144 dBm
Horizontal position accuracy: 2.5 m
Time-To-First-Fix: 29 s
Protocol: NMEA-0183 V2.3
|
|
| Events Engine (Option) |
Custom event triggers and reports
Configurable interface, no programming
Event Types: Digital Input, Network Parameters, Data Usage, Timer, Power, Device Temperature
Report Types: RAP, SMS, Email, SNMP Trap, TCP (Binary, XML, CSV)
Event Actions: Drive Relay Output
|
|
| Management Service |
Secure cloud-based device management application
Remote provisioning
Gateway configuration and template management
Configurable monitoring and alerting
Software and radio module firmware updates
Auto configuration
|
|
| Management Interfaces |
Web-Based User Interface
Device Configuration Templates
Software and radio module firmware updates
AT Command Line Interface (Telnet/SSH/Serial)
SMS Commands (Option)
SNMP
Operating Environment Operating Temperature: -35°C to +75°C / -31°F to +167°F
Storage Temperature: -40°C to 85°C / -40°F to 185°F
Humidity: 90% RH @ 60°C
|
|
| Dimensions |
Housing & Weight: Metal, **g
Dimension: (L x W x H): 133 x 115.7 x 45 mm
Installation: 34.6 mm Din-Rail or wall mounting or desktop
|
|
Selection and Ordering Data
| Model No. | Description |
|---|---|
| F-R100-W |
Cellular (WCDMA/ HSDPA/ HSUPA/ HSPA+), WIFI, SIM*1 (Expandable to 2), I/O (2*DI, 1*DO, 1*Relay.) , GPS (Option) |
| F-R100-FL |
Cellular (LTE/WCDMA), WIFI, SIM*1(Expandable to 2), I/O(2*DI, 1*DO, 1*Relay.) , GPS(Option) |
| F-R100-L |
Cellular (LTE), WIFI, SIM*1(Expandable to 2), I/O(2*DI, 1*DO, 1*Relay.) , GPS(Option) |
| F-R100-W/W |
Cellular (WCDMA/HSDPA/HSUPA/HSPA+, Dual-Module),
WIFI, SIM*2, I/O(2*DI, 1*DO, 1*Relay.) ,
GPS(Option)
|
| F-R100-FL/FL |
Cellular (LTE/WCDMA, Dual-Module), WIFI, SIM*2, I/O(2*DI, 1*DO, 1*Relay.) , GPS(Option) |
| F-R100-L/L |
Cellular (LTE, Dual-Module), WIFI, SIM*2, I/O(2*DI, 1*DO, 1*Relay.) , GPS(Option) |
