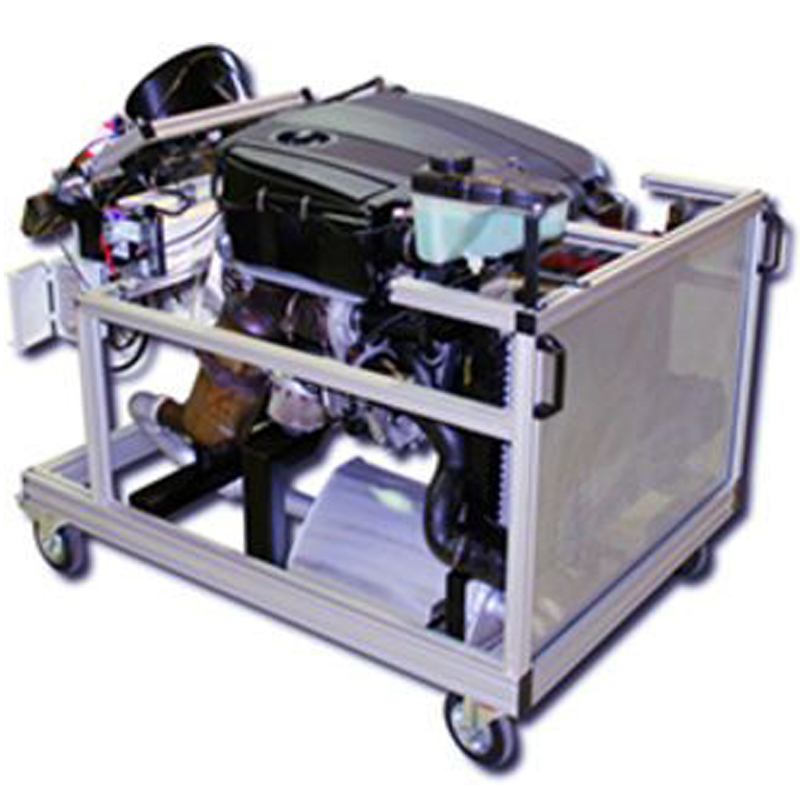

4-Cylinder Engine From BMW (N43/N13)

Decide for yourself whether you just need a fully functioning engine or even a fully set-up vehicle. All systems are manufactured to the highest safety standards, in such a way that there is no immediate access to any rotating parts. Any components which may get hot are also covered. All systems can be equipped with fault simulation capabilities and signals can be measured with the help of break-out boxes. Original workshop documentation is supplied with all systems.

List of Articles

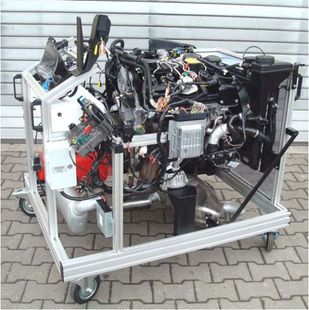

Gasoline Direct Injection (BMW, 4 Cylinder)

The BMW N43/N13 is a modern 4-cylinder engine which made its debut in 2007 in the BMW 1 series (E87/88). This light-metal engine has two overhead camshafts and 16 valves. It saw the first use of 2nd generation gasoline direct injection, marketed as High Precision Injection, which involved piezo-injectors directing a jet of fuel towards the spark plugs, thereby allowing more accurate dosing of the fuel. Because of the direct-injection design, the engine includes an NOx catalytic converter and is capable of switching to stratified charge injection mode. The whole of the exhaust assembly is included with the engine. The training system consist ouf of a used engine with a low mileage.

Technical details:

• HPI (High Precision Injection)
• Stratified charge injection
• Systems for treatment of exhaust gases
• OBD (on-board diagnostics)
• Fittings and controls
• Original cable harness
• Used engine but with low mileage

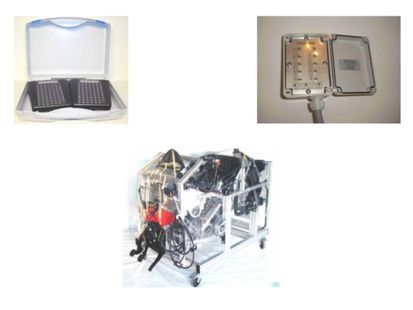

Addon Package for Gasoline Direct Injection (BMW, 4 Cylinder)

The supplementary package for the BMW direct fuel injection engine enhances the engine with the following functions:

• Controller is foolproof thanks to the CAN simulation included
• Built-in fault-simulation circuitry (20 faults)
• Breakout box (186 pins) for making measurements on sensors and actuators
• Cover

Faults which can be activated:

In principle, the fault switches can be used to simulate breaks or junction resistances in the following components:

• Metering control valve (fuel supply)
• Suction tube pressure sensor
• Rail pressure sensor
• Crank shaft sensor
• Mass air flow meter
• Ignition coil (cylinder 2)
• Injector valve (cylinder 2)
• Accelerator pedal module
• Throttle valve adjustment
• Coolant temperature sensor

Measuring Instruments

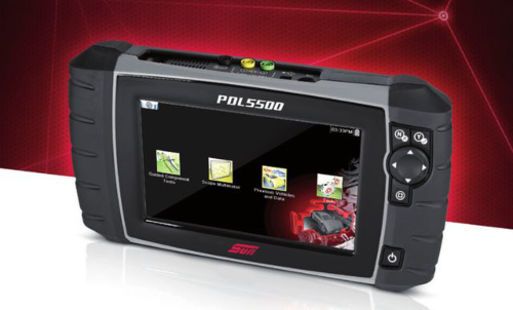

Sun Handheld Diagnostics Unit PDL 5500 German Version

SUN PDL 5500 – Official successor to the world renowned "MODIS" diagnostic tester

Customer satisfaction and the success of the earlier MODIS were motivation enough to make the best even better. That is why all the existing functions have been redesigned, made simpler and further optimised. There is more functionality, a faster operating system and a bigger 8“ colour touch screen. That means that the PDL 5500 has not merely been restyled but completely reconceived.

The inexpensive SUN PDL 5500 multi-function equipment is an unusual combination of tried and trusted technology with ease of use, tailored to the everyday needs of modern vehicle repair shops. The SUN PDL 5500 only needs 5 seconds to boot and displays fault codes and live data within 30 seconds. A guided Fast-Track® component test for easy location of faults is also built in. Rapid comparison between component faults ensures certainty and clarity in seeking out faults.

Key features:

• Scanner, oscilloscope and expert information in a single device
• Navigation by means of intuitive  8" touch screen or 4-key key-pad
• Measurement data can be stored on a MicroSD card
• Communication with a PC via USB and ShopStream software
• Graphic, digital, 2-channel multimeter
• 2-channel high-speed trigger and lab scope
• Guided component tests
• Manufacturer-specific model coverage for more than 40 marques
• Coverage for multiple vehicle systems (TPMS, PDC, suspension, hybrid drives etc.)
• Provides manufacturer-specific codes, live data, function tests plus learning and adaptation functions.
• Rechargeable battery charged via OBD terminal
• Dimensions: 285 x 50 x 150 mm/Weight: 1.2 kg

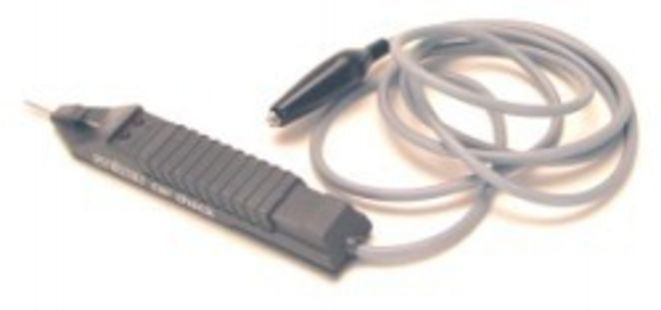

Test Lamp

Vehicle voltage tester. Due to its small current consumption of 1.5 mA, the CAR-CHECK tester is particularly well suited to finding faults with electronic components. Conventional test lamps often cause damage to these. Polarity indication via two LEDs.

• Nominal voltage range: 3...48 V
• Length of lead: 150 cm
• Weight: 0.2 kg

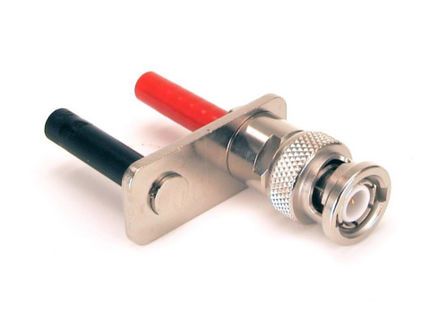

Adapter BNC/2x4 mm Safety Sockets, Insulated

Adapter plug for connecting BNC connector to 4-mm safety sockets

• BNC plug, 2 insulated 4-mm safety sockets
• Contact rings and sockets for internal pin of BNC connector are made of gilded brass
• CAT II/1000 V

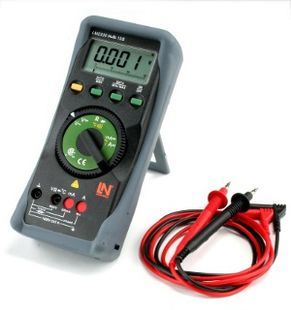

Multi13S Digital Multimeter

Universal precision lab multimeter and temperature meter with IR interface for high-quality, universal measurement and testing in educational settings, power plants, process control installations etc.

• 3¾-digit multimeter; resolution: ±3,100 digits
• Measurement classification CATII-1000 V
• Can be connected to UniTrain system via IR interface
• Voltage and current measuring ranges: 30 mV-1000 V DC, 3 V-1000 V AC; 3 mA-16 A DC; 30 mA-10 A AC
• Resistance ranges: 30 ohm-30 Mohm
• Special functions: °C for temperature measurements using PT100/1000 thermocouple (optional accessory)
• Continuity and diode testing
• Automatic range selection and battery shut-off, min./max. and data hold function
• Safety fuse for current measurement range up to 300 mA
• Protection against high currents in the mA range for nominal voltage of 1000 V
• Display with bar chart and backlighting
• Includes protective sleeve, measuring leads, 1 x spare fuse, 9V battery, calibration certificate

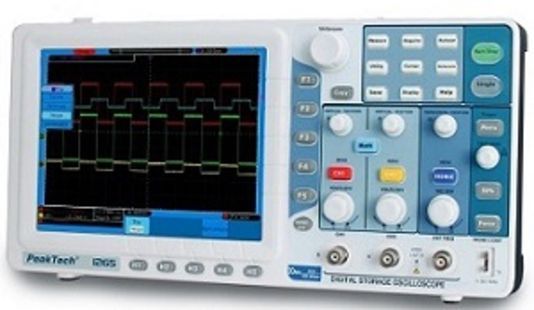

Digital Dual Trace Storage Oscilloscope W. Colour Display, Incl. Probes 30 MHz

Digital storage oscilloscope with colour LCD display, high resolution, backlighting and USB port for transmission of large quantities of data at high data rates.

Technical data:

• Bandwidth 30 MHz/125 MS/s
• Maximum input voltage 400 V
• 8" TFT colour display
• USB port, USB flash disk, LAN, VGA
• Cursor function
• Five automatic measurement functions, storage and retrieval of traces
• Edge and video trigger function
• Safety specifications: EN 61010-1
• Supplied with accessories: 2 probes, mains lead, USB cable, software CD
• Dimensions: 350x157x120 mm (WxHxD)
• Weight: 1.0 kg
