DC/ AC Conversion

Electric energy is tapped at the car battery in the form of DC voltage and is then applied as a DC current. However, in modern electrical drives an AC voltage is needed with an approximate sinusoidal alternating current. In this course the generation of AC voltage and currents is described and demonstrated in a simple and graphic fashion. The knowledge acquired in the theoretical section is then verified empirically by means of experiment. All of the components needed for the experiment are arranged on a single printed circuit board. In knowledge tests the student's progress is checked and thus the most important aspects of DC/AC conversion are effectively learned in the fastest possible time.

List of Articles

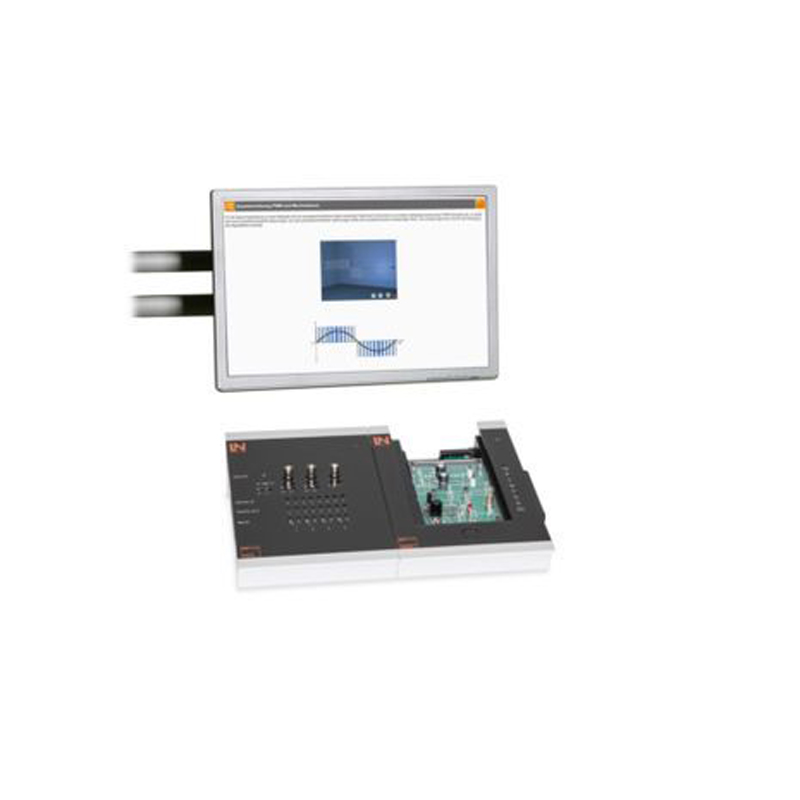

UniTrain: DC/AC conversion in vehicles

This UniTrain course provides easy-to-understand material on the benefits and function of DC/AC conversion in the automotive area. Thanks to target-group oriented theory and practical experiments, the trainee becomes familiar with the technical processes and components required to make DC/AC conversion possible.

Includes:

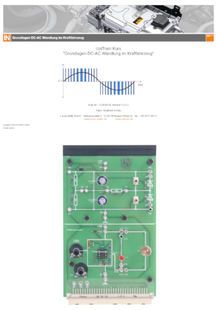

• 1 Experiment card (potentiometer and incandescent lamp, PWM generator, DC-AC converters)
• LabSoft browser course software and virtual instruments

Training contents:

• Electrical induction
• Lorentz force
• “Right hand rule”
• Relationship between current and voltage
• Pulse width modulation (PWM)
• PWM and voltage
• PWM and current
• Generating upper half-wave
• Generating AC voltage
• Rotating electrical field
