CarTrain Common Rail with Variable Geometry Turbocharger

Part No.: MPLCNL-CarTrain-Common-Rail-with-Variable-Geometry-Turbocharger
All the sensors and actuators can be investigated and assessed by means of a wide range of measurements.

產品介紹

CarTrain Common Rail with Variable Geometry Turbocharger

This combination of a common rail engine management system with a variable geometry turbocharger illustrates the fascinating topic of charge optimisation in a modern fuel injection system. All the sensors and actuators can be investigated and assessed by means of a wide range of measurements. The built-in fault simulation feature facilitates training focussed on hands-on skills.


List of Articles

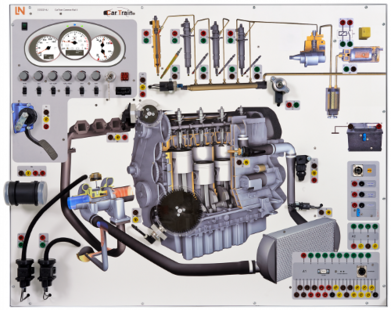

CarTrain Common Rail with VNT


CarTrain Common Rail with VNT provides an effective and efficient learning environment using a variety of media relating to automotive engineering. It is based on the latest methods and educational experience and utilises the possibilities offered by modern technology. The combination of various media in a learning platform offers trainees a comprehensive view of engine management systems and guides them towards a deep and genuine understanding.

The system combines hardware and software with good educational logic. The hardware for the experiments consists of authentic components used in real vehicles. Each component is observed in a realistic setting both as an individual element and as part of the engine management system as a whole. The components are connected via two control units, which pick up the signals from the sensors connected in the system and trigger the actuators as appropriate. This allows the overall process of an input-processing-output (IPO) model to be represented as it is used in practice. Various driving situations can be studied. The sensors and actuators of the engine management system are all authentic components and are fully functional.

The accompanying software includes the full training curriculum and uses multimedia to illustrate the components present inn the hardware. The whole system is covered in the course, including its open and closed-loop control circuits as well as the individual sensors and actuators. In addition, students are continuously challenged to interact with the equipment. Extensive instructions for experiments and measurements using the components are also included.

The fact that the training system is fully wired ensures that it can be instantly deployed and put to use.


Training contents

  • Power supply
  • Engine control unit for a Common Rail system
  • Sensors in a Common Rail system, design and function
  • Actuators in a Common Rail system, design and function
  • Design of Common Rail system
  • Interaction between components
  • How the system's closed-loop control systems work
  • Interpretation of circuit diagrams
  • Use of circuit diagrams
  • Interpretation of nominal and target data for vehicles
  • Use of target data in measurements
  • Development of diagnostic skills
  • How to use measuring instruments typically employed in vehicle repair shops
  • Practical measurements on components in the engine management system
  • Use of standard diagnostic routines
  • Limitation of errors and faults by the following means:
    • Testing functionality
    • Use of sensory perception
    • Read out from fault memory
  • Measurement and testing of electric, mechanical and pneumatic variables
  • Setting up engine management systems
  • Technical communication
  • Preparation of test logs, evaluation and documentation of results
  • Flow of information between data transmission systems
  • Expert systems and telediagnostics
  • Use of hotline
  • Programming control units via Ethernet
  • Default values and resetting of control units

The training system includes the following:

  • Authentic components made by various vehicle manufacturers
  • Hardware and software for theory and practical lessons
  • Software for self-directed study and demonstration
  • Predefined tests and results
  • Computer-based theory studies using 3D animation
  • Computer-based measurements in practical experiments
  • Fully operable OBD interface
    • Connection to any testers typically used in shops via OBD and diagnostic CAN
  • Switchover between real and simulated operation for sensors
  • Fault simulation capabilities via PC, covering more than 30 faults

The system includes a programmable control unit, which universally supports and processes various parameter sets by loading the requisite software settings.

  • Operating voltage
  • Air intake temperature
  • Engine temperature
  • Crankshaft revs
  • Intake mass-flow rate
  • Cam shaft signals
  • Rail pressure
  • Charging pressure
  • Fuel pump control
  • Exhaust gas recirculation
  • Glow-plug control
  • Accelerator setting

Virtual instruments

  • Interface with multimedia experiment – measurements can be copied to the course instructions via drag and drop
  • Simultaneous measurement of at least two voltages and current
  • Oscilloscope function handles three channels with simultaneous multimeter display
  • Measuring ranges: V<250 V=/~, I<15 A=/~ measured directly from the circuit
  • Circuit range protected by automatic fuse
  • USB port

Electrical terminals use 4-mm safety sockets. Pins are logically labelled. All measurement sockets are colour-coded, which is beneficial to the educational effect. Sensor signals, control signals for actuators and power supply sockets are each coded in a different colour.

The training system has a compact design. The housing is made of high-strength metal. Front and rear panels comprise pressed laminate panels, 5 mm thick, with tough melamine resin coating on both sides. The background colour of the panels is RAL7035 (light grey). Dimensions are approximately 800 mm in height and 1000 mm in width. On the front the engine block and system components are pictured using high-contrast, UV-resistant colour printing. The UV-resistant ink retains its colour even when exposed to sunlight. A special method involving an addition lacquer coat ensures that the equipment is durable and scratch-resistant without adversely affecting the clarity and legibility of the printing on the front panel. The rear is protected from contact by a cover plate. The housing can be modified into a special wheeled mode. Alternatively the housing can be set up directly on a bench or table on secure feet.


Includes:

  • Training system with mains connection, 110V-240V AC, 50-60 Hz
  • Integrated measurement hardware
  • A 12-14 V power supply is built into the housing
  • Set of measuring leads
  • OBD diagnostic tester
  • USB cable
  • CD with basic software
  • Operating instructions

System requirements:

  • Personal computer with Windows 7 (32- or 64-bit version)
  • CD-ROM drive for installing software
  • USB port for connecting measurement hardware

Technical data:

  • Dimensions: 980 x 780 x 210 mm (WxHxD)
  • Weight: 20 kg

Additionally Required


Set of Leads for CarTrain Engine Management Training Systems


This set provides you with the 4-mm safety leads you need to carry out the multitude of experiments possible with the CarTrain training systems. The leads are simply connected by means of 4-mm safety sockets to the measurement unit and the components upon which measurements are to be made.


The set of leads contains:

  • 3 x 4-mm safety measurement leads, red (100 cm)
  • 3 x 4-mm safety measurement leads, black (100 cm)

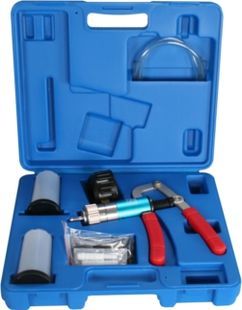

Over-/Under Pressure Pump


Manual pump for monitoring and setting under-pressure or over-pressure functions. Quick and easy to use. Integrated discharge valve for reducing the under-pressure or over-pressure, without removing the terminal connections. With a connection hose and a variety of end pieces.

  • Under-pressure: -1000....+1000mbar
  • Weight: 0.4kg

Additionally Recommended


Sun Handheld Diagnostics Unit PDL 5500 German Version


SUN PDL 5500 – Official successor to the world renowned "MODIS" diagnostic tester

Customer satisfaction and the success of the earlier MODIS were motivation enough to make the best even better. That is why all the existing functions have been redesigned, made simpler and further optimised. There is more functionality, a faster operating system and a bigger 8“ colour touch screen. That means that the PDL 5500 has not merely been restyled but completely reconceived.

The inexpensive SUN PDL 5500 multi-function equipment is an unusual combination of tried and trusted technology with ease of use, tailored to the everyday needs of modern vehicle repair shops. The SUN PDL 5500 only needs 5 seconds to boot and displays fault codes and live data within 30 seconds. A guided Fast-Track® component test for easy location of faults is also built in. Rapid comparison between component faults ensures certainty and clarity in seeking out faults.


Key features:

  • Scanner, oscilloscope and expert information in a single device
  • Navigation by means of intuitive  8" touch screen or 4-key key-pad
  • Measurement data can be stored on a MicroSD card
  • Communication with a PC via USB and ShopStream software
  • Graphic, digital, 2-channel multimeter
  • 2-channel high-speed trigger and lab scope
  • Guided component tests
  • Manufacturer-specific model coverage for more than 40 marques
  • Coverage for multiple vehicle systems (TPMS, PDC, suspension, hybrid drives etc.)
  • Provides manufacturer-specific codes, live data, function tests plus learning and adaptation functions.
  • Rechargeable battery charged via OBD terminal
  • Dimensions: 285 x 50 x 150 mm/Weight: 1.2 kg

Protection Cover for CarTrain/InsTrain Experiment Trolleys




Dust cover for CarTrain/InsTrain experiment trolleys

  • For protecting equipment from dust and damp
  • For keeping equipment out of sight
  • Colour: matt dark grey with printed LN logo in orange)
  • Material: nylon fabric with polyurethane coating
  • High resistant to tearing, impregnated to be washable and waterproof

Accessories


Set of Circuit Breakers for Vehicles (10A/15A)


  • Single-pole thermal circuit breaker for vehicles, slim format with coloured manual trip switch
  • Reliable tripping response thanks to snap-action trip switch
  • Tamper-proof rip interlock to prevent reactivation of the circuit till the fault is rectified
  • Plugs into low-profile vehicle fuse box
  • Nominal voltage 12V

The set comprises the following components:

  • 1x 10A vehicle circuit breaker
  • 1x 15A vehicle circuit breaker

SybaPro Mobile InsTrain/CarTrain Experiment Trolley, 1070x1350x700mm


The mobile aluminium-profile experiment trolley is specially designed to accommodate components of the InsTrain and CarTrain system. All the Ins-Train and CarTrain system components can be safely mounted in structured fashion for lessons from the front of a class or for students' own practicals. For students, this provides a modern, educationally designed workplace with a worktop and connections for multimedia.

  • The mobile experiment stand is delivered in kit form and needs to be assembled by the customer
  • Aluminium profile with integrated grooves for attaching a wide variety of components (e.g. PC and monitor-holders)
  • 4 steerable double casters, 2 with brakes
  • Worktop 1000 x 30 x 700 mm (WxHxD)
  • Table top made of highly compressed multilayered chipboard conforming to DIN EN 438-1, light grey, with double-sided 0.8 mm slightly textured laminate coating (Resopal) in compliance with DIN 16926
  • Table top bordered with solid, impact-resistant edging made of 3-mm thick plastic, colour RAL 7047
  • Coating and adhesives must be PVC-free
  • Power strip with 5-outlet sockets and power switch, lead and earthed plug
  • Height of table top 830 mm
  • Dimensions without CarTrain/InsTrain-System: 1070 x 1350 x 700 (WxHxD)
  • Dimensions with CarTrain/InsTrain-System: 1070 x 1650 x 700 (WxHxD)

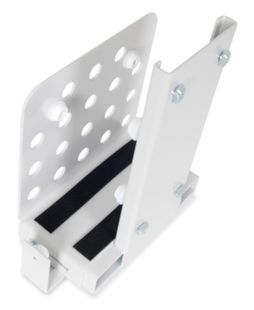

PC Holder for SybaPro Experiment Trolleys, Height/Width Adjustable


Shelf for desktop PC made of 2 mm sheet steel punched with holes, suitable for all furniture in the SybaPro aluminium profile range

  • Adjustable assembly height
  • for slim PCs, adjustable width (60 - 160 mm)
  • with fastening and rubber stopper
  • Can be mounted to left or right
  • Includes all equipment necessary for assembly (4 bolts and 4 tenon blocks)
  • Acid-resistant epoxy-resin powder coating, 80 µm thick approx., colour RAL7047

Monitor Holder for Flat Screen Monitor of Weight up to 15kg / 33lbs


Pivoting monitor holder for attachment to aluminium profiles of furniture in the SybaPro range. Allows a monitor to be placed in the optimum position so that work and experiments are less tiring.

  • Pivoting arm with two-part joint
  • Quick-lock for adjustment to any height on extruded aluminium profile
  • VESA fastening 7.5 x 7.5cm
  • Includes VESA 75 (7.5x7.5) - VESA 100 (10x10) adapter
  • 2 Cable clips
  • Adequate carrying capacity 15 kg / 33 lbs
  • TFT monitor can be turned parallel to the table edge
  • Separation can be adjusted to anywhere between 105 and 480 mm

Additionally included:

Cable management set for installing cables along the profiles of the aluminium lab system furniture in the SybaPro range, consisting of:

  • 3 Cross cable blocks for front and rear grooves of aluminium profile
  • 3 Cross cable blocks for side grooves of aluminium profile
  • 12 Cable ties
  • 4 Aluminium cover profiles for covering and enabling wires to be run along the grooves of an aluminium profile

Under-Table Cabinet, Suspended, 4 Drawers, Central Locking


  • 1 Utensil drawer
  • 1 Drawer, 2 HU
  • 2 Drawers, 4 HU
  • Usable width: 330mm, usable depth: 480 mm
  • Central locking
  • Metal drawers with surrounding row of slots
  • Body made of 19 mm-thick, highly-compressed, multi-layered fine chipboard with grade E1 plastic coating on both sides
  • Dimensions: 430 x 580 x 590 mm (WxDxH)
