Interface for the Teacher

The teacher's measurement interface gives the teacher the complete overview and control over all active measurements. He only needs to select one or more channels of the interface and connect them with the training system via the 4mm safety measurement cables.

List of Articles

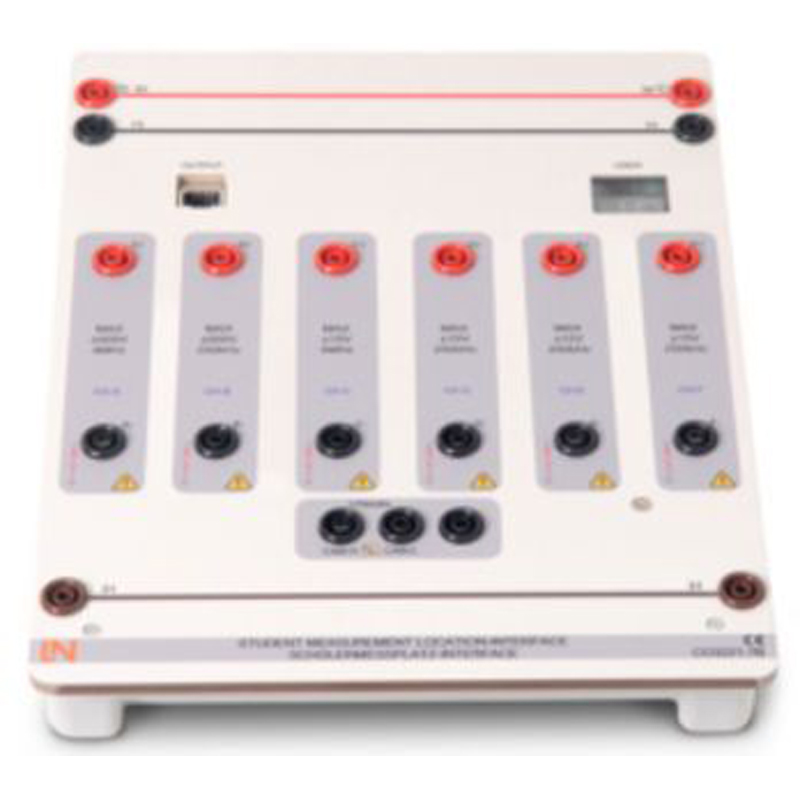

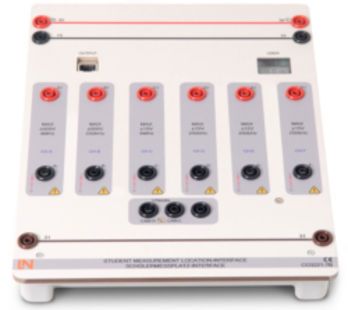

Teachers Location Measurement Interface

The instructor's measurement station interface is designed to record voltage signals. These signals are processed digitally and then transmitted to interconnected student measurement stations by means of Ethernet technology.

System specifications

• Mobile measurement station interface for the recording and further transmission of measurement signals to student measurement stations.

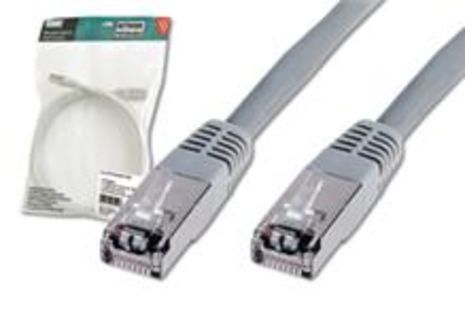

• Data transmission performed via Ethernet cable (1 x 1m CAT6 cable according to the best industry standards included).
• Measurement counter with display of the interconnected student measurement stations.
• Indicator signals presence of power voltage.
• Warning light to indicate errors on signal line.
• Sockets for voltage connection to a training stand.
• Input sockets designed as 4-mm safety measurement sockets:
• Minimum assignment of inputs:
  • 2 x 2 sockets +/- 500 V analog input
  • 4 x 2 sockets +/- 15V analog input
• Built-in CAN-transceiver chip, class B
• Dimensions: 228 x 296 x 125mm (WxHxD)
• Weight: 2 kg

Additionally Recommended

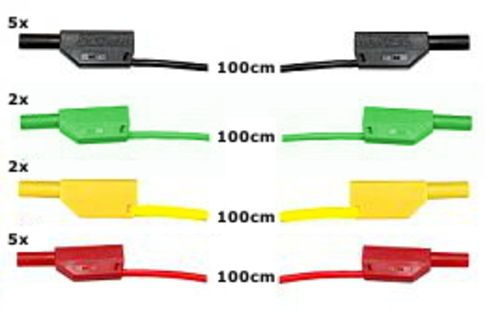

CarTrain Measurement and Diagnostic Safety Test Leads (14 units)

The set of CarTrain measurement and diagnostic leads are used to carry out measurement exercises and repairs on the CarTrain system. Furthermore these measurement leads are also well suited for voltage transmission in the student and instructor measurement station system.

• 5 Safety connecting leads 4 mm, 100 cm, black
• 5 Safety connecting leads 4 mm, 100 cm, red
• 2 Safety connecting leads 4 mm, 100 cm, green
• 2 Safety connecting leads 4 mm, 100 cm, yellow
• Line cross-section 2.5 mm2
• Rating data: 600V CAT II, 32A
