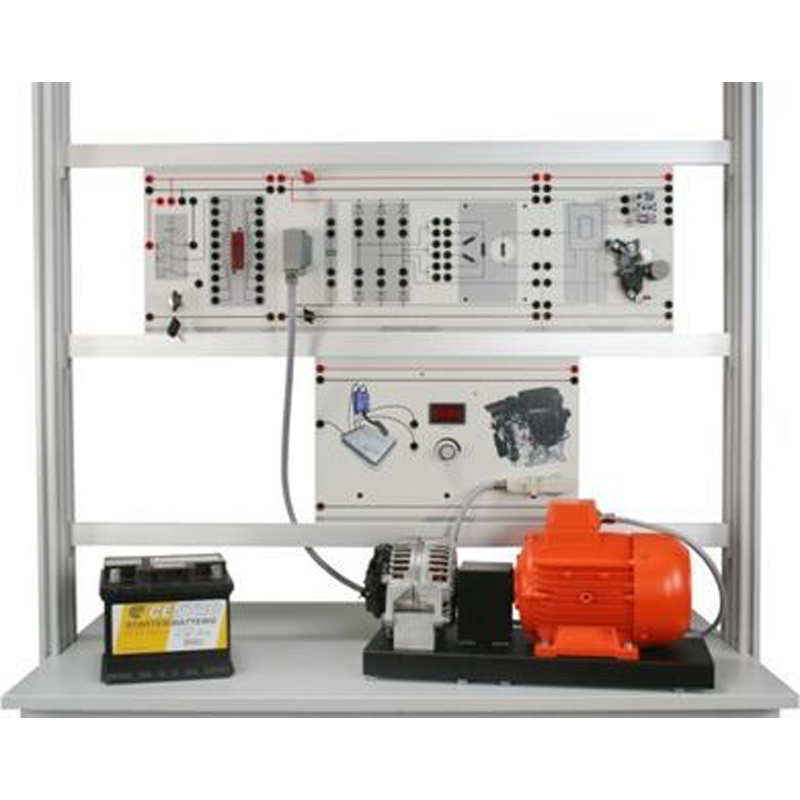

Three-Phase Generator with Multifunction Controller Trainer (Modular System)

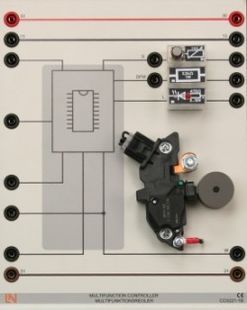

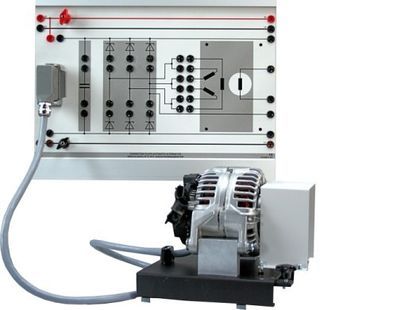

This training system is used to examine how energy is generated in modern motor vehicles. Today‘s compact generators make use of a monolithic controller. This kind of multifunction controller (MFC) has now largely replaced hybrid controllers. A progressive sequence of experiments gradually introduces students to the subject of power generation in automobiles.

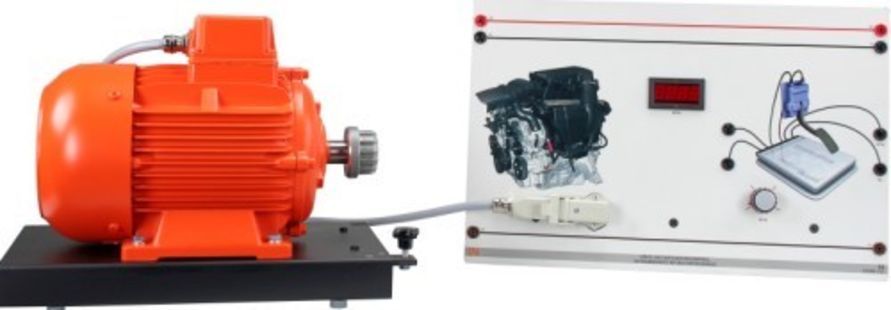

Drive Unit for Alternator with REV Counter and Engine Management

The drive unit is designed in the form a model typically used in industry and mounted on a base frame to damp down oscillations. It consists of a digital controller and a powerful drive motor. The control unit combines the latest technology with ease of use.



The controller has the following features:

• Regulation of idling speed on starting
• Continuous speed regulation
• Controllable via separate ignition lock
• Digital display of revs
• Drive motor connected directly to controller via compact plugs
• Thermal monitoring of motor
• Dimensions: 297 x 460 x 420mm (HxWxD)
• Weight: 18kg

A three-phase connection is not required since the drive motor is powered from the 230V mains.

• The motor has the following features:
• Runs after starting like a vehicle engine with a specific idling speed
• Power: 1.5kW/230V
• Motor with temperature monitoring
• Nominal voltage 12A
• Speed range 400 – 4500rpm
• Dimensions: 360 x 300 x 200mm (HxWxD)
• Weight: 21kg

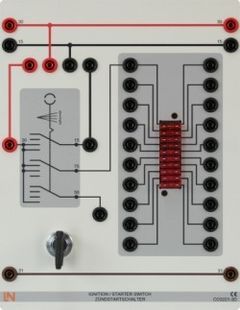

Ignition Key with Fuse

Safety starter motor ignition switch with three switching levels and three positions to supply current to terminals 75, 15 and 50. 10 fuse plugs are included which can accommodate plug-in vehicle circuit breakers. The circuit breaker connectors can be tapped via 4-mm safety sockets and can clearly and easily be connected via space-saving jumpers to supply current to terminals 15 or 30. Power supply is laid out for improved educational effect at the top and bottom of the board and colour-coded in accordance with DIN72551.

• I/O: 4mm safety sockets
• Dimensions: 297 x 228 x 90mm
• Weight: 1kg

Media

Interactive Lab Assistant: Generator with Multi-Function Controller

This multimedia course imparts to you all the theoretical knowledge you need and also provides practical experiments so that you can master the necessary diagnostic skills, all in a modern and attractive design. Countless animations show trainees how hybrid regulators work, while the practical experiments solidify that knowledge. The course offers trainees a perfect guide to leads them through the entire topic. Numerous tests of knowledge mean that the trainees can obtain continuous feedback on their progress, meaning that any areas of concern can be quickly identified and remedied.

• Fundamentals of power generation
• Alternator voltage regulation
• Functionality of a rectifier
• Alternator fault diagnostics
• Multi-function controller
  • Battery sensing
  • Controlled pre-excitation
  • Monitoring of alternator activity
  • Emergency control
  • Fault indication
  • DF (digital field) monitor
  • Load response

System requirements:

• Personal computer with Windows Vista, Windows 7, Windows 8, Windows 8.1
• USB port for connection to Interface

Measuring Instruments

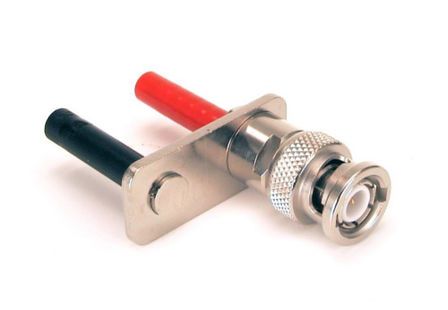

Adapter BNC/2x4 mm Safety Sockets, Insulated

Adapter plug for connecting BNC connector to 4-mm safety sockets

• BNC plug, 2 insulated 4-mm safety sockets
• Contact rings and sockets for internal pin of BNC connector are made of gilded brass
• CAT II/1000 V

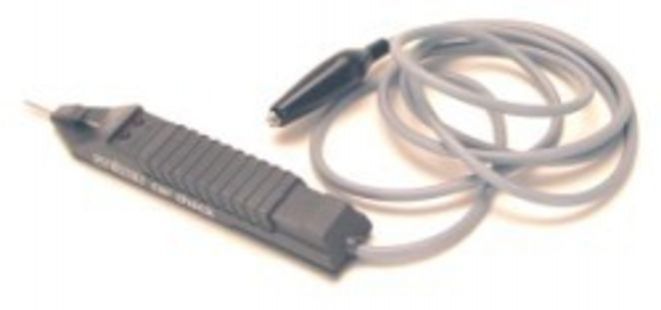

Test Lamp

Vehicle voltage tester. Due to its small current consumption of 1.5 mA, the CAR-CHECK tester is particularly well suited to finding faults with electronic components. Conventional test lamps often cause damage to these. Polarity indication via two LEDs.

• Nominal voltage range: 3...48 V
• Length of lead: 150 cm
• Weight: 0.2 kg

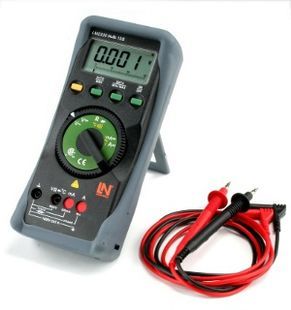

Multi13S Digital Multimeter

Universal precision lab multimeter and temperature meter with IR interface for high-quality, universal measurement and testing in educational settings, power plants, process control installations etc.

• 3¾-digit multimeter; resolution: ±3,100 digits
• Measurement classification CATII-1000 V
• Can be connected to UniTrain system via IR interface
• Voltage and current measuring ranges: 30 mV-1000 V DC, 3 V-1000 V AC; 3 mA-16 A DC; 30 mA-10 A AC
• Resistance ranges: 30 ohm-30 Mohm
• Special functions: °C for temperature measurements using PT100/1000 thermocouple (optional accessory)
• Continuity and diode testing
• Automatic range selection and battery shut-off, min./max. and data hold function
• Safety fuse for current measurement range up to 300 mA
• Protection against high currents in the mA range for nominal voltage of 1000 V
• Display with bar chart and backlighting
• Includes protective sleeve, measuring leads, 1 x spare fuse, 9V battery, calibration certificate

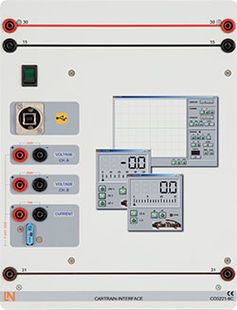

Modular Measurement Interface

The CarTrain Interface takes the form of a DIN A4 experiment card with rounded corners, colour-coded in compliance with DIN72551 for educational assistance.

Safety measurement sockets are also coded on the basis of DIN72551.

The design resembles circuit diagrams depicted in a detached or exploded view with power supply wiring running between panels.

• Interface for multimedia experiment literature – measurements need to be copied into the experiment instruction pages using drag and drop.
• Two voltage values and one current can all be measured simultaneously
• 3-channel oscilloscope function can be used at the same time as the multimeter display
• Measurement range: V<250 V=/~, I<15A=/~ direct measurement within the circuit
• USB interface
• External power supply to ensure measurements can be made even when short circuits are present
• Current measuring range protected by automatic circuit breaker
• Dimensions: 228 x 296 x 125 mm (WxHxD)
• Weight: 2 kg

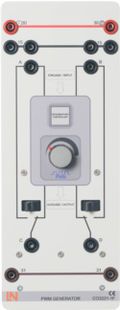

Dual-Channel PWM Generator

Includes:

• 1 Training panel (dual-channel PWM generator, switchable between PWM or direct feed to output)

Training contents:

• Dual-channel PWM generator for use in circuits typical in motor vehicles.
• Functions of modern on-board networks
• Compliance with German traffic regulations (StVZO)
• Control parameters
• Reading and interpreting circuit diagrams
• Assembly of both simple and more complex circuitry
• Fuse protection for circuits
• Making measurements and finding faults
• Circuit variants for daylight running lights
• Circuit variants for tail/brake lights

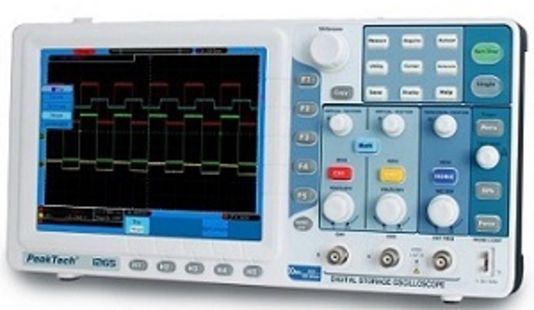

Digital Dual Trace Storage Oscilloscope W. Colour Display, Incl. Probes 30 MHz

Digital storage oscilloscope with colour LCD display, high resolution, backlighting and USB port for transmission of large quantities of data at high data rates.



Technical data:

• Bandwidth 30 MHz/125 MS/s
• Maximum input voltage 400 V
• 8" TFT colour display
• USB port, USB flash disk, LAN, VGA
• Cursor function
• Five automatic measurement functions, storage and retrieval of traces
• Edge and video trigger function
• Safety specifications: EN 61010-1
• Supplied with accessories: 2 probes, mains lead, USB cable, software CD
• Dimensions: 350x157x120 mm (WxHxD)
• Weight: 1.0 kg

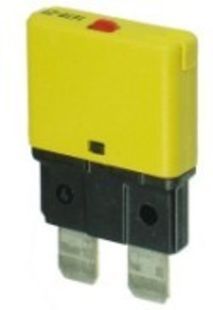

Set of Circuit Breakers for Vehicles (10A/15A)

• Single-pole thermal circuit breaker for vehicles, slim format with coloured manual trip switch
• Reliable tripping response thanks to snap-action trip switch
• Tamper-proof rip interlock to prevent reactivation of the circuit till the fault is rectified
• Plugs into low-profile vehicle fuse box
• Nominal voltage 12V

The set comprises the following components:

• 1x 10A vehicle circuit breaker
• 1x 15A vehicle circuit breaker

Accessories

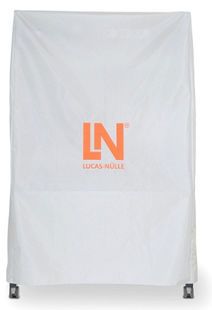

Protection Cover for Three-Level Experiment Trolleys

Dust cover for three-level experiment trolleys

• For protecting equipment from dust and damp
• For keeping equipment out of sight (the cover must not be transparent, so is therefore opaque)
• Colour: matt dark grey with printed LN logo in orange)
• Material: nylon fabric with polyurethane coating
• High resistant to tearing, impregnated to be washable and waterproof

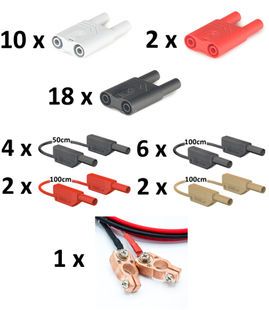

Set of 4mm Safety Connection Components for Modulare Training System "Alternator"

Set of connectors including:

• 1 x Positive terminal
• 1 x Negative terminal
• 1 x Battery lead, red
• 1 x Battery lead, brown
• 2 x Safety connector plugs 19/4mm, red
• 18 x Safety connector plugs 19/4mm, black
• 10 x Safety connector plugs 19/4mm, white with tap connection
• 6 x 4mm safety measuring leads, 100 cm, black
• 4 x 4mm safety measuring leads, 50cm, black
• 2 x 4mm safety measuring leads, 100cm, red
• 2 x 4mm safety measuring leads, 100cm, brown

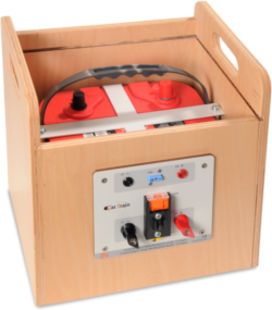

AGM 50Ah/12V Battery with Wooden Case and Circuit Breaker

• Absorbent glass mat (AGM) battery, 55 Ah/12 V
• Acid-resistant housing
• Automatic circuit breaker for protection against short circuits
• 4mm safety connectors
• Terminals for battery cables
• Dimensions: 325 x 330 x 275 mm
• Weight: 23.5 kg

Deposit Certificate for Starter Batteries

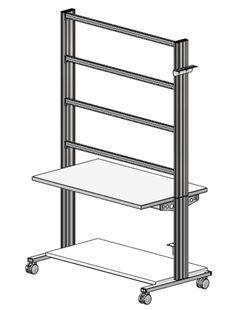

Mobile Aluminum Experiment Stand, 3 Levels, Power Strip with 6 Sockets, 49"x28"x79" WxDxH (1250x700x1995mm)

High-quality mobile experiment and demonstration trolley from the SybaPro range featuring aluminium table legs and low-level shelf.

This trolley is suitable for mounting under-table cabinets and is compatible with all add-ons and extensions in the SybaPro range.

It is supplied with one shelf, an angle bracket for attaching a PC and a cable holder.

Table top + Shelf:

• 30-mm table top made of highly compressed, multi-layer fine chipboard conforming to DIN EN 438-1
• Colour grey, RAL 7035, with 0.8-mm slightly textured laminate coating (Resopal) on both sides, conforming to DIN 16926
• Resistant to many chemicals and reagents including dilute acids and alkalis
• Resistant to heat, e.g. molten solder or heating at specific points such as by soldering tips or cigarette ends
• Frame with solid impact-resistant protective edging made of 3 mm thick RAL 7047 coloured plastic
• Coating and adhesive are PVC free
• Power strip with 6 outlet sockets mounted underneath the table top, lead and earthed plug

Frame:

• 2 extruded aluminium profiles with multiple grooves 1800 x 120 x 40 mm (WxHxD)
• 8 equally sized grooves in extruded aluminium profiles (3 on each side and 1 each on the front and back)
• Grooves accommodate standard industrial mountings
• 4 H-shaped aluminium profiles, 1150 mm, for 3-layer organisation of DIN A4 panels
• Space for extension of power supply duct
• Base made of rectangular tubing with 4 swiveling double casters, 2 of which have brakes
• Table frame made of tough combination of rectangular tubing around the full perimeter
• Acid-resistant epoxy-resin coating, 80 µm thick (approx.), colour RAL 7047

Cable holder:

• Width 200 mm with 12 cable slots to accommodate 48 x 4-mm safety measurement leads

PC attachment bracket:

• With 3 screw-on rubber stoppers, dimensions 65x65x114 mm approx. (top fixing for PC)

> The height of the cable holder and PC attachment bracket can be adjusted along the aluminium profiles

> For attachment to left or right, fastening materials included

> Acid-resistant epoxy-resin powder coating of thickness 80 µm approx., colour RAL 7047

Dimensions:

• Height of table top 760 mm
• 1250 x 1970 x 700 mm (WxHxD)

The mobile experiment stand is supplied in kit form and needs to be assembled by customers themselves.
