ALC 1.1 Main Lighting Trainer

The main lighting system including all supplementary equipment is comprised of original automotive components. With this system you establish the foundation for an individually expandable lighting panel wall. Combine other modules together to provide clear and easy understanding of a highly complex lighting system.



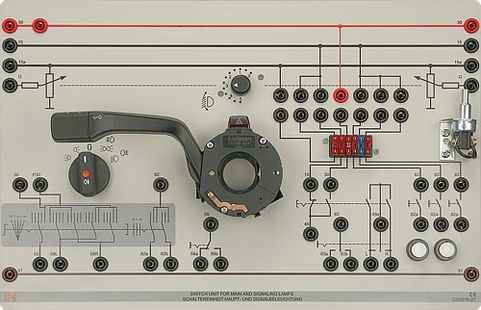

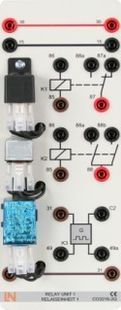

Basic Equipment Set, Consisting of...

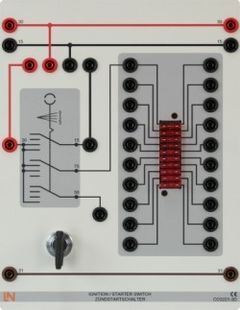

Ignition Key with Fuse

Safety starter motor ignition switch with three switching levels and three positions to supply current to terminals 75, 15 and 50. 10 fuse plugs are included which can accommodate plug-in vehicle circuit breakers. The circuit breaker connectors can be tapped via 4-mm safety sockets and can clearly and easily be connected via space-saving jumpers to supply current to terminals 15 or 30. Power supply is laid out for improved educational effect at the top and bottom of the board and colour-coded in accordance with DIN72551.

• I/O: 4mm safety sockets
• Dimensions: 297 x 228 x 90mm
• Weight: 1kg

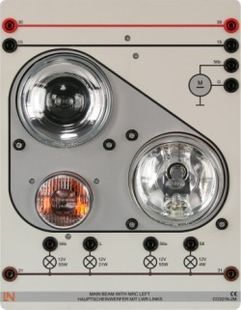

Main Headlight Unit with Side Light, Headlight Range Control & Indicator (Left)

Complete headlight unit with headlight range control

• Operating voltage: 12 V
• Operational units: Actuator motor for range control
  • Indicator light PY 21W
  • Dipped headlight H7 55W
  • Main beam H7 55W
  • Parking lights T 4W
• Inputs/outputs: 4mm safety sockets
• Dimensions: 297 x 228 x 160 mm

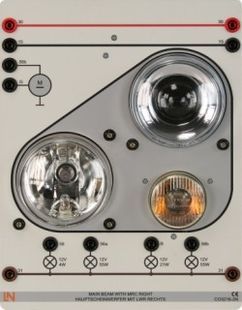

Main Headlight Unit with Side Light, Headlight Range Control & Indicator (Right)

Complete headlight unit with headlight range control

• Operating voltage: 12 V
• Operational units: Actuator motor for range control
  • Indicator light PY 21W
  • Dipped headlight H7 55W
  • Main beam H7 55W
  • Parking light T 4W
• Inputs/outputs: 4mm safety sockets
• Dimensions: 297 x 228 x 160 mm

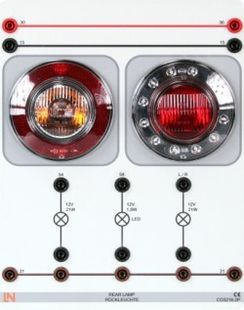

Tail Light Unit with LED Rear Light (Left)

Complete tail light unit with modern LED rear light and stipulated reflector

• Operating voltage: 12 V
• Operational elements: LED rear light 1.8W
  • Brake P21W
  • Indicator light PY 21W
  • Reflector
• Inputs/outputs: 4mm safety sockets
• Dimensions: 297 x 114 x 120 mm

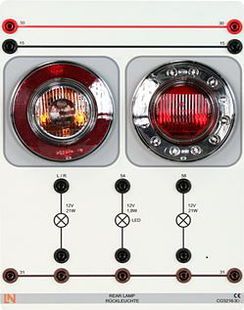

Tail Light Unit with LED Rear Light (Right)

Complete tail light unit with modern LED rear light and stipulated reflector

• Operating voltage: 12 V
• Operational elements: LED rear light 1.8W
  • Brake P21W
  • Indicator light PY 21W
  • Reflector
• Inputs/outputs: 4mm safety sockets
• Dimensions: 297 x 228 x 120 mm

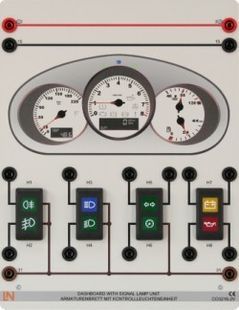

Warning Lights and Fuse Box

Dashboard model with warning lights

• Operating voltage: 12 V
• Warning lights: Dipped lights and main beam
  • Indicators
  • Fog lights
  • Rear fog lamps
  • Charge warning light
  • Oil level
  • Dashboard illumination
• Inputs/outputs: 4mm safety sockets
• Dimensions: 297 x 456 x 160 mm

Power Supply

Power Supply, 13.5 V, 45 A

The "Power supply" module is part of ´various training systems including the "Modular engine management" system. It provides power to various components in a similar to the way they are supplied in practice in a real engine by means of a 12 V battery. The module employs a 600 watt power unit which can supply a maximum current of 45 A at 13.5 V between its screw terminals. To protect the training system, a maximum current of 30 A can be tapped via the 4-mm safety sockets. This protective function is implemented by electronic monitoring of the 4mm safety sockets. Thanks to the high-resolution printing on the front panel, the module can immediately be identified as a typical car battery.



Technical highlights:

• Stable on-board network voltage of 13.5 volts
• Automatic cut-out without fuses
• Short-circuit protection
• Typical appearance of a vehicle battery thanks to high-resolution printed image of a starter battery
• Maximum current: 45 A

Technical details:

• Operating voltage: 90-264 V AC (47-63 Hz)
• ​Dimensions: 297 x 227 x 180 mm (HxWxD)
• Weight: 1.6 kg

Media



Interactive Lab Assistant: Automotive Lighting

The CarTrain course "Lighting for cars and commercial vehicles" represents the perfect supplement to the “Vehicle lighting” set. It explains in detail how the system is put into operation along with all the essential theoretical background regarding lighting in cars and commercial vehicles. Trainees learn how to work with the circuit diagrams for a lighting system and how to use them logically and efficiently as part of a maintenance or diagnostic procedure. Apart from putting a lighting system into operation, various diagnostic skills for locating problems are learned and various measurements are made on the system itself. Each section is concluded by a test of knowledge.



Sets:

The course makes reference to the following sets:

• Headlights (ALC 1.1)
• Additional lighting and signalling systems (ALC 1.2)
• Trailer lighting (ALC 1.3)
• CAN-bus enhancement (ALC 1.6)
• On-board network enhancement including daytime running lights (ALC 1.7)

Course contents:

The course features the following training contents:

• Use of circuit diagrams
• Printable circuit diagram for the entire lighting system
• Use of workshop order contracts
• Conventional switching and CAN-based control
• Comprehensive handling of lighting equipment
  • Dipped headlights
  • Headlights
  • Fog lamps
  • Daytime running lights
  • Parking lights
  • Sidelights
  • Brake lights
  • Rear lights
  • Rear fog lamps
  • Reversing lights
  • Indicators
  • Licence plate illumination
  • Interior lights
• Trailer lighting
• Headlight configuration
• Horn and light flashing system
• Troubleshooting (circuit diagram)

Please note that the "Static cornering lights" set is described in a separate course.


Measuring Instruments



Adapter BNC/2x4 mm Safety Sockets, Insulated

Adapter plug for connecting BNC connector to 4-mm safety sockets

• BNC plug, 2 insulated 4-mm safety sockets
• Contact rings and sockets for internal pin of BNC connector are made of gilded brass
• CAT II/1000 V

Test Lamp

Vehicle voltage tester. Due to its small current consumption of 1.5 mA, the CAR-CHECK tester is particularly well suited to finding faults with electronic components. Conventional test lamps often cause damage to these. Polarity indication via two LEDs.

• Nominal voltage range: 3...48 V
• Length of lead: 150 cm
• Weight: 0.2 kg

Multi 18 Digital Multimeter

Universal precision lab multimeter and temperature meter with IR interface for high-quality, universal measurement and testing in educational settings, power plants, process control installations etc.

• 4¾-digit multimeter; resolution: ±31,000 digits
• Measurement classification CATII-1000 V
• Can be connected to UniTrain-I system via IR interface
• Real-time RMS measurement TRMS
• Voltage and current measuring ranges (AC and DC): 300 mV-1000 V; 300 µA-10 A
• Decibel measurement
• Resistance ranges: 300 ohm-30 M ohm
• Capacitance measuring range 3 nF to 10,000 µF
• Frequency measuring range up to 100 k Hz, counter and stopwatch
• Special functions: ° C for temperature measurements using PT100/1000 thermocouple
• Continuity and diode testing
• Automatic range selection and battery shut-off, min./max. and data hold function
• Protection against high currents in the mA range for nominal voltage of 1000 V
• Safety fuse for all current measurement ranges (up to 10 A)
• Display with bar chart and backlighting
• Includes protective sleeve, measuring leads, 2 x spare fuses, 9 V battery, calibration certificate

Digital Dual Trace Storage Oscilloscope W. Colour Display, Incl. Probes 30 MHz

Digital storage oscilloscope with colour LCD display, high resolution, backlighting and USB port for transmission of large quantities of data at high data rates.

Technical data:

• Bandwidth 30 MHz/125 MS/s
• Maximum input voltage 400 V
• 8" TFT colour display
• USB port, USB flash disk, LAN, VGA
• Cursor function
• Five automatic measurement functions, storage and retrieval of traces
• Edge and video trigger function
• Safety specifications: EN 61010-1
• Supplied with accessories: 2 probes, mains lead, USB cable, software CD
• Dimensions: 350x157x120 mm (WxHxD)
• Weight: 1.0 kg

Accessories

Set of Circuit Breakers for Vehicles (10A/15A)

• Single-pole thermal circuit breaker for vehicles, slim format with coloured manual trip switch
• Reliable tripping response thanks to snap-action trip switch
• Tamper-proof rip interlock to prevent reactivation of the circuit till the fault is rectified
• Plugs into low-profile vehicle fuse box
• Nominal voltage 12V

The set comprises the following components:

• 1x 10A vehicle circuit breaker
• 1x 15A vehicle circuit breaker

Set of 4-mm Measurement Leads with Safety Connection Leads for ALC (Complete)

The set of leads is intended for wiring the entire lighting system of a vehicle and covers all additional adaptive lighting control (ALC) equipment options. The set of leads consists of the following components:



Safety connecting leads:

• 1x 4-mm safety connecting leads, colour: yellow/length: 50 cm
• 1x 4-mm safety connecting leads, colour: blue/length: 50 cm
• 10x 4-mm safety connecting leads, colour: red/length: 25 cm
• 05x 4-mm safety connecting leads, colour: red/length: 75 cm
• 10x 4-mm safety connecting leads, colour: black/length: 25 cm
• 30x 4-mm safety connecting leads, colour: black/length: 75 cm
• 15x 4-mm safety connecting leads, colour: black/length: 100 cm

Safety connection plugs:

• 20x safety connection plugs, colour: red
• 17x safety connection plugs, colour: brown
• 45x safety connection plugs, colour: black



Monitor Holder for Flat Screen Monitor of Weight up to 15kg / 33lbs

Pivoting monitor holder for attachment to aluminium profiles of furniture in the SybaPro range. Allows a monitor to be placed in the optimum position so that work and experiments are less tiring.

• Pivoting arm with two-part joint
• Quick-lock for adjustment to any height on extruded aluminium profile
• VESA fastening 7.5 x 7.5cm
• Includes VESA 75 (7.5x7.5) - VESA 100 (10x10) adapter
• 2 Cable clips
• Adequate carrying capacity 15 kg / 33 lbs
• TFT monitor can be turned parallel to the table edge
• Separation can be adjusted to anywhere between 105 and 480 mm

Additionally included:

Cable management set for installing cables along the profiles of the aluminium lab system furniture in the SybaPro range, consisting of:

• 3 Cross cable blocks for front and rear grooves of aluminium profile
• 3 Cross cable blocks for side grooves of aluminium profile
• 12 Cable ties
• 4 Aluminium cover profiles for covering and enabling wires to be run along the grooves of an aluminium profile

Additionally Recommended



Protection Cover for Three-Level Experiment Trolleys

Dust cover for three-level experiment trolleys

• For protecting equipment from dust and damp
• For keeping equipment out of sight (the cover must not be transparent, so is therefore opaque)
• Colour: matt dark grey with printed LN logo in orange)
• Material: nylon fabric with polyurethane coating
• High resistant to tearing, impregnated to be washable and waterproof

Trolley for Measurement Leads (Max. Length 100cm), for up to 320 (2x 160) Measurement Leads (100cm)

SybaPro mobile trolley for measurement leads

• Main pillar made of  35-mm extruded aluminium profile with four-groove symmetry
• 8 Identical grooves (3 on each side + 1 on each edge)
• Grooves accommodate industrially standardised mountings
• 4 Steerable casters, 2 with brakes
• 4 Cable racks, each with grooves to accommodate 40 leads
• Suitable for up to 320 (2x160) measurement leads
• Base frame with four legs and rigid steel cable racks featuring acid-proof epoxy-resin powder-coating approximately 80 µm thick, colour RAL 7047
• Dimensions: 640x400x1400 mm (WxDxH)
