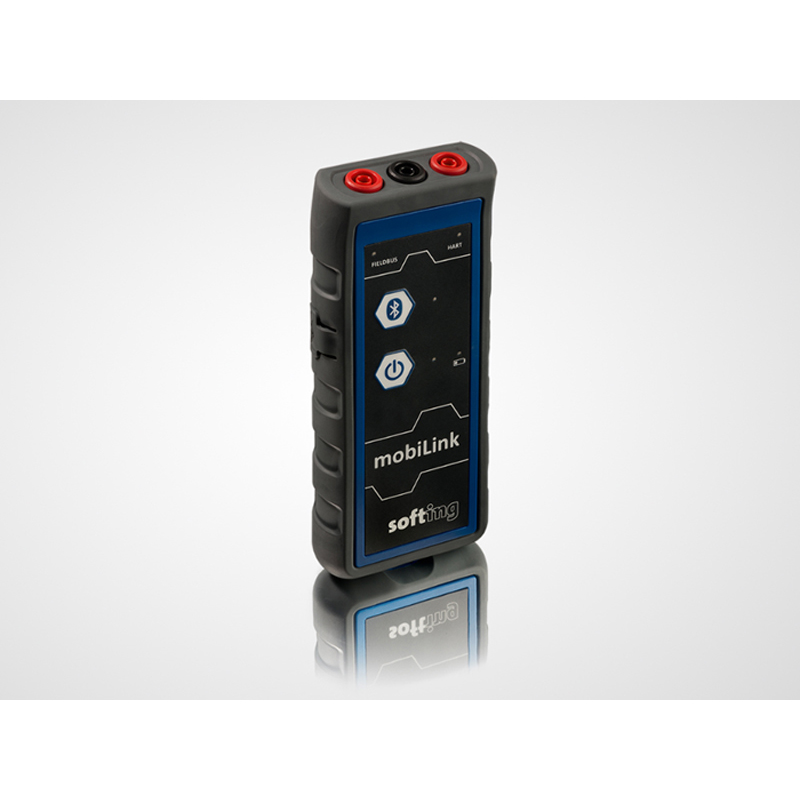

Description

Multi protocol operation

• HART Master, Foundation fieldbus Host and PROFIBUS PA Master included in one device

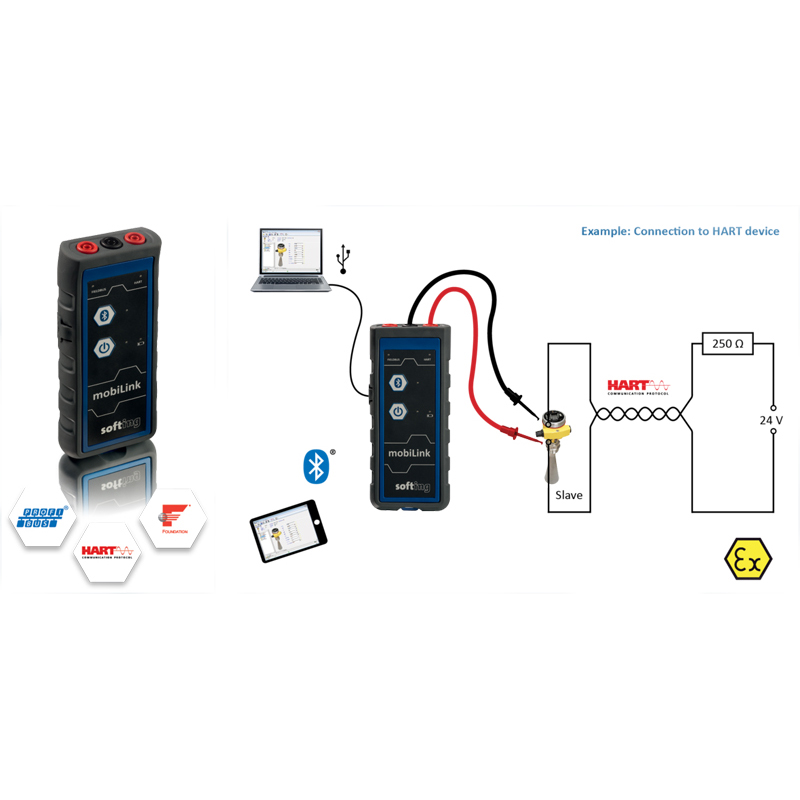

• Temporary attachment to fieldbus segments or HART loops for individual interaction with field devices
• Fully compliant protocol implementations allow for interference-free access to running plants

Host communication via Bluetooth or USB

• Built-in batteries and Bluetooth communication enable use of handheld host devices like smart phones and tablets
• USB interface for bench host operation

Support of FDT Frame Applications and major Engineering Tools

• PACTware FDT Frame Application and HART Communication DTM included
• Communication DTM for Foundation fieldbus and PROFIBUS PA (optional)
• Foundation fieldbus configuration tool (optional)
• Application Program Interface for integration into Engineering Systems

Suitable for use in hazardous areas

• IECEx and EX approval for Zone 1, NEC500 Cl. Div.1
• Suitable for connection to intrinsically safe circuits
• Suited for harsh environment

Technical Data

Supported Applications

• Endress+Hauser FieldCare (for HART, PROFIBUS PA, and FF devices)
• PactWare (for HART, PROFIBUS PA, and FF devices)
• ProComSol DevCom (for HART and FF devices)
• AMS Device Manager (for HART devices)

User Interface

• Power on/off button
• Bluetooth pairing button

• Fieldbus (Fieldbus mode)
• HART (HART mode)
• Bluetooth (pairing / active connection)
• Low battery
• Power on

Interfaces and Connectors

• Speed: USB 2.0 Full Speed
• Connector: USB Type-C
• Electrical: Non-intrinsically safe (do not use in hazardous areas)
• Supply: 5 V, 100 mA, Um = 253 V

• Dual mode (BT Classic and BLE)
• Frequency: 2.4 – 2.478 GHz
• Output power: up to +8 dBm

• Connection: 4 mm banana jacks (red/black, polarity must be observed)
• Physical layer: IEC 61158-2, Type 1
• Data rate: 31.25 Kbit/s (voltage mode)

• 10 mA (Bluetooth and standard USB mode)
• 18 mA (Fieldbus voltage > 9.5 V, USB mode – controlled by application for extended battery life)
• Fieldbus terminator: Not integrated

• Connection: 4 mm banana jacks (red/black)
• Physical layer: HART FSK compliant modem

Operation in Hazardous Areas

• Ex ia IIB, Ui = 30 V or FISCO field device

• Isolation:
  • 1500 VDC between USB and Fieldbus
  • 1500 VDC between USB and HART

IECEx Certification

• Ex ib [ia Gb] IIB (HW version 1.00)
• IIC (HW version 1.01), T4 Gb
• Ex ib [ia Da] IIIC T100°C Db

ATEX Certification

• II 2G Ex ib [ia Ga] IIB (HW version 1.00)
• IIC (HW version 1.01), T4 Gb
• II 2D Ex ib [ia Da] IIIC T100°C Db

Physical Properties

• Dimensions (L × W × D): 175 × 74 × 32 mm
• Weight: 330 g (including batteries)

Power Supply

• Battery: 3 × Alkaline (IEC-LR6), nominal voltage 1.5 V
• For hazardous areas:
  • Energizer E91 or Duracell Procell MN1500 only
  • Use of other batteries voids certification
• Fieldbus interface powered via bus

Operating Temperature

• -20°C to +50°C

Storage

• Store batteries in a dry environment at room temperature

Relative Humidity

• < 95% RH (non-condensing)

Protection Class

• IP54 (when USB port is covered with cap)

Certifications

Ex Approvals

• ATEX, IECEx, FM, PCEC, KC, PESO

EMC / Radio

• CE, FCC, SRRC, ETA, MIC, KC, TRA

RoHS

• UAE compliant
