Ethernet/IP to PROFIBUS PA Master Gateway

Direct Integration of PROFIBUS PA Segments into Ethernet/IP Control Systems

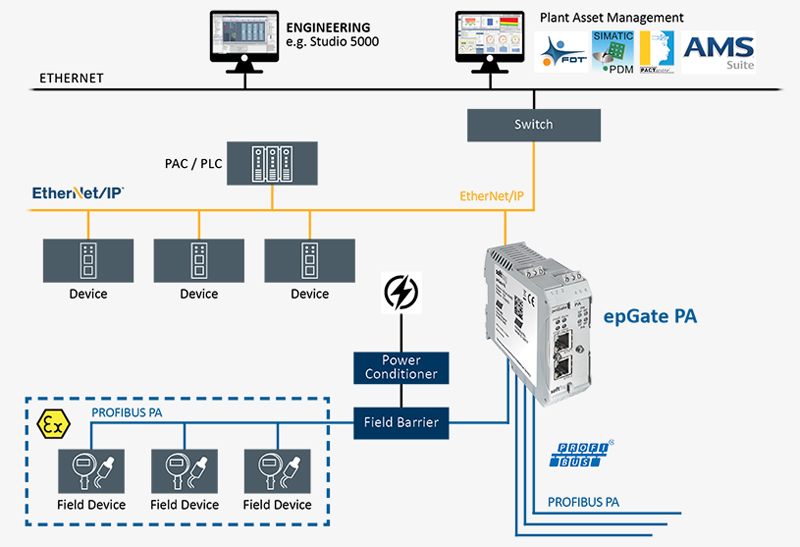

With epGate PA it is possible to integrate up to 4 PROFIBUS PA segments into Ethernet/IP. With epGate PA the engineering costs can be reduced since it re-uses existing power conditioners in technology upgrade projects. It enables configuration, parameterization and plant asset management using standard industry tools.


Overview

Key Component for Transition to State-of-the-Art Technology

• Simple replacement of installed PROFIBUS DP/PA segment couplers
• Re-use of existing PROFIBUS PA segments without requiring modification
• Support of common control systems e.g. Emerson DetlaV or Rockwell Control Logix
• Support of DLR for redundant communication in the ring with EtherNet/IP

Direct Connectivity to PROFIBUS Segments

• Acting as EtherNet/IP device (adapter) and PROFIBUS PA Master
• Support of up to 4 PROFIBUS PA segments

Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

• Supports major EtherNet/IP engineering tools such as Studio 5000 and AMS Device Manager
• Included CommDTM allowing use in FDT/DTM frame applications
• EDD-based device parametrization using Siemens Simatic PDMA

Order Information

Scope of Delivery

• Hardware: epGate PA Gateway
• Documentation: On Website

Order Numbers

• GCA-CL-024702: epGate PA, 2 channel, EtherNet/IP to PROFIBUS-PA Gateway. Supports up to 2 PROFIBUS PA segments (up to 32 PA devices).
• GCA-CL-024704: epGate PA, 4 channel, EtherNet/IP to PROFIBUS-PA Gateway. Supports up to 4 PROFIBUS PA segments (up to 64 PA devices).
• GCA-CL-024705: epGate PA (for STAHL carrier), EtherNet/IP to PROFIBUS PA Gateway. Supports up to 4 PROFIBUS PA segments (up to 64 PA devices). For reversed mounting position on STAHL backplane

Additional Products and Services

• LRL-DY-134501: dataFEED OPC Suite, Version 4.01 and higher, including all supported PLC protocols, support for OPC UA, access for any number of dataFEED OPC Tunnel Clients, for simultaneous access to a total of up to 100 OPC UA Servers, OPC Servers and OPC Tunnel Servers, and many more Functionalities such as Database and File Access, Data Exchange, Optimizer, Concentrator and Bridge
• GCA-CN-024708: epGate PB, EtherNet/IP to PROFIBUS Gateway. Supports 2 PA segments (up to 32 PA devices, MBP physical layer) and 1 PROFIBUS DP segment (RS485).
• GCA-CN-024706: epGate DP, EtherNet/IP to PROFIBUS DP-Gateway. Supports 1 PROFIBUS DP segment (RS485).
