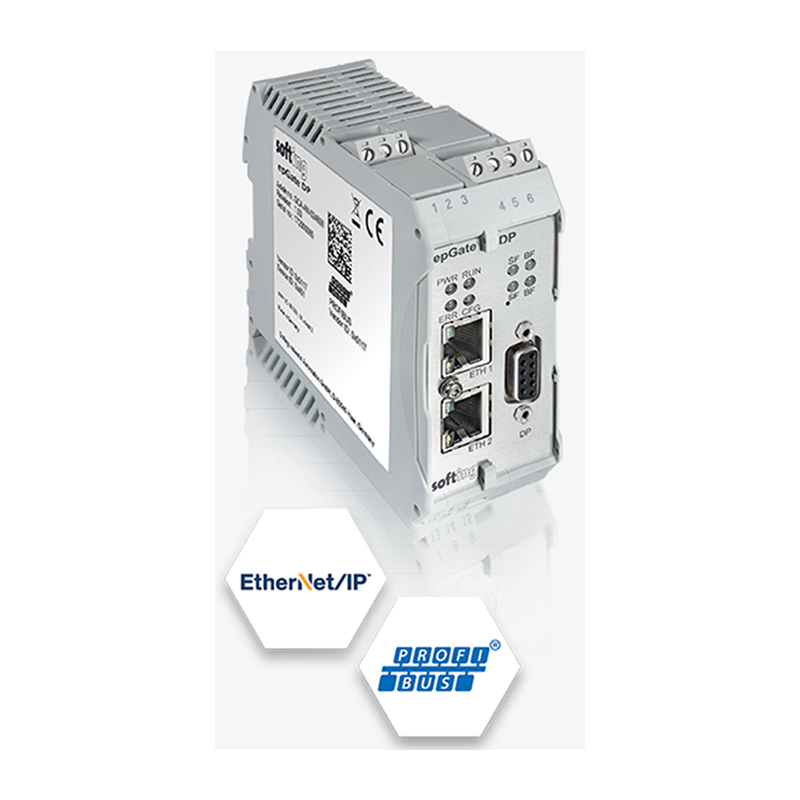

epGate DP

Part No.: MPST-epGate-DP
Ethernet/IP to PROFIBUS Gateway with DP Master Functionality

產品介紹

Ethernet/IP to PROFIBUS DP Master Gateway


Simple connection of PROFIBUS DP Slave Devices to Ethernet/IP Control Systems via Internal I/O Mapping

With epGate DP it is possible to integrate one PROFIBUS DP segment into Ethernet/IP control systems. With epGate DP the engineering costs can be reduced since it re-uses existing PROFIBUS DP segment without the requiring modification. It enables configuration, parameterization and plant asset management using standard industry tools.


Overview


Configuration, Parameterization and Plant Asset Management Using Standard Industry Tools

  • Supports major EtherNet/IP engineering tools such as Studio 5000 and AMS Device Manager
  • Included CommDTM allowing use in FDT/DTM frame applications
  • EDD-based device parametrization using Siemens Simatic PDM

Direct Connectivity to PROFIBUS Segments

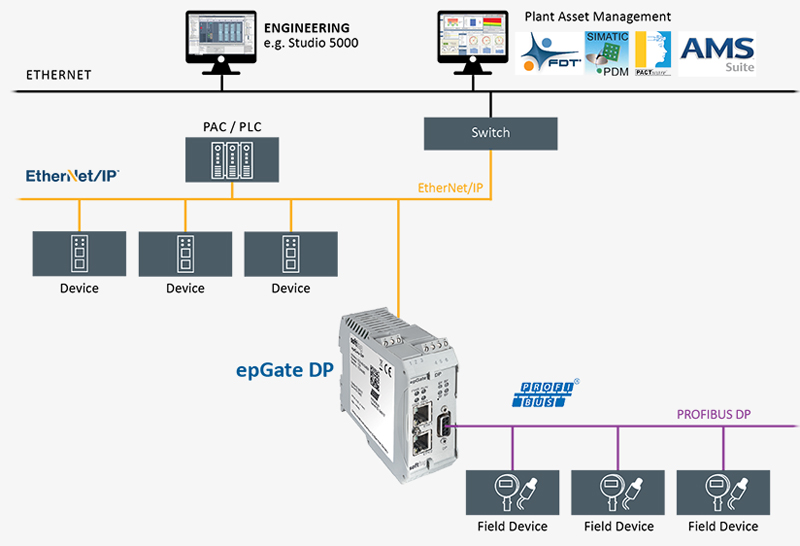

  • Single access point to PROFIBUS DP segment from EtherNet/IP networks
  • Acting as EtherNet/IP device (adapter) and PROFIBUS DP master
  • Support of one PROFIBUS DP segment

Key Component for Transition to State-of-the-Art Technology

  • Re-use of existing PROFIBUS segments without requiring modification
  • Support of common control systems e.g. Emerson DetlaV or Rockwell Control Logix
  • Support of DLR for redundant communication in the ring with EtherNet/IP

Order Information


Scope of Delivery

  • Hardware: epGate DP Gateway
  • Documentation: On Website

Order Numbers

  • GCA-CN-024706: epGate DP, EtherNet/IP to PROFIBUS DP Gateway. Supports 1 PROFIBUS DP segment (RS485).

Additional Products and Services

  • LRL-DY-134501: dataFEED OPC Suite, Version 4.01 and higher, including all supported PLC protocols, support for OPC UA, access for any number of dataFEED OPC Tunnel Clients, for simultaneous access to a total of up to 100 OPC UA Servers, OPC Servers and OPC Tunnel Servers, and many more Functionalities such as Database and File Access, Data Exchange, Optimizer, Concentrator and Bridge
  • GCA-CN-024708: epGate PB, EtherNet/IP to PROFIBUS Gateway. Supports 2 PA segments (up to 32 PA devices, MBP physical layer) and 1 PROFIBUS DP segment (RS485).
  • GCA-CL-024702: epGate PA, EtherNet/IP to PROFIBUS PA Gateway. Supports up to 2 PA segments (up to 32 PA devices).
  • GCA-CL-024704: epGate PA, EtherNet/IP to PROFIBUS PA Gateway. Supports up to 4 PA segments (up to 64 PA devices).
  • GCA-CL-024705: epGate PA (for STAHL carrier), EtherNet/IP to PROFIBUS PA Gateway. Supports up to 4 PA segments (up to 64 PA devices). For reverse installation position in STAHL backplane.
