Industrial Ethernet Tester

Part No.: MPST-Industrial-Ethernet-Tester
Easy-to-use Hand-held Tester for Universal Ethernet Diagnostics

產品介紹

Easy-to-use Hand-held Tester for Universal Ethernet Diagnostics

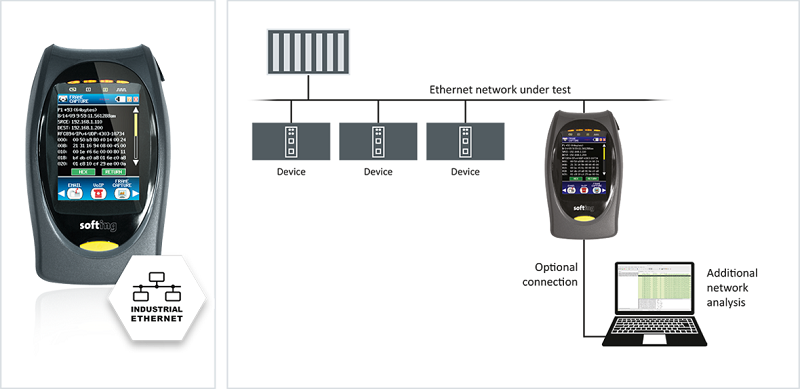

The Industrial Ethernet Tester BC-200-ETH is an industrial-strength troubleshooting instrument for cable testing, network and data analysis, and bandwidth assessment of Ethernet networks. It is an ideal tool for commissioning staff, system integrators and maintenance engineers.



Overview

Easy-to-use Tester

  • Color touchscreen
  • Intuitive and easy-to-use menu facilitating quick tests
  • Clear and easy-to-read display of test results
  • Expert mode for additional details and useful troubleshooting tips
  • Integrated help system

Economical Multifunctional Tool

  • Cable tester functionality addressing networks checks for short circuits, continuity and incorrect wiring, including location of existing cabling problems
  • Protocol analyzer functionality monitoring the network data communication
  • Configurable data filters for quick identification and correction of complex problems
  • Internal storage of up to 10,000 data packets for further analysis on PC
  • Test of installation robustness by injecting different levels of traffic load

Bandwidth Check for Robust Operation

  • Network performance check
  • Identification of missing bandwidth for performing real-time data exchange
  • Results sorted by protocols and network nodes
  • Performance of standardized stress test according RFC2455
  • Possible inclusion of results in installation certificates

Active Functionality for Troubleshooting

  • Testing the reachability of defined IP addresses (Ping)
  • Diagnosing route and time of packets to destination (Traceroute)
  • Searching for active network components (Discovery)



Order Information


Scope of Delivery

  • Hardware: Industrial Ethernet Tester (BC-200-ETH), power supply unit, patch cable, terminating plug, carrying case
  • Software: PC Software (on USB stick)
  • Documentation: Manual in English/German (on USB stick)

Order Numbers

  • DDA-JJ-004300: Industrial Ethernet Tester (BC-200-ETH)
