Analyzer PRO

Part No.: MPST-Analyzer-PRO
PC software for commissioning, acceptance testing and troubleshooting Industrial Ethernet Networks, like PROFINET Networks, including network tap to carry out the telegram analysis.

產品介紹

Software for Mobile Diagnostics and Acceptance Testing of Industrial Networks

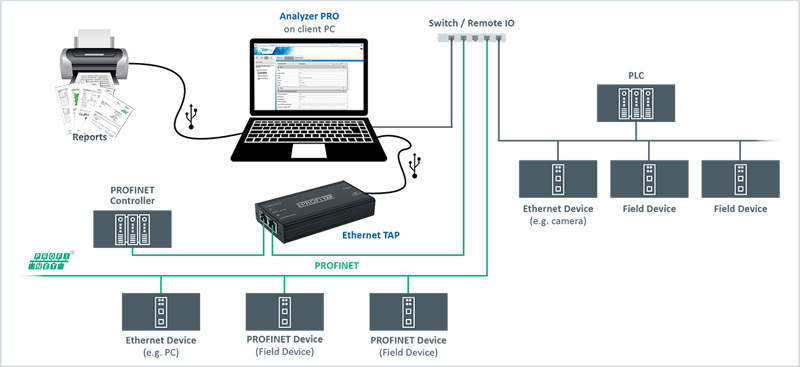

Analyzer PRO is a comprehensive software solution with a network tap for acceptance testing and efficient troubleshooting of Ethernet-based industrial communication. In a PROFINET environment, the mobile diagnostic tool generates standardized acceptance reports in accordance with the recommendations of PROFIBUS & PROFINET International (PI) and provides the basis for long-term trouble-free operation. The easy-to-use product is tailored to the needs of plant suppliers and maintenance personnel as well as service providers.



Overview


Comprehensive Functionality

  • Diagnostics list, error statistics, network statistics
  • Enhanced flexibility by supporting online as well as offline mode
  • Generation, analysis and handling of diagnostic data such as graphical topology, inventory list and reference measurements, also for standard Ethernet components (eg PCs, camera systems)

Automated Generation of Acceptance Test Documents

  • Time saving by automatically created test reports
  • Flexible definition of acceptance criteria
  • Transparent reporting by following PI guidelines

Tool Addressing Complete Plant Lifecycle

  • Data on network configuration, network communication and diagnostic messages
  • Error identification for effective troubleshooting (e.g. based on inventory list of network devices)
  • Chance to support exchange of general project information between end users, EPC contractors, system integrators and maintenance service providers
  • Seamless integration with Softing diagnostics permanent monitoring solutions TH SCOPE and TH LINK

Telegram analysis and measuring important parameters

  • Measurement of the Jitter, refresh interval and load ratio
  • Including network tap to carry out the analysis



Order Information



Scope of Delivery

  • Software: Analyzer PRO (Download from Softing website industrial.softing.com)
  • License: Hardware key
  • Hardware: Ethernet TAP for measuring jitter, load ratio and device update interval
  • Documentation: Installation manual, user manual, release note

Order Numbers

  • KPL-JY-003043: Analyzer PRO (hardware key)

Additional Products and Services

  • GEA-JN-003006: TH LINK PROFIBUS
  • GDA-JA-003034: TH LINK PROFINET
  • GDA-JY-003037: TH LINK Industrial Ethernet
  • LRA-JY-003028: TH LINK PC Industrial Ethernet
