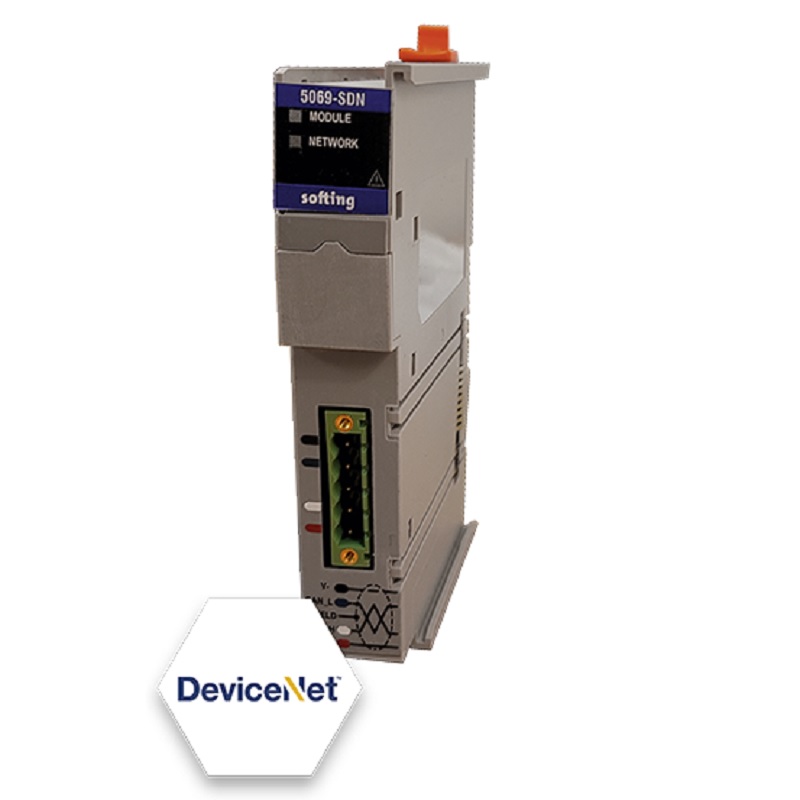

CompactLogix DeviceNet Scanner Module
- CompactLink HW-DN is an in-chassis Allen Bradley 5069 PLC module - DeviceNet scanner module
- Module is used to exchange information between 5380 controllers and DeviceNet devices such as sensors, actuators, adjustable frequency AC drives, and servo drives
- Module is used for control, configuration, and data collection
Overview

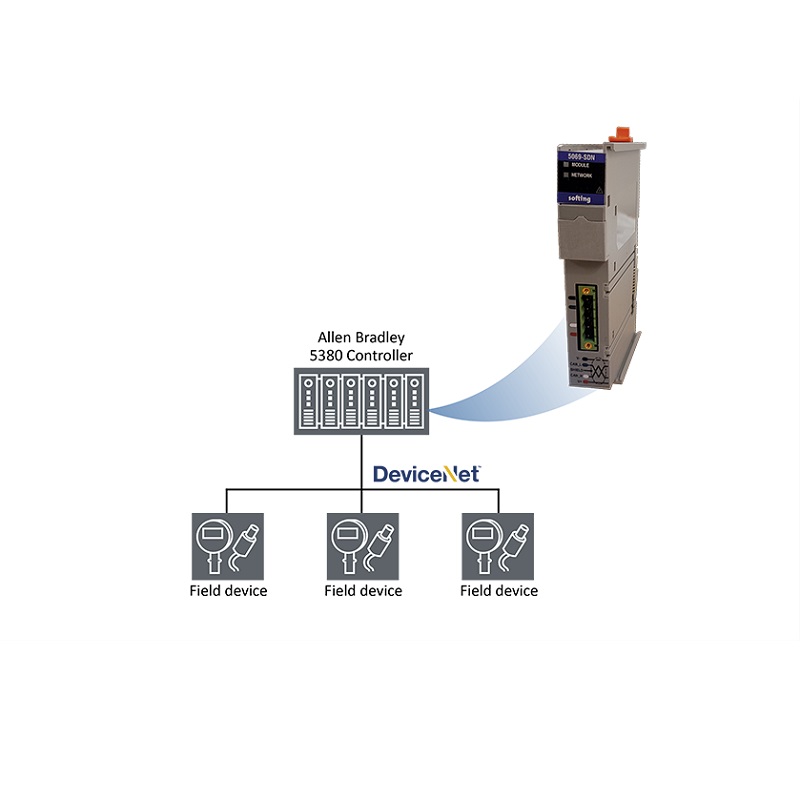

Connects CompactLogix to DeviceNet field devices
- Single wide, in-chassis Allen Bradley 5069 PLC module
- Connect a network of field devices without individual wiring directly to I/O module
- Perfect for migrating DeviceNet network from 1769 to 5380 Controllers
Message Types and Data Handling
- compactLink HW-DN supports the same message and data types as 1769-SDN
- Message types include strobed, polled, change-of state / cyclic
- Data types include read/write, input data such as sensor readings or status indicators, output data such as commands and control signals from controller to sensor
- Compatible with other scanners via slave mode
Rockwell Technology Partner Product
- Softing is a Rockwell Technology Partner and the compactLink HW-DN is an approved product in the Technology Partner Program
Easy Setup and Diagnostics
- Monitors and aides in troubleshooting the network
- Includes Auto Device Replacement (ADR) enabling automatic replacement/configuration of failed devices
- Power up self tests
- LEDs for module status and network status
Technical Data
| Enclosure type rating | None (open connector) |
|---|---|
| Supply voltage | 24 VDC (18 V - 32 V) |
| Supply current | 65 mA |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 144 mm (H) x 22 mm (W) x 105.42 mm (D) |
| Mounting | 5069 chassis |
| Operating temperature | 0...60 degrees C (32...140 degrees F) |
| Input/Output Power Rating | 1.5 Watts |
| Certifications | UL, CE, ODVA |
| Module LED |
Green = normal operation
Flashing green = standby
Off = module not powered
Flashing red = minor fault (recoverable error)
Solid red = major fault (non recoverable error)
|
| Network LED |
Green = normal operation
Flashing green = normal, idle, no connections established
Off = no power
Flashing red = minor fault, one or more devices has timed out
Solid red = Critical network failure. Deplicate DeviceNet node address detected
|
| Communication port | 1 DeviceNet open connector (black V-, blue CAN_L, shield, white CAN_H, red V+) |
| Data transfer speeds | 125k bps, 250k bps, 500k bps |
| Number of nodes supported | 63 |
| Solid wire size | 24 to 16 AWG |
Order Information
Scope of Delivery
- Hardware: compactLink HW-DN, 5069 in-chassis PLC module, DeviceNet scanner module
- Documentation: Manual
Order Numbers
-
SOFTING 5069-SDN - CompactLogix 5069 DeviceNet scanner module
