EthernetIP to M-Bus

Part No.: MPADFW-EthernetIP-to-M-Bus

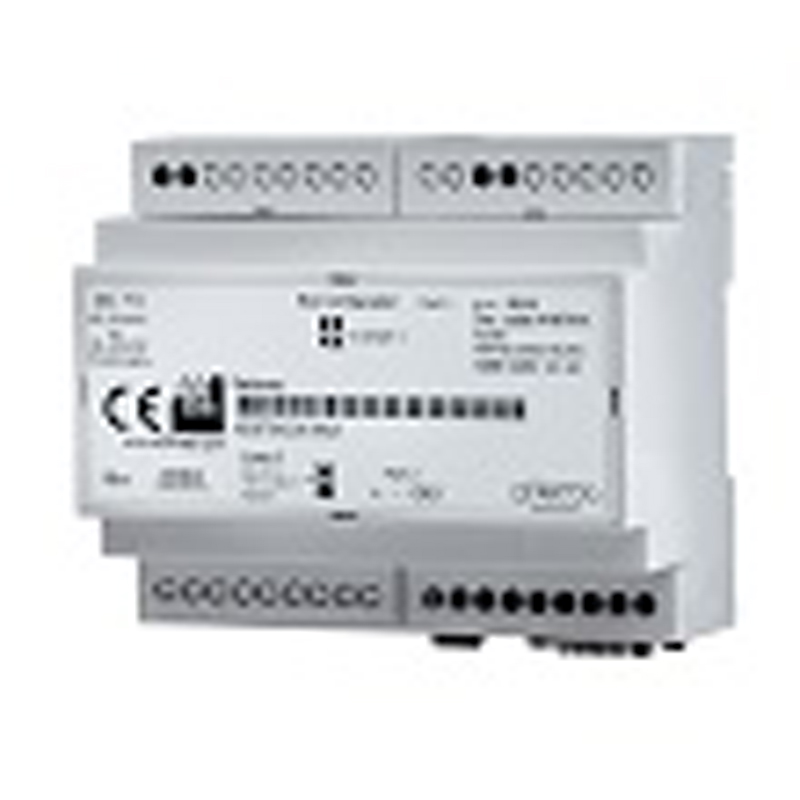

The HD67077-B2-xxx are M-Bus / EtherNetIP converters.

產品介紹

EtherNetIP / M-Bus - Converter

The HD67077-B2-xxx are M-Bus / EtherNetIP converters.

They allow to monitor some M-Bus meters (like Engelmann, Amber-Wireless, Maddalena, Siemens, exc. meters) with an EtherNetIP net (like an Allen-Bradley PLC exc).

On M-Bus side, the HD67077-B2 can manage up to 250 meters.



Series M-BUS from/to EtherNet/IP



HD67077-B2-20

EtherNet/IP / M-Bus - Converter




Ports 1xM-Bus; 1xEtherNet/IP
Data Rates M-Bus Up tp 38400 bps
Data Rates Ethernet 10/100 Base-T Autosensing
M-Bus Connector 2 way 5mm terminal block
Ethernet Connector RJ45
Power Spply 15...21V AC ; 18...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions
 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail Montage
Software SW67077

HD67077-B2-40

EtherNet/IP / M-Bus - Converter




Ports 1xM-Bus; 1xEtherNet/IP
Data Rates M-Bus Up tp 38400 bps
Data Rates Ethernet 10/100 Base-T Autosensing
M-Bus Connector 2 way 5mm terminal block
Ethernet Connector RJ45
Power Spply 15...21V AC ; 18...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions
 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail Montage
Software SW67077

HD67077-B2-80

EtherNet/IP / M-Bus - Converter




Ports 1xM-Bus; 1xEtherNet/IP
Data Rates M-Bus Up tp 38400 bps
Data Rates Ethernet 10/100 Base-T Autosensing
M-Bus Connector 2 way 5mm terminal block
Ethernet Connector RJ45
Power Spply 15...21V AC ; 18...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions
 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail Montage
Software SW67077

HD67077-B2-160

EtherNet/IP / M-Bus - Converter




Ports 1xM-Bus; 1xEtherNet/IP
Data Rates M-Bus Up tp 38400 bps
Data Rates Ethernet 10/100 Base-T Autosensing
M-Bus Connector 2 way 5mm terminal block
Ethernet Connector RJ45
Power Spply 15...21V AC ; 18...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions
 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail Montage
Software SW67077

HD67077-B2-250

EtherNet/IP / M-Bus - Converter




Ports 1xM-Bus; 1xEtherNet/IP
Data Rates M-Bus Up tp 38400 bps
Data Rates Ethernet 10/100 Base-T Autosensing
M-Bus Connector 2 way 5mm terminal block
Ethernet Connector RJ45
Power Spply 15...21V AC ; 18...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions
 71x60x95 (DxWxH)
Weight 200g approx
Mechanical Fixing 35mm DIN Rail Montage
Software SW67077



Series M-BUS from/to Ethernet



HD67030-B2-20

M-Bus / Ethernet - Converter ( Master M-Bus: up to 20 slaves )





Ports 1xM-Bus; 1xEthernet
Data Rates M-Bus Up to 38400 bps
Ethernet Protocol TCP
M-Bus Connector Terminal Block
Ethernet Connector RJ45
Power Supply 15...21V AC ; 18...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 106x58x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67030

HD67030-B2-40

M-Bus / Ethernet - Converter ( Master M-Bus: up to 40 slaves )





Ports 1xM-Bus; 1xEthernet
Data Rates M-Bus Up to 38400 bps
Ethernet Protocol TCP
M-Bus Connector Terminal Block
Ethernet Connector RJ45
Power Supply 15...21V AC ; 18...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 106x58x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67030_40_80_160_250

HD67030-B2-80

M-Bus / Ethernet - Converter ( Master M-Bus: up to 80 slaves )





Ports 1xM-Bus; 1xEthernet
Data Rates M-Bus Up to 38400 bps
Ethernet Protocol TCP
M-Bus Connector Terminal Block
Ethernet Connector RJ45
Power Supply 15...21V AC ; 18...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 106x58x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67030_40_80_160_250

HD67030-B2-160

M-Bus / Ethernet - Converter ( Master M-Bus: up to 160 slaves )





Ports 1xM-Bus; 1xEthernet
Data Rates M-Bus Up to 38400 bps
Ethernet Protocol TCP
M-Bus Connector Terminal Block
Ethernet Connector RJ45
Power Supply 15...21V AC ; 18...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 106x58x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67030_40_80_160_250

HD67030-B2-250

M-Bus / Ethernet - Converter ( Master M-Bus: up to 250 slaves )





Ports 1xM-Bus; 1xEthernet
Data Rates M-Bus Up to 38400 bps
Ethernet Protocol TCP
M-Bus Connector Terminal Block
Ethernet Connector RJ45
Power Supply 15...21V AC ; 18...35V DC
Operating Temperature -40ºC/+85ºC (-40ºF/+185ºF)
Dimensions 106x58x95 (DxWxH)
Weight 200g approx
Mechanical Fixing DIN Rail montage
Software SW67030_40_80_160_250



Power Supply Accessories



APW020

Power Supply for M-Bus Master device that supports up to 20 slaves




Input Voltage Range 110...240V AC
Mains Frequency 50/60Hz
Output Voltage 24VDC
Power Output 4W
Other Protections
Overcurrent Input Protection;
Overtension Input Protection;
Undertension Input Protection;
Overtemperature Protection
Mechanical Fixing 35mm DIN Rail mounting
Dimensions DxWxH 53x60x95 (DxWxH)
Weight 200g

APW040

Power Supply for M-Bus Master device that supports up to 40 slaves




Input Voltage Range 110...240V AC
Mains Frequency 50/60Hz
Output Voltage 24VDC
Power Output 6W
Other Protections
Overcurrent Input Protection;
Overtension Input Protection;
Undertension Input Protection;
Overtemperature Protection
Mechanical Fixing 35mm DIN Rail mounting
Dimensions DxWxH 53x60x95 (DxWxH)
Weight 200g

APW080

Power Supply for M-Bus Master device that supports up to 80 slaves




Input Voltage Range 110...240V AC
Mains Frequency 50/60Hz
Output Voltage 24VDC
Power Output 9W
Other Protections
Overcurrent Input Protection;
Overtension Input Protection;
Undertension Input Protection;
Overtemperature Protection
Mechanical Fixing 35mm DIN Rail mounting
Dimensions DxWxH 53x60x95 (DxWxH)
Weight 200g

APW160

Power Supply for M-Bus Master device that supports up to 160 slaves




Input Voltage Range 110...240V AC
Mains Frequency 50/60Hz
Output Voltage 24VDC
Power Output 18W
Other Protections
Overcurrent Input Protection;
Overtension Input Protection;
Undertension Input Protection;
Overtemperature Protection
Mechanical Fixing 35mm DIN Rail mounting
Dimensions DxWxH 53x60x95 (DxWxH)
Weight 200g

APW250

Power Supply for M-Bus Master device that supports up to 250 slaves




Input Voltage Range 110...240V AC
Mains Frequency 50/60Hz
Output Voltage 24VDC
Power Output 36W
Other Protections
Overcurrent Input Protection;
Overtension Input Protection;
Undertension Input Protection;
Overtemperature Protection
Mechanical Fixing 35mm DIN Rail mounting
Dimensions DxWxH 53x60x95 (DxWxH)
Weight 200g





Accessories


Order Code Description
APW020 Power Supply for M-Bus Master device that supports up to 20 Slaves
APW040 Power Supply for M-Bus Master device that supports up to 40 Slaves
APW080 Power Supply for M-Bus Master device that supports up to 80 Slaves
APW160 Power Supply for M-Bus Master device that supports up to 160 Slaves
APW250 Power Supply for M-Bus Master device that supports up to 250 Slaves



Benefits

  • Software for easy configurator
  • Designed for serius use
  • Very easy to configure
  • Low cost
  • Rail din mountable
  • Wide supply input range
  • Galvanic isolation
  • Industrial temperature range:  -30°C / 70°C (-22°F / 158°F)
