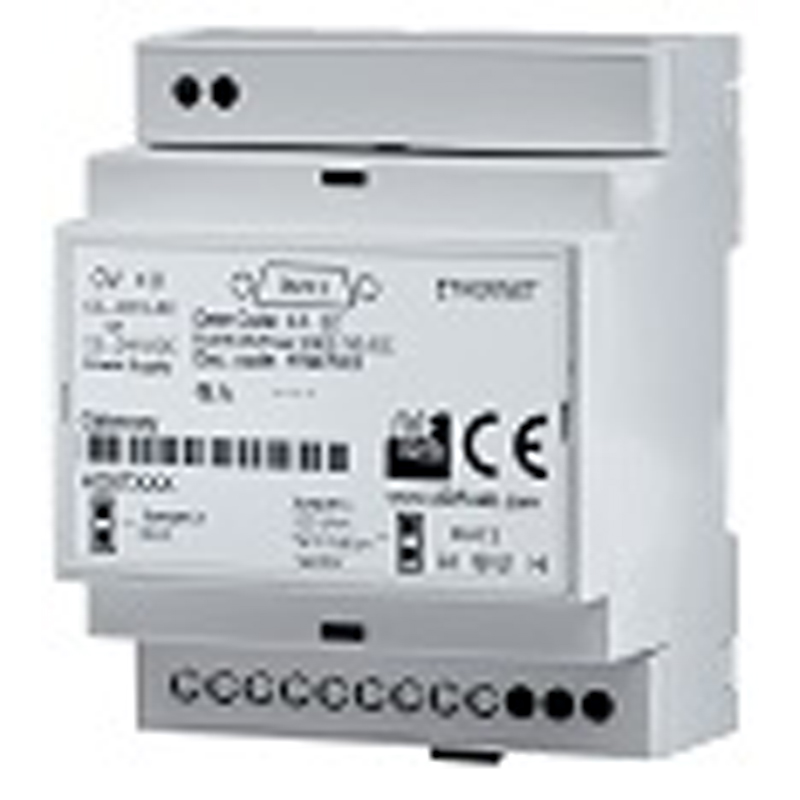

WiFi to Modbus
Part No.: MPADFW-WiFi-to-Modbus
This series of products allows to integrate a Modbus network with a WiFi net.
產品介紹
Modbus / WiFi - Converter
This series of products allows to integrate a Modbus network with a WiFi net.

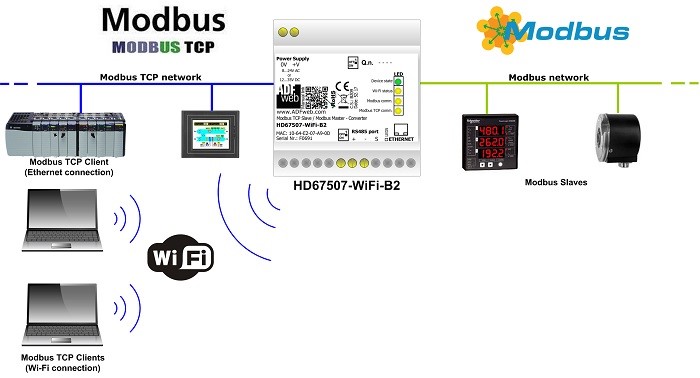

The HD67507-WiFi is a "Slave (server)" from the WiFi side and it is "Master" from the Modbus side (Rs232/Rs485).
So, you can connect a "Master (Client)" Modbus TCP over WiFi with one or more "slaves" Modbus RTU in order to exchange information between the Modbus TCP Master and the Modbus slaves.
The Modbus TCP connection is done over Wi-Fi. The order code is HD67507-WiFi-B2.
HD67507-WiFi-B2-232
Modbus TCP Slave / Modbus Master - Converter (Housing type: B, Terminal Blocks Connectors Modbus TCP Slave Port: Wi-Fi, Modbus Master Port RS232)
| Ports | 1xWi-Fi; 1xRS232; 1xEthernet | |
|---|---|---|
| Wi-Fi Protocol | Modbus TCP Slave | |
| RS232 Protocol | Modbus Master | |
| Data Rates Wi-Fi | 802.11b/g standard | |
| Data Rates Serials | Up to 115200 kbps | |
| Wi-Fi Connector | Integrated connector | |
| Serial Connector | 3way 5mm terminal block | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67507 | |
HD67507-WiFi-B2-485
Modbus TCP Slave / Modbus Master - Converter (Housing type: B, Terminal Blocks Connectors Modbus TCP Slave Port: Wi-Fi, Modbus Master Port RS485)
| Ports | 1xWi-Fi; 1xRS232; 1xEthernet | |
|---|---|---|
| Wi-Fi Protocol | Modbus TCP Slave | |
| RS232 Protocol | Modbus Master | |
| Data Rates Wi-Fi | 802.11b/g standard | |
| Data Rates Serials | Up to 115200 kbps | |
| Wi-Fi Connector | Integrated connector | |
| Serial Connector | 3way 5mm terminal block | |
| Power Supply Connector | 2way 5mm terminal block | |
| Power Supply | 8...19V AC ; 8...35V DC | |
| Operating Temperature | -40ºC/+85ºC (-40ºF/+185ºF) | |
| Dimensions | 71x60x95 (DxWxH) | |
| Weight | 200g approx | |
| Mechanical Fixing | DIN Rail montage | |
| Software | SW67507 | |
.jpg)
Accessories
| Order Code | Description |
|---|---|
| AC34011 | Isolated Converter 100..240V AC to 12V DC stabilized - AC/DC |
| AC34012 | Isolated Converter 100..240V AC to 24V DC stabilized - AC/DC |
| AC34131 | Patch Cross Cable Cat6 2 Meters |
